JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANELFIG.572A TIRE CARRIERFIG.580A FRONT FENDER PANELFIG.590A FRONT BODY PANELFIG.600A FLOOR PANELFIG.640A SIDE BODY PANELFIG.660A ROOF PANELFIG.717A FRONT BUMPERFIG.718A REAR BUMPERFIG.720A INSTRUMENT PANELFIG.730A VENTILATORFIG.732A HEATER UNITFIG.73BA AIR INLET BOXFIG.740A CONSOLE BOXFIG.741A FLOOR CARPETFIG.745A INTERIOR TRIMFIG.750A CAP/COVERFIG.755A FUEL LID OPENERFIG.760A ROOF LININGFIG.770A GARNISHFIG.774A SPLASH GUARDFIG.780A EMBLEMFIG.790A WINDSHIELDFIG.800A FRONT DOOR PANELFIG.805A BACK DOOR PANELFIG.810A FRONT DOOR REGULATORFIG.820A FRONT DOOR LOCKFIG.824A BACK DOOR LOCK (N_BACK DOOR CYLINDER)FIG.824B BACK DOOR LOCK (W_BACK DOOR CYLINDER)FIG.835A MIRROR/SUNVISORFIG.840A SEAT BELTFIG.847A FRONT SEATFIG.850A REAR SEATFIG.865A FUEL TANKFIG.893A TOOLFIG.950A AIR CONDITIONR SETFIG.964A A/C HARNESSFIG.966A A/C PIPINGFIG.972A COOLING UNITFIG.990A COMPRESSORFIG.992A COMPRESSOR MOUNTING

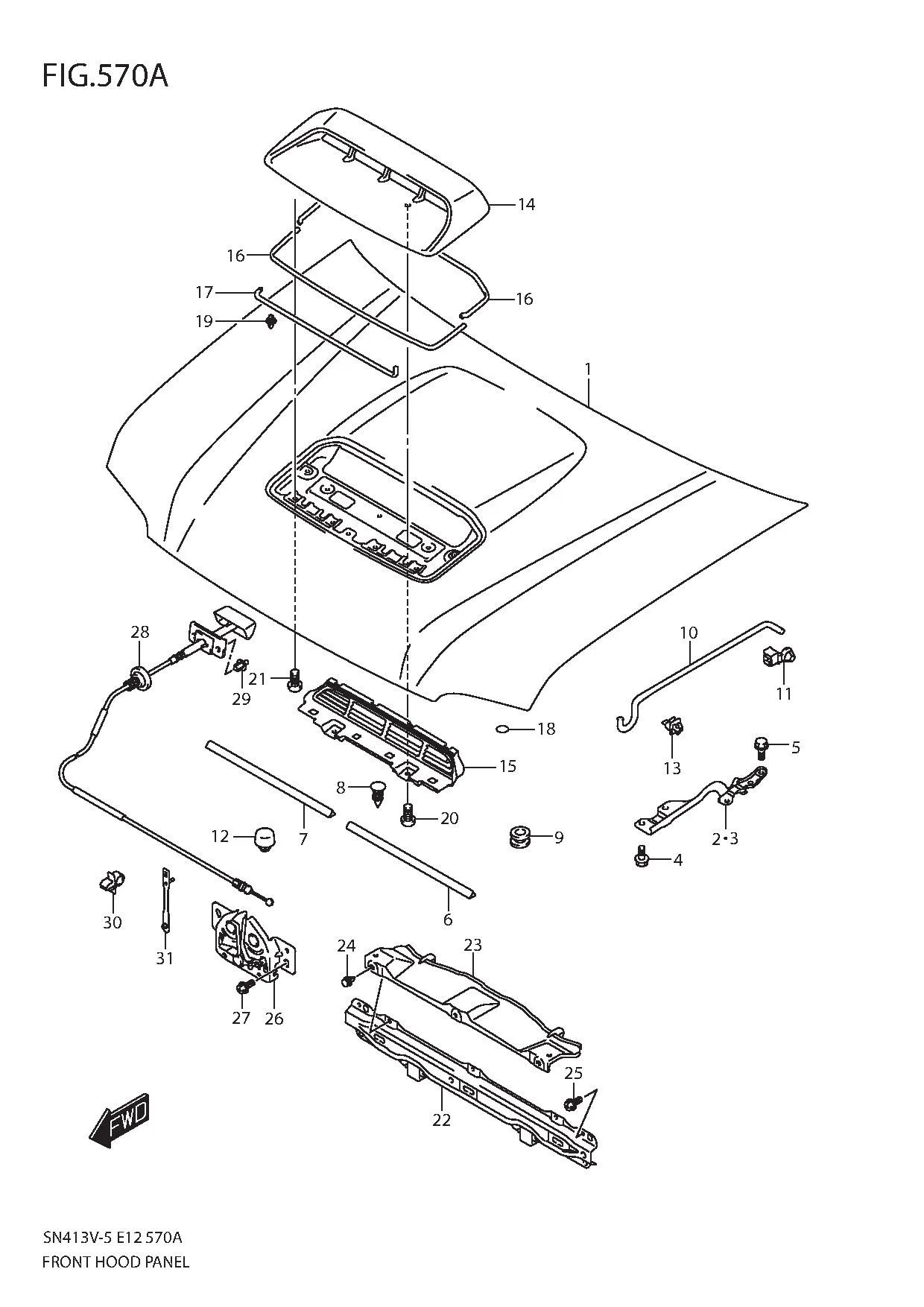

FIG.570A FRONT HOOD PANEL

FIG.570A FRONT HOOD PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 58300-57M00-000 PANEL ASSY, FRONT HOOD 1 Rp7.469.000
2 57410-57M00-000 HINGE, FRONT HOOD RH 1 Rp348.000
3 57420-57M00-000 HINGE, FRONT HOOD LH 1 Rp348.000
4 01551-0816C-000 BOLT 4 Rp13.500
5 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 4 -
6 72351-57M60-000 SEAL, HOOD FRONT 1 Rp207.500 USED WITH 72351-57M50
7 72351-57M50-000 SEAL, HOOD FRONT 1 Rp195.500 USED WITH 72351-57M60
8 09409-04304-000 CLIP 9 Rp18.000
9 72372-63J00-000
SUB: 72372B82000N000		 CUSHION 2 Rp8.000
10 72431-81A00-000 STAY, FRONT HOOD 1 Rp153.500
11 09209-14001-000 LINKAGE 1 Rp21.000
12 09321-10023-000
SUB: 09321B10023N000		 CUSHION, FR HOOD 1 Rp6.000
13 09403-07407-000 CLAMP 1 Rp18.000
14 72411-57M00-000 INTAKE, FRONT HOOD 1 Rp936.500
15 72412-57M00-000 COVER, FRONT HOOD INTAKE 1 Rp154.000
16 72413-57M00-000 SEAL, FR HOOD INTAKE FR 2 Rp64.000
17 72414-57M00-000 SEAL, FR HOOD INTAKE RR 1 Rp35.500
18 DISCONTINUE
SUB: 84761-50X50-000		 SEAL, COWL TOP PANEL 1 -
19 09409-09304-000 CLIP 1 Rp17.000
20 09132-05046-000 SCREW (5X12) 2 Rp13.500
21 09132-05046-000 SCREW (5X12) 6 Rp13.500
22 72320-57M00-000 MEMBER, FRONT BUMPER 1 Rp828.500
23 72360-57M00-000 COVER,1ST CROSSMEMBER FR 1 Rp260.000
24 09409-07340-000 CLIP 3 Rp17.500
25 02162-0616A-000 BOLT 4 Rp3.000
26 82110-81AA0-000 LATCH, HOOD 1 Rp557.000
27 01551-0616C-000 BOLT 2 Rp14.500
28 82160-76J10-000 CABLE, HOOD LATCH RELEASE 1 Rp371.000
29 09409M07L02-5PK
SUB: 09409M07308-5PK		 CLIP (BLACK) 2 Rp7.500
30 09403M04401-000 CLAMP 1 Rp4.500
31 09407-05403-000 CLAMP (L:88) 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
