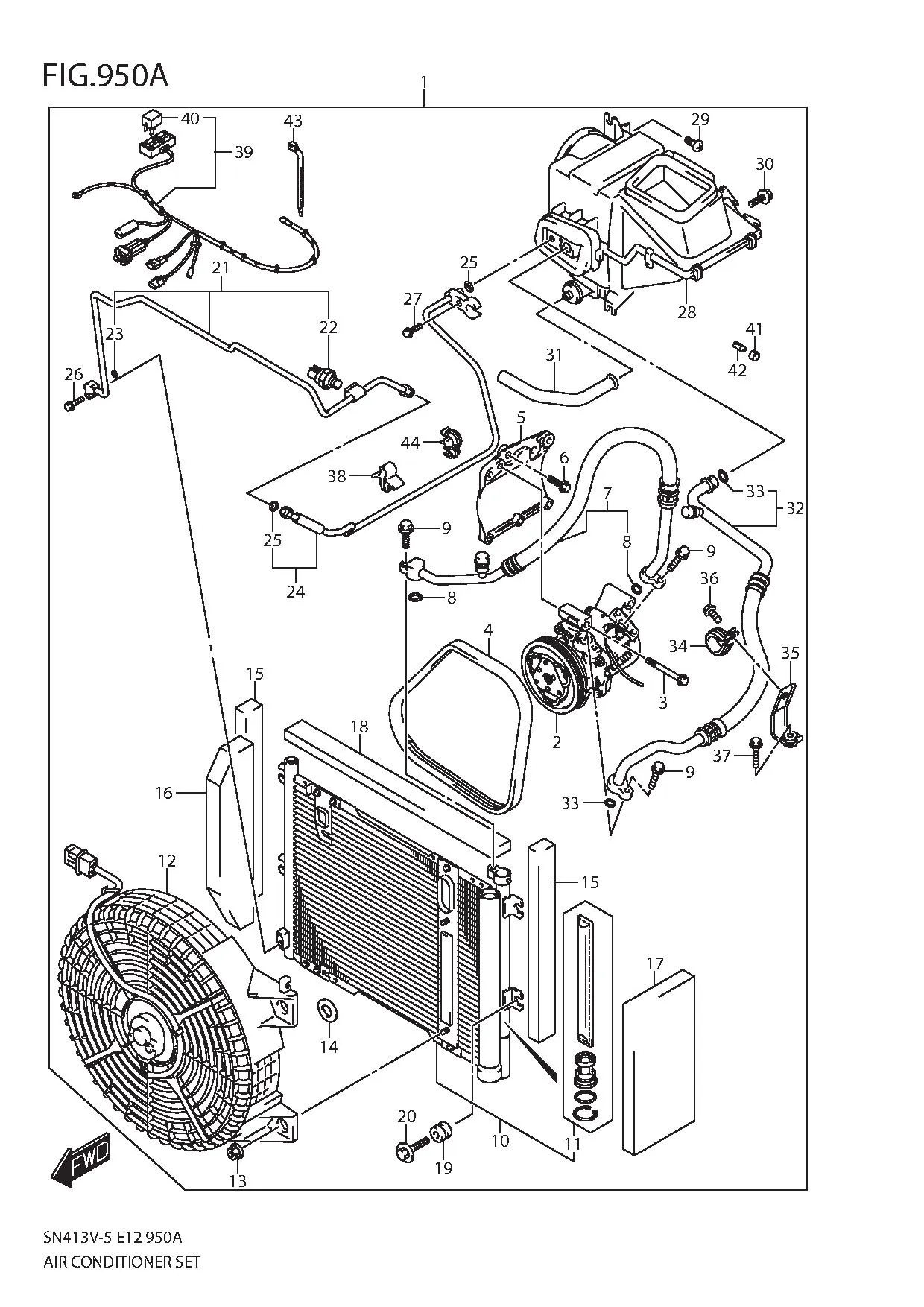

FIG.950A AIR CONDITIONR SET

No	No. Part	Description	Qty	Price Per Pcs
1	95000-81AE0-000	AIR CONDITIONER SET	1	Rp31.041.500
2	95200-77GB2-000	•COMPRESSOR ASSY	1	Rp17.344.000
3	01550-0865B-000 SUB: 01550-0865A-000	•BOLT	3	Rp8.500
4	95141-57M01-000 SUB: 95141-57M00-000	V-BELT (4PK 950)	1	Rp184.000
5	95111-69G00-000	•BRACKET, COMPRESSOR	1	Rp987.000
6	01550-0830A-000 SUB: 01550B0830AN000	•BOLT	4	Rp4.000
7	95720-57M00-000	•HOSE, DISCHARGE	1	Rp1.547.000
8	95895-50G00-000 SUB: 95895B50G00N000	••O RING (D:2.4,ID:10.8)	2	Rp12.500
9	01550-0620B-000 SUB: 01550B0620AN000	•BOLT	3	Rp3.500
10	95311-81A12-000	•CONDENSER	1	Rp5.337.000
11	95339-58J10-000	••DRYER KIT	1	Rp690.500
12	95560-81A01-000	•FAN ASSY, CONDENSER	1	Rp4.471.000
13	08316-1006A-000 SUB: 08316B1006AN000	•NUT	4	Rp2.000
14	08321-0110A-000	•LOCK WASHER	2	Rp14.000
15	95815-50E00-000	•PACKING, CONDENSER	2	Rp62.000
16	95812-81A10-000	•PACKING, CONDENSER	1	Rp97.000
17	95811-81A01-000	•PACKING, CONDENSER	1	Rp111.000
18	95813-81A00-000	•PACKING, RADIATOR	1	Rp66.000
19	95920-86400-000	•BUSH	4	Rp68.500
20	09136-06141-000	•SCREW (6X25)	4	Rp17.000
21	95732-81A61-000	•PIPE, CONDENSER OUTLET	1	Rp1.676.500
22	95526-50G30-000	••SWITCH, DUAL PRESSURE	1	Rp767.500
23	95891-50G00-000 SUB: 95891B50G00N000	••O RING (D:1.8,ID:6.7)	1	Rp12.500
24	95733-81A60-000	•PIPE, COOLING UNIT INLET	1	Rp601.500
25	95891-50G00-000 SUB: 95891B50G00N000	••O RING (D:1.8,ID:6.7)	2	Rp12.500
26	DISCONTINUE SUB: 01550B0625AN000	•BOLT	1	-
27	01550-0620B-000 SUB: 01550B0620AN000	•BOLT	1	Rp3.500
28	95400-81815-000	•COOLING UNIT	1	Rp9.069.500
29	03541-0516A-000 SUB: 03541B0516AN000	•SCREW	2	Rp3.500
30	02162-0616A-000	•SCREW	1	Rp3.000
31	95481-81A02-000	•HOSE, DRAIN	1	Rp256.000
32	95710-57M00-000	•HOSE, SUCTION	1	Rp1.271.000
33	95896-50G00-000 SUB: 95896B50G00N000	••O RING (D:2.4,ID:13.4)	2	Rp19.000
34	95771-70G00-000	•CLAMP, HOSE	1	Rp82.500
35	95781-83C30-000	•STAY, SUCTION HOSE	1	Rp286.500
36	01550-0612B-000	•SCREW	1	Rp16.500
37	DISCONTINUE SUB: 01550B0625AN000	•BOLT	1	-
38	09403-08406-000	•CLAMP	2	Rp22.500
39	95531-81A60-000	•HARNESS, ENGINE ROOM	1	Rp2.186.000
40	38860-76F01-000 SUB: 38860B76F01N000	••RELAY	2	Rp47.000
41	95521-84G00-000	•KNOB, A/C SW	1	Rp66.500
42	95522-84G00-000	•INDICATOR, A/C SW	1	Rp51.000
43	09407-30401-000	•CLAMP (L:300)	1	Rp25.000
44	DISCONTINUE SUB: 95762-75F00L000	•CLAMP, AIR CON PIPE	1	-
