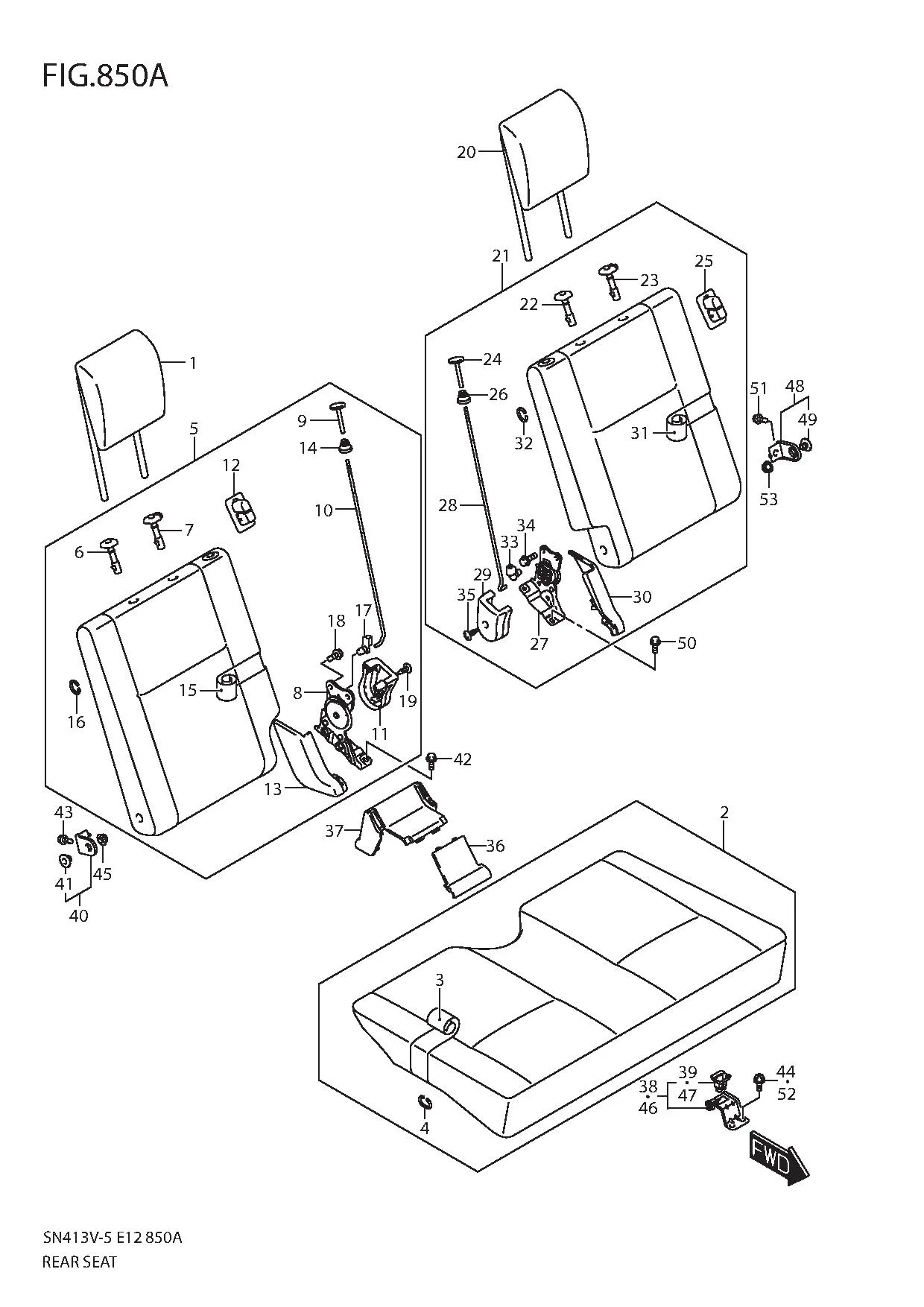

FIG.850A REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	86401-57M50-S7S	HEADRESTRAINT ASSY (BLACK)	1	Rp1.061.500
2	87101-57M60-BFT	CUSHION ASSY, RR SEAT (GRAY/BLACK)	1	Rp5.409.000
3	87180-57M60-BFT	•TRIM, REAR CUSHION (GRAY/BLACK)	1	Rp2.122.000
4	09387-19001-000 SUB: 09387B19001N000	•RING	0	Rp9.000
5	87301-57MA0-BFT	BACK ASSY, REAR SEAT RH (GRAY/BLACK)	1	Rp6.710.000
6	DISCONTINUE SUB: 85341-63J10-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
7	DISCONTINUE SUB: 85840-63J10-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
8	87210-57M00-000	•RECLINING ASSY, REAR BACK RH	1	Rp710.500
9	87211M74G10-P4Z SUB: 87211-74G10-P4Z	•KNOB (GRAY)	1	Rp6.000
10	87215-76JA0-000	•ROD, REAR RECLINING RH	1	Rp113.500
11	87221-81A00-P4Z	•COVER, REAR BACK SIDE RH (GRAY)	1	Rp191.000
12	87225-53JB0-P4Z	•COVER, TETHER ANCHOR (GRAY)	1	Rp87.500
13	87244-57M50-P4Z	•COVER, REAR RCLNG LOWER RH (GRAY)	1	Rp44.000
14	87319-80G00-000 SUB: 87319B80G00N000	•SILENCER, REAR RECLINING ROD	1	Rp30.500
15	87380-57M50-BFT	•TRIM, REAR BACK RH (GRAY/BLACK)	1	Rp2.112.000
16	09387-19001-000 SUB: 09387B19001N000	•RING	2	Rp9.000
17	09403-04306-000	•CLAMP	1	Rp24.000
18	01550-1020A-000	•BOLT	2	Rp21.000
19	03241-0512A-000 SUB: 03241B0512AN000	•SCREW	1	Rp3.500
20	86401-57M50-S7S	HEADRESTRAINT ASSY (BLACK)	1	Rp1.061.500
21	87302-57MA0-BFT	BACK ASSY, REAR SEAT LH (GRAY/BLACK)	1	Rp6.710.000
22	DISCONTINUE SUB: 85341-63J10-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
23	DISCONTINUE SUB: 85840-63J10-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
24	87211M74G10-P4Z SUB: 87211-74G10-P4Z	•KNOB, REAR BACK (GRAY)	1	Rp6.000
25	87225-53JB0-P4Z	•COVER, TETHER ANCHOR (GRAY)	1	Rp87.500
26	87319-80G00-000 SUB: 87319B80G00N000	•SILENCER, REAR RECLINING ROD	1	Rp30.500
27	87710-57M00-000	•RECLINING ASSY, REAR BACK LH	1	Rp710.500
28	87715-76JA0-000	•ROD, REAR RECLINING LH	1	Rp113.500
29	87721-81A00-P4Z	•COVER, REAR BACK SIDE LH (GRAY)	1	Rp191.000
30	87744-57M50-P4Z	•COVER, REAR RCLNG LOWER LH (GRAY)	1	Rp41.000
31	87880-57M50-BFT	•TRIM, REAR BACK LH (GRAY/BLACK)	1	Rp2.112.000
32	09387-19001-000 SUB: 09387B19001N000	•RING	2	Rp9.000
33	09403-04306-000	•CLAMP	1	Rp24.000
34	01550-1020A-000	•BOLT	2	Rp21.000
35	03241-0512A-000 SUB: 03241B0512AN000	•SCREW	1	Rp3.500
36	87285-57M00-P4Z	COVER, REAR SEAT CTR FR (GRAY)	1	Rp73.000
37	87286-57M50-P4Z	COVER, REAR SEAT CTR RR (GRAY)	1	Rp68.500
38	87410-81A00-000	BRACKET, REAR CUSHION	1	Rp165.500
39	87460-76G11-000 SUB: 87460-76G10-000	•HOOK, REAR CUSHION	1	Rp39.000
40	87850-81A00-000	HINGE, REAR SEAT BACK	1	Rp131.500
41	87291-81A00-000	•BUSH, REAR SEAT BACK HINGE	1	Rp58.000
42	01551-1020A-000	BOLT	2	Rp18.000
43	01551-1020A-000	BOLT	1	Rp18.000
44	01550-0612B-000	SCREW	2	Rp16.500
45	08316-1008A-000 SUB: 08316B1008AN000	NUT	1	Rp3.500
46	87410-81A00-000	BRACKET, REAR CUSHION	1	Rp165.500
47	87460-76G11-000 SUB: 87460-76G10-000	•HOOK, REAR CUSHION	1	Rp39.000
48	87850-81A00-000	HINGE, REAR SEAT BACK	1	Rp131.500
49	87291-81A00-000	•BUSH, REAR SEAT BACK HINGE	1	Rp58.000
50	01551-1020A-000	BOLT	2	Rp18.000
51	01551-1020A-000	BOLT	1	Rp18.000
52	01550-0612B-000	SCREW	2	Rp16.500
53	08316-1008A-000 SUB: 08316B1008AN000	NUT	1	Rp3.500
