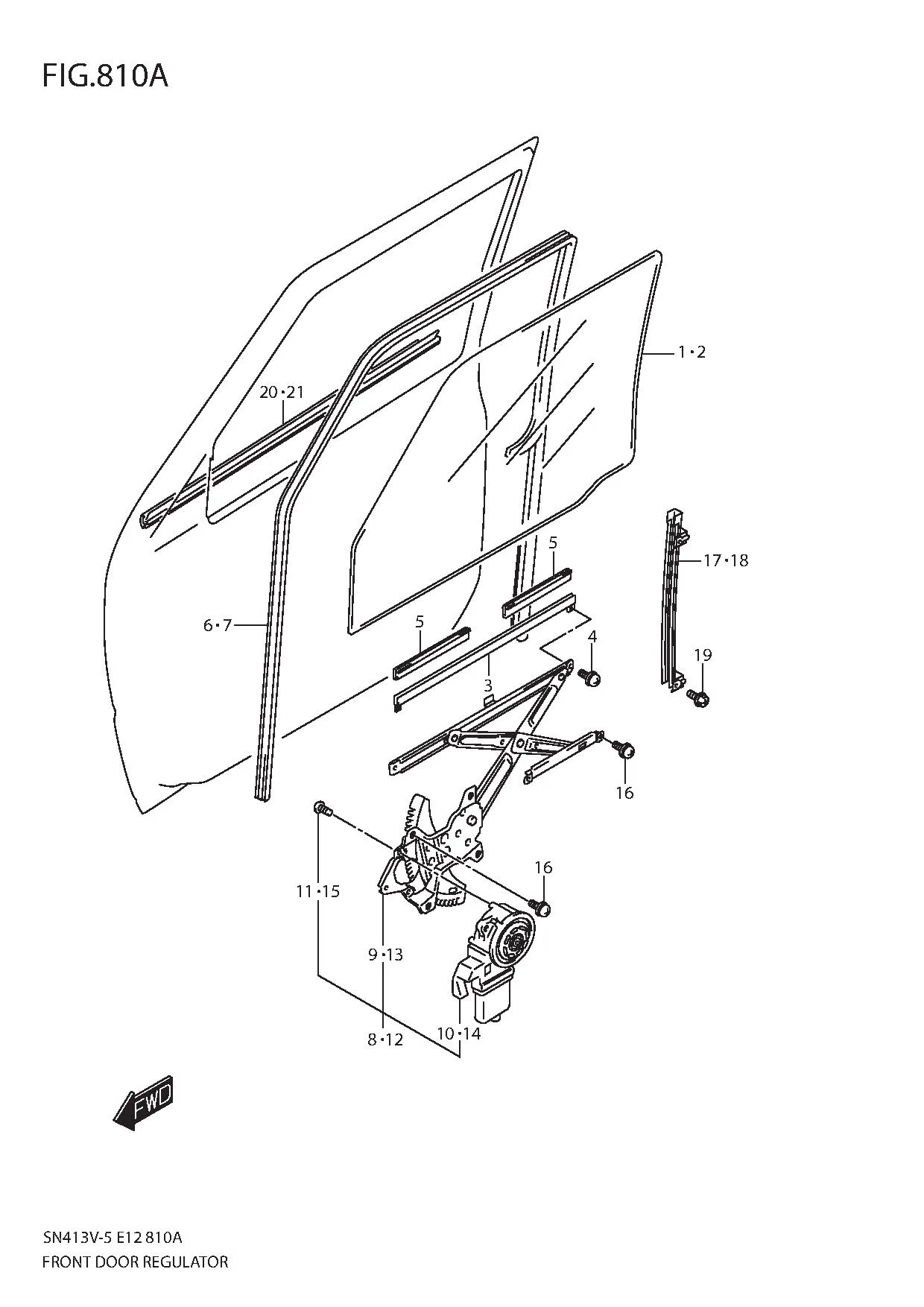

FIG.810A FRONT DOOR REGULATOR

FIG.810A FRONT DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 84531-81A12-000 GLASS, FR DR WINDOW RH (UV CUT) 1 Rp4.139.500 DISCRIMINATING MARK:UVS
1-1 84531-81A02-000 GLASS, FR DR WINDOW RH 1 Rp3.863.500
2-1 84536-81A02-000 GLASS, FR DR WINDOW LH 1 Rp3.863.500
2-2 84536-81A12-000 GLASS, FR DR WINDOW LH (UV CUT) 1 Rp4.139.500 DISCRIMINATING MARK:UVS
3 DISCONTINUE
SUB: 83610-60B00-000		 CHANNEL, GLASS BOTTOM 2 -
4 02112M7612A-000 SCREW 4 Rp5.500
5 83691-60A00-000 RUBBER, GLASS BOTTOM CHANNEL 4 Rp37.000 L:250->180
6 83661-81A02-000 RUN, FR DR GLASS RH 1 Rp988.500
7 83662-81A02-000 RUN, FR DR GLASS LH 1 Rp988.500
8 83401-81A10-000 REGULATOR ASSY, FR WINDOW RH 1 Rp4.965.000
9 83410-81A10-000 •REGULATOR, FR WINDOW RH 1 Rp1.144.000
10 83430-81A10-000 •MOTOR ASSY, FR WINDOW RGLTR R 1 Rp3.100.500
11 09139-05063-000 •SCREW (5X11) 3 Rp16.000
12 83402-81A10-000 REGULATOR ASSY, FR WINDOW LH 1 Rp4.965.000
13 83420-81A10-000 •REGULATOR, FR WINDOW LH 1 Rp1.144.000
14 83460-81A10-000 •MOTOR ASSY, FR WINDOW RGLTR L 1 Rp3.100.500
15 09139-05063-000 •SCREW (5X11) 3 Rp16.000
16 02112M7612A-000 SCREW 10 Rp5.500
17 81730-81A00-000 SASH, FR DR REAR RH 1 Rp252.000
18 81740-81A00-000 SASH, FR DR REAR LH 1 Rp252.000
19 01550-0612B-000 SCREW 4 Rp16.500
20 83810-81A00-000 WEATHERSTRIP, FR DR OUT RH 1 Rp695.000
21 83820-81A00-000 WEATHERSTRIP, FR DR OUT LH 1 Rp695.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
