JIMNY 2017

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73BA AIR INLET BOX FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A CAP/COVER FIG.755A FUEL LID OPENER FIG.760A ROOF LINING FIG.770A GARNISH FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.824A BACK DOOR LOCK (N_BACK DOOR CYLINDER)FIG.824B BACK DOOR LOCK (W_BACK DOOR CYLINDER)FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.847A FRONT SEAT FIG.850A REAR SEAT FIG.865A FUEL TANK FIG.893A TOOL FIG.950A AIR CONDITIONR SET FIG.964A A/C HARNESS FIG.966A A/C PIPING FIG.972A COOLING UNIT FIG.990A COMPRESSOR FIG.992A COMPRESSOR MOUNTING

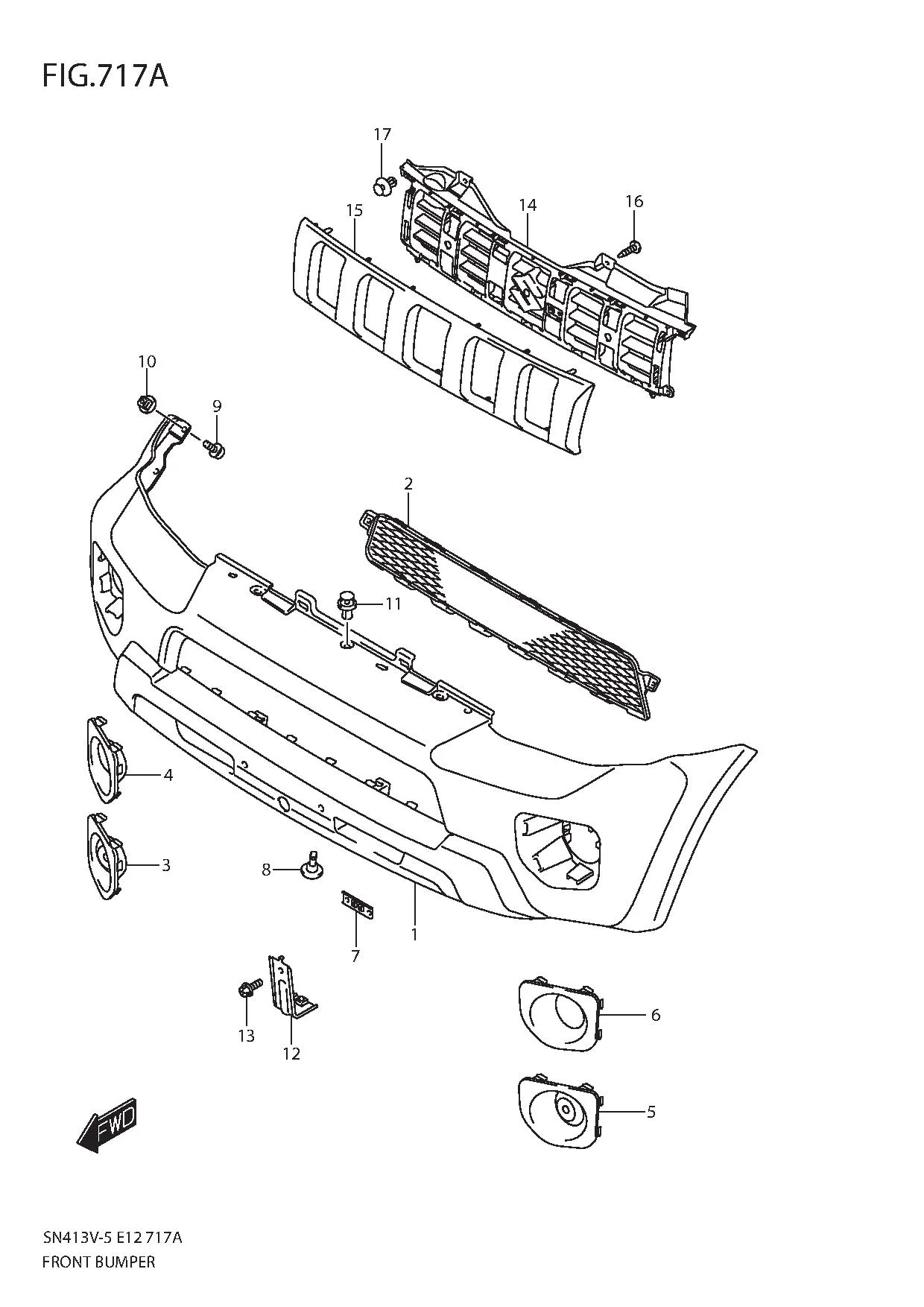

FIG.717A FRONT BUMPER

FIG.717A FRONT BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711-57M00-CAF	BUMPER, FRONT (PRIMARY COAT)	1	Rp7.933.500	PAINT TO MATCH
2	71718-57M00-5PK	NET, FRONT BUMPER (BLACK)	1	Rp647.500
3	71751-57M00-5PK	COVER, FR FOG LAMP HOLE RH (BLACK)	1	Rp133.500	N_FR_FOG
4	71751-57M10-5PK	BEZEL, FRONT FOG LAMP RH (BLACK)	1	Rp732.500	W_FR_FOG
5	71761-57M00-5PK	COVER, FR FOG LAMP HOLE LH (BLACK)	1	Rp133.500	N_FR_FOG
6	71761-57M10-5PK	BEZEL, FRONT FOG LAMP LH (BLACK)	1	Rp732.500	W_FR_FOG
7	DISCONTINUE SUB: 71771-56B00-000	RETAINER, FR LICENSE PLATE	2	-
8	09122-66007-000	SCREW (6X14)	5	Rp19.500
9	09132-06022-000	SCREW (6X20)	2	Rp23.000
10	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
11	09409-07340-000	CLIP	3	Rp17.500
12	71481-81A00-000	BRACKET, FR BUMPER LOWER CTR	1	Rp85.500
13	02162-0616A-000	SCREW	1	Rp3.000
14	72111-57M00-5PK	GRILLE, RADIATOR (BLACK)	1	Rp842.000
15	72112-57M10-000	GARNISH, RADIATOR GRILLE	1	Rp2.101.500
16	03541-0516A-000 SUB: 03541B0516AN000	SCREW	5	Rp3.500
17	09409-07340-000	CLIP	3	Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
