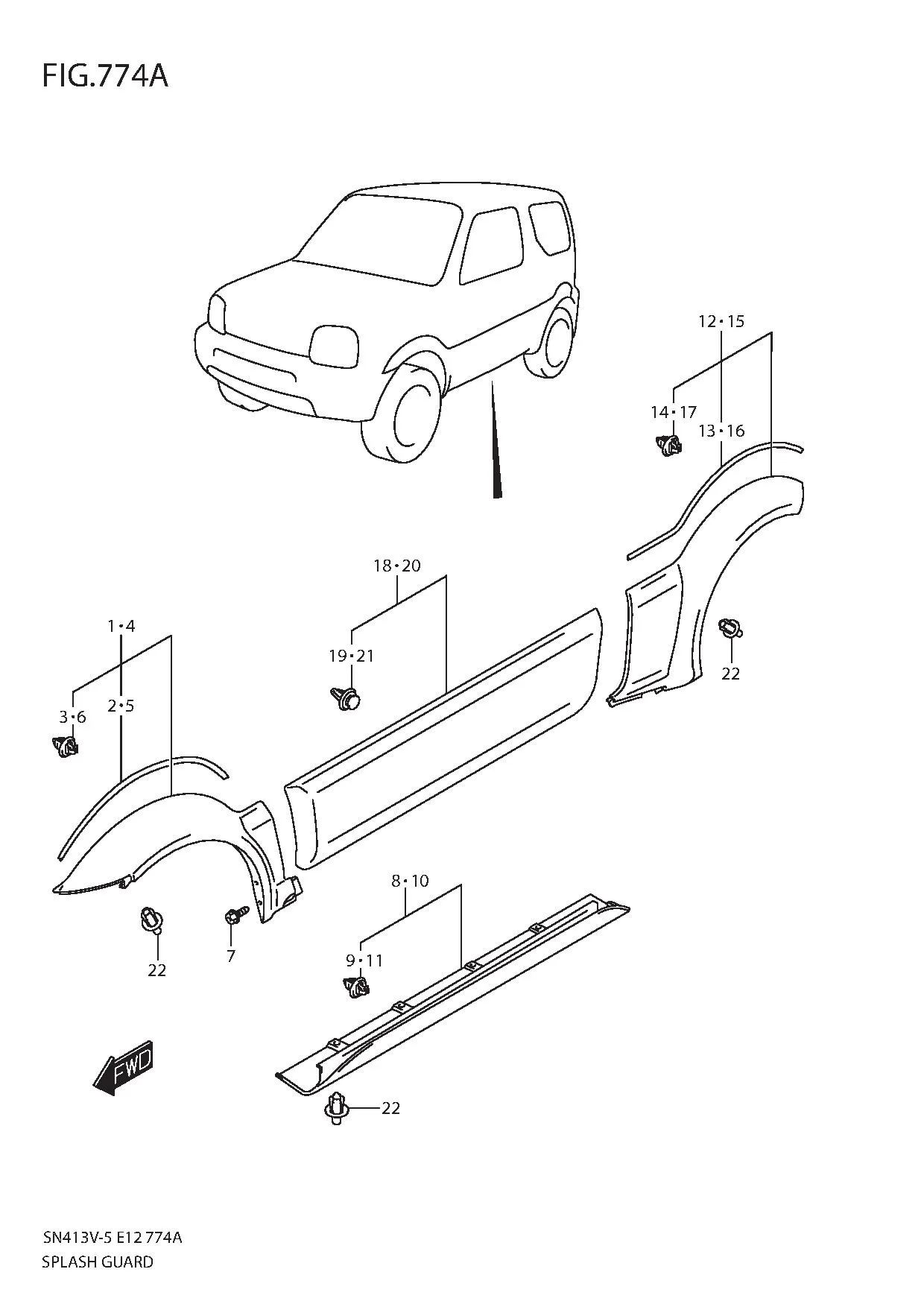

FIG.774A SPLASH GUARD

FIG.774A SPLASH GUARD
No No. Part Description Qty Price Per Pcs Remarks
1-2 77530-81A00-GKG GUARD, FR SPLASH RH (GRAY) 1 Rp5.158.000 BODY COLOR:ZMA
1-3 77530-81A00-GZ5 GUARD, FR SPLASH RH (BLACK) 1 Rp5.158.000 BODY COLOR:ZJ3
1-4 77530-81A00-A4Y GUARD, FR SPLASH RH (KHAKI/BLACK) 1 Rp5.158.000 BODY COLOR:ZVD
1-5 77530-81A00-26U GUARD, FR SPLASH RH (WHITE) 1 Rp5.158.000 BODY COLOR:26U
1-6 77530-81A00-Z2S GUARD, FR SPLASH RH (SILVER) 1 Rp5.158.000 BODY COLOR:Z2S
1-7 77530-81A00-AMF GUARD, FR SPLASH RH (BROWN/BLACK) 1 Rp5.158.000 BODY COLOR:ZUF
1-1 77530-81A00-ZVC GUARD, FR SPLASH RH (SILVER) 1 Rp5.158.000 BODY COLOR:ZVC
2-4 77610-81A00-5PK •PROTECTOR, GUARD EDGE (BLACK) 1 Rp319.500 BODY COLOR:ZVD,ZUF,ZMA,ZJ3
2-3 77610-81A00-26U •PROTECTOR, GUARD EDGE (WHITE) 1 Rp314.500 BODY COLOR:26U
2-2 77610-81A00-Z2S •PROTECTOR, GUARD EDGE (SILVER) 1 Rp319.500 BODY COLOR:Z2S
2-1 77610-81A00-ZVC •PROTECTOR, GUARD EDGE (SILVER) 1 Rp319.500 BODY COLOR:ZVC
3 09409-09304-000 •CLIP 6 Rp17.000
4-1 77630-81A00-ZVC GUARD, FR SPLASH LH (SILVER) 1 Rp5.158.000 BODY COLOR:ZVC
4-2 77630-81A00-GKG GUARD, FR SPLASH LH (GRAY) 1 Rp5.158.000 BODY COLOR:ZMA
4-3 77630-81A00-GZ5 GUARD, FR SPLASH LH (BLACK) 1 Rp5.158.000 BODY COLOR:ZJ3
4-4 77630-81A00-A4Y GUARD, FR SPLASH LH (KHAKI/BLACK) 1 Rp5.158.000 BODY COLOR:ZVD
4-5 77630-81A00-26U GUARD, FR SPLASH LH (WHITE) 1 Rp5.158.000 BODY COLOR:26U
4-6 77630-81A00-Z2S GUARD, FR SPLASH LH (SILVER) 1 Rp5.158.000 BODY COLOR:Z2S
4-7 77630-81A00-AMF GUARD, FR SPLASH LH (BROWN/BLACK) 1 Rp5.158.000 BODY COLOR:ZUF
5-4 77610-81A00-5PK •PROTECTOR, GUARD EDGE (BLACK) 1 Rp319.500 BODY COLOR:ZVD,ZUF,ZMA,ZJ3
5-3 77610-81A00-26U •PROTECTOR, GUARD EDGE (WHITE) 1 Rp314.500 BODY COLOR:26U
5-2 77610-81A00-Z2S •PROTECTOR, GUARD EDGE (SILVER) 1 Rp319.500 BODY COLOR:Z2S
5-1 77610-81A00-ZVC •PROTECTOR, GUARD EDGE (SILVER) 1 Rp319.500 BODY COLOR:ZVC
6 09409-09304-000 •CLIP 6 Rp17.000
7 09132-06022-000 SCREW (6X20) 2 Rp23.000
8-1 77540-81A00-ZJ3 GUARD, SIDE SILL SPLASH RH (BLACK) 1 Rp4.531.000 BODY COLOR:ZJ3
8-2 77540-81A00-ZVD GUARD, SIDE SILL SPLASH RH (KHAKI) 1 Rp4.531.000 BODY COLOR:ZVD
8-3 77540-81A00-ZMA GUARD, SIDE SILL SPLASH RH (GRAY) 1 Rp4.531.000 BODY COLOR:ZMA
8-4 77540-81A00-26U GUARD, SIDE SILL SPLASH RH (WHITE) 1 Rp4.531.000 BODY COLOR:26U
8-5 77540-81A00-ZVC GUARD, SIDE SILL SPLASH RH (SILVER) 1 Rp4.531.000 BODY COLOR:ZVC
8-6 77540-81A00-ZUF GUARD, SIDE SILL SPLASH RH (SILVER) 1 Rp4.531.000 BODY COLOR:ZUF
8-7 77540-81A00-Z2S GUARD, SIDE SILL SPLASH RH (SILVER) 1 Rp4.531.000 BODY COLOR:Z2S
9 09409-09304-000 •CLIP 6 Rp17.000
10-1 77640-81A00-ZJ3 GUARD, SIDE SILL SPLASH LH (BLACK) 1 Rp4.531.000 BODY COLOR:ZJ3
10-2 77640-81A00-ZVD GUARD, SIDE SILL SPLASH LH (KHAKI) 1 Rp4.531.000 BODY COLOR:ZVD
10-3 77640-81A00-ZMA GUARD, SIDE SILL SPLASH LH (GRAY) 1 Rp4.531.000 BODY COLOR:ZMA
10-4 77640-81A00-26U GUARD, SIDE SILL SPLASH LH (WHITE) 1 Rp4.531.000 BODY COLOR:26U
10-5 77640-81A00-ZVC GUARD, SIDE SILL SPLASH LH (SILVER) 1 Rp4.531.000 BODY COLOR:ZVC
10-6 77640-81A00-ZUF GUARD, SIDE SILL SPLASH LH (BROWN) 1 Rp4.531.000 BODY COLOR:ZUF
10-7 77640-81A00-Z2S GUARD, SIDE SILL SPLASH LH (SILVER) 1 Rp4.531.000 BODY COLOR:Z2S
11 09409-09304-000 •CLIP 6 Rp17.000
12-5 77550-81A00-26U GUARD, RR SPLASH RH (WHITE) 1 Rp5.158.000 BODY COLOR:26U
12-6 77550-81A00-Z2S GUARD, RR SPLASH RH (SILVER) 1 Rp5.158.000 BODY COLOR:Z2S
12-7 77550-81A00-AMF GUARD, RR SPLASH RH (BROWN/BLACK) 1 Rp5.158.000 BODY COLOR:ZUF
12-1 77550-81A00-ZVC GUARD, RR SPLASH RH (SILVER) 1 Rp5.158.000 BODY COLOR:ZVC
12-3 77550-81A00-GZ5 GUARD, RR SPLASH RH (BLACK) 1 Rp5.158.000 BODY COLOR:ZJ3
12-2 77550-81A00-GKG GUARD, RR SPLASH RH (GRAY) 1 Rp5.158.000 BODY COLOR:ZMA
12-4 77550-81A00-A4Y GUARD, RR SPLASH RH (KHAKI/BLACK) 1 Rp5.158.000 BODY COLOR:ZVD
13-1 77610-81A10-ZVC •PROTECTOR, GUARD EDGE (SILVER) 1 - BODY COLOR:ZVC L:810->730
13-2 77610-81A10-Z2S •PROTECTOR, GUARD EDGE (SILVER) 1 Rp216.500 BODY COLOR:Z2S L:810->730
13-3 DISCONTINUE
SUB: 77610-81A10-26U		 •PROTECTOR, GUARD EDGE (WHITE) 1 - BODY COLOR:26U L:810->730
13-4 77610-81A00-5PK
SUB: 77610-81A10-5PK		 •PROTECTOR, GUARD EDGE (BLACK) 1 Rp319.500 BODY COLOR:ZVD,ZUF,ZMA,ZJ3 L:810->730
14 09409-09304-000 •CLIP 8 Rp17.000
15-1 77650-81A00-ZVC GUARD, RR SPLASH LH (SILVER) 1 Rp5.158.000 BODY COLOR:ZVC
15-7 77650-81A00-AMF GUARD, RR SPLASH LH (BROWN/BLACK) 1 Rp5.158.000 BODY COLOR:ZUF
15-6 77650-81A00-Z2S GUARD, RR SPLASH LH (SILVER) 1 Rp5.158.000 BODY COLOR:Z2S
15-5 77650-81A00-26U GUARD, RR SPLASH LH (WHITE) 1 Rp5.158.000 BODY COLOR:26U
15-4 77650-81A00-A4Y GUARD, RR SPLASH LH (KHAKI/BLACK) 1 Rp5.158.000 BODY COLOR:ZVD
15-3 77650-81A00-GZ5 GUARD, RR SPLASH LH (BLACK) 1 Rp5.158.000 BODY COLOR:ZJ3
15-2 77650-81A00-GKG GUARD, RR SPLASH LH (GRAY) 1 Rp5.158.000 BODY COLOR:ZMA
16-4 77610-81A00-5PK
SUB: 77610-81A10-5PK		 •PROTECTOR, GUARD EDGE (BLACK) 1 Rp319.500 BODY COLOR:ZVD,ZUF,ZMA,ZJ3 L:810->730
16-3 DISCONTINUE
SUB: 77610-81A10-26U		 •PROTECTOR, GUARD EDGE (WHITE) 1 - BODY COLOR:26U L:810->730
16-1 77610-81A10-ZVC •PROTECTOR, GUARD EDGE (SILVER) 1 - BODY COLOR:ZVC L:810->730
16-2 77610-81A10-Z2S •PROTECTOR, GUARD EDGE (SILVER) 1 Rp216.500 BODY COLOR:Z2S L:810->730
17 09409-09304-000 •CLIP 8 Rp17.000
18-1 77560-81A00-ZJ3 GUARD, DOOR SPLASH RH (BLACK) 1 Rp5.640.500 BODY COLOR:ZJ3
18-2 77560-81A00-ZVD GUARD, DOOR SPLASH RH (KHAKI) 1 Rp5.640.500 BODY COLOR:ZVD
18-3 77560-81A00-ZMA GUARD, DOOR SPLASH RH (GRAY) 1 Rp5.640.500 BODY COLOR:ZMA
18-4 77560-81A00-26U GUARD, DOOR SPLASH RH (WHITE) 1 Rp5.640.500 BODY COLOR:26U
18-5 77560-81A00-ZVC GUARD, DOOR SPLASH RH (SILVER) 1 Rp5.640.500 BODY COLOR:ZVC
18-6 77560-81A00-ZUF GUARD, DOOR SPLASH RH (BROWN) 1 Rp5.640.500 BODY COLOR:ZUF
18-7 77560-81A00-Z2S GUARD, DOOR SPLASH RH (SILVER) 1 Rp5.640.500 BODY COLOR:Z2S
19 09409-08328-000 •CLIP 13 Rp20.500
20-1 77660-81A00-ZJ3 GUARD, DOOR SPLASH LH (BLACK) 1 Rp5.640.500 BODY COLOR:ZJ3
20-2 77660-81A00-ZVD GUARD, DOOR SPLASH LH (KHAKI) 1 Rp5.640.500 BODY COLOR:ZVD
20-3 77660-81A00-ZMA GUARD, DOOR SPLASH LH (GRAY) 1 Rp5.640.500 BODY COLOR:ZMA
20-4 77660-81A00-26U GUARD, DOOR SPLASH LH (WHITE) 1 Rp5.640.500 BODY COLOR:26U
20-5 77660-81A00-ZVC GUARD, DOOR SPLASH LH (SILVER) 1 Rp5.640.500 BODY COLOR:ZVC
20-6 77660-81A00-ZUF GUARD, DOOR SPLASH LH (BROWN) 1 Rp5.640.500 BODY COLOR:ZUF
20-7 77660-81A00-Z2S GUARD, DOOR SPLASH LH (SILVER) 1 Rp5.640.500 BODY COLOR:Z2S
21 09409-08328-000 •CLIP 13 Rp20.500
22 09409-07340-000 CLIP 18 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
