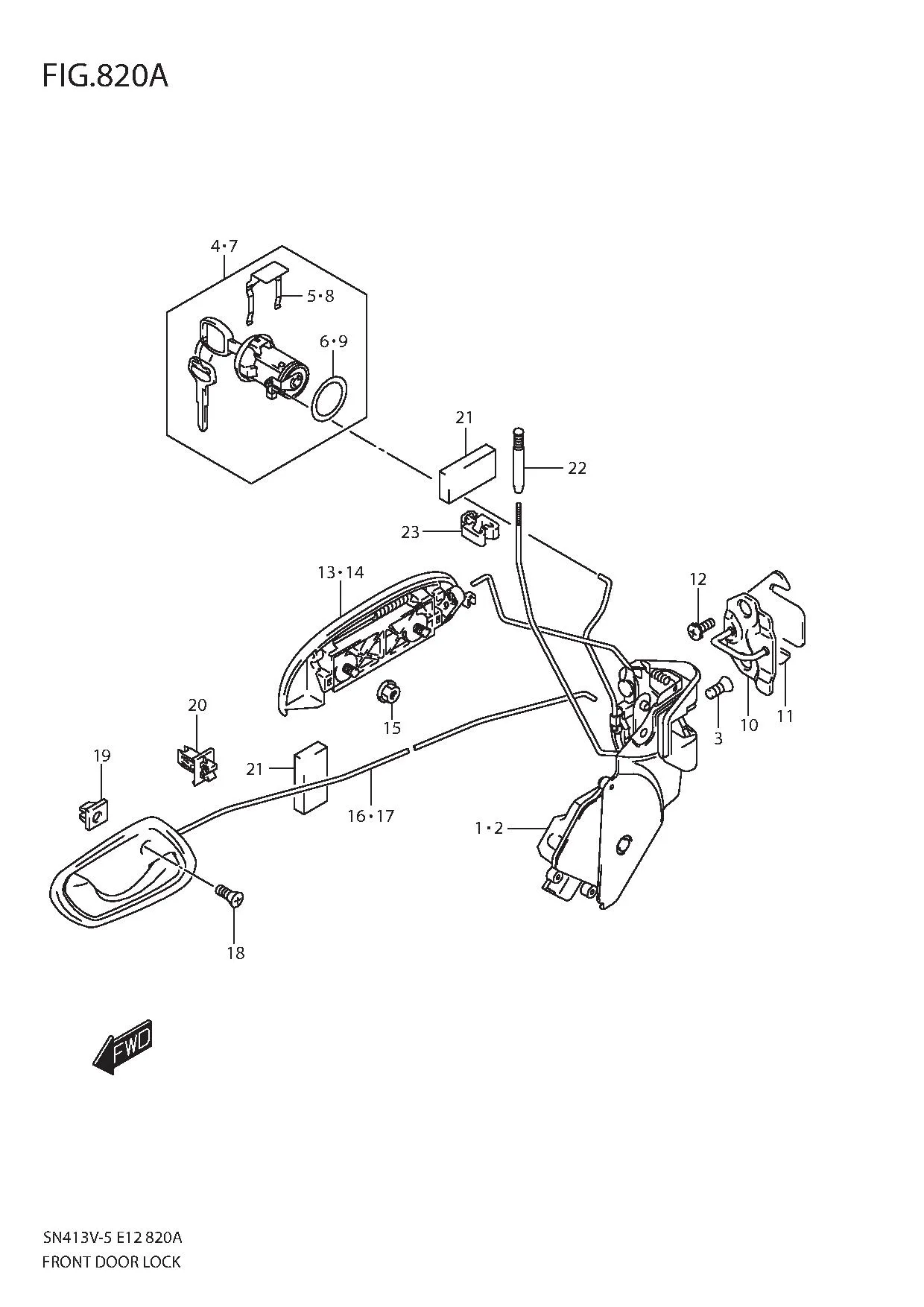

FIG.820A FRONT DOOR LOCK

FIG.820A FRONT DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82201-81A20-000 LATCH ASSY, FR DR RH 1 Rp2.578.500
2 82202-81A20-000 LATCH ASSY, FR DR LH 1 Rp2.578.500
3 09137-06028-000 SCREW (6X18) 6 Rp18.500
4 82270-76870-000 CYLINDER, FR DR LOCK RH 1 Rp612.000
5 82291-81A00-000
SUB: 82291B81A00N000		 •RETAINER, CYLINDER 1 Rp48.500
6 82292-81A00-000 •SHEET, DOOR CYLINDER 1 Rp75.000
7 82280-76870-000 CYLINDER, FR DR LOCK LH 1 Rp612.000
8 82291-81A00-000
SUB: 82291B81A00N000		 •RETAINER, CYLINDER 1 Rp48.500
9 82292-81A00-000 •SHEET, DOOR CYLINDER 1 Rp75.000
10 82610-77A01-000 STRIKER, DOOR LATCH 2 Rp244.000
11 82681-84000-000 SPACER, STRIKER 0 Rp22.000
12 09137-08014-000
SUB: 09137-08004-000		 SCREW (8X18) 4 Rp23.000
13 82801-81A04-5PK
SUB: 82801-81A01-5PK		 HANDLE ASSY, DR OUT RH (BLACK) 1 Rp396.000
14 DISCONTINUE
SUB: 82802-81A01-5PK		 HANDLE ASSY, DR OUT LH (BLACK) 1 -
15 08316-1006A-000
SUB: 08316B1006AN000		 NUT 4 Rp2.000
16 83101-81A11-P4Z
SUB: 83101-81A10-P4Z		 HANDLE ASSY, DR INSIDE RH (GRAY) 1 Rp434.000
17 83102-81A10-P4Z HANDLE ASSY, DR INSIDE LH (GRAY) 1 Rp434.000
18 03521M0516B-000 SCREW 2 Rp5.000
19 83119-60B00-000 NUT, INSIDE HANDLE 2 Rp27.000
20 83271M60D00-000 CLIP, REMOCON ROD 2 Rp9.500
21 77591M75000-000 PAD 4 Rp7.000
22 82982M65D00-P4Z KNOB, INSIDE LOCK (GRAY) 2 Rp7.500
23 DISCONTINUE
SUB: 09403-07324-000		 CLIP 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
