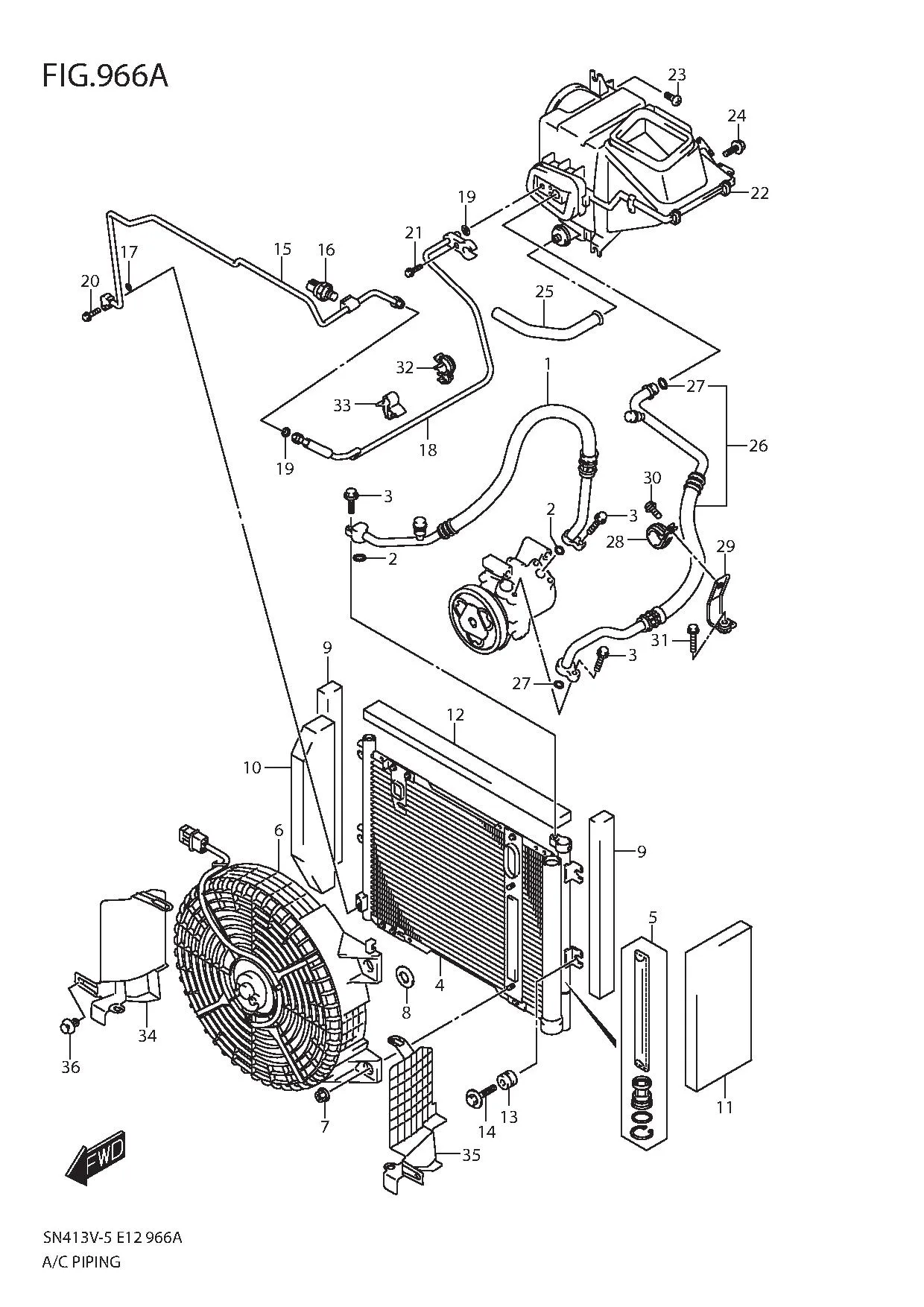

FIG.966A A/C PIPING

No	No. Part	Description	Qty	Price Per Pcs
1	95720-57M00-000	HOSE, DISCHARGE	1	Rp1.547.000
2	95895-50G00-000 SUB: 95895B50G00N000	•O RING (D:2.4,ID:10.8)	2	Rp12.500
3	01550-0620B-000 SUB: 01550B0620AN000	BOLT	3	Rp3.500
4	95311-81A12-000	CONDENSER	1	Rp5.337.000
5	95339-58J10-000	•DRYER KIT	1	Rp690.500
6	95560-81A01-000	FAN ASSY, CONDENSER	1	Rp4.471.000
7	08316-1006A-000 SUB: 08316B1006AN000	NUT	4	Rp2.000
8	08321-0110A-000	LOCK WASHER	2	Rp14.000
9	95815-50E00-000	PACKING, CONDENSER	2	Rp62.000
10	95812-81A10-000	PACKING, CONDENSER	1	Rp97.000
11	95811-81A01-000	PACKING, CONDENSER	1	Rp111.000
12	95813-81A00-000	PACKING, RADIATOR	1	Rp66.000
13	95920-86400-000	BUSH	4	Rp68.500
14	09116-06171-000	SCREW (6X30)	4	Rp20.500
15	95732-81A61-000	PIPE, CONDENSER OUTLET	1	Rp1.676.500
16	95526-50G30-000	•SWITCH, DUAL PRESSURE	1	Rp767.500
17	95891-50G00-000 SUB: 95891B50G00N000	•O RING (D:1.8,ID:6.7)	1	Rp12.500
18	95733-81A60-000	PIPE, COOLING UNIT INLET	1	Rp601.500
19	95891-50G00-000 SUB: 95891B50G00N000	•O RING (D:1.8,ID:6.7)	2	Rp12.500
20	DISCONTINUE SUB: 01550B0625AN000	BOLT	1	-
21	01550-0620B-000 SUB: 01550B0620AN000	BOLT	1	Rp3.500
22	95400-81815-000	COOLING UNIT	1	Rp9.069.500
23	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
24	02162-0616A-000	SCREW	1	Rp3.000
25	95481-81A02-000	HOSE, DRAIN	1	Rp256.000
26	95710-57M00-000	HOSE, SUCTION	1	Rp1.271.000
27	95896-50G00-000 SUB: 95896B50G00N000	•O RING (D:2.4,ID:13.4)	2	Rp19.000
28	95771-70G00-000	CLAMP, HOSE	1	Rp82.500
29	95781-83C30-000	STAY, SUCTION HOSE	1	Rp286.500
30	01550-0612B-000	SCREW	1	Rp16.500
31	DISCONTINUE SUB: 01550B0625AN000	BOLT	1	-
32	DISCONTINUE SUB: 95762-75F00L000	CLAMP, AIR CON PIPE	1	-
33	09403-08406-000	CLAMP	2	Rp22.500
34	95340-57M00-000	SHROUD, COND RH	1	Rp139.000
35	95340-57M10-000	SHROUD, COND LH	1	Rp138.500
36	09409-07340-000	CLIP	6	Rp17.500
