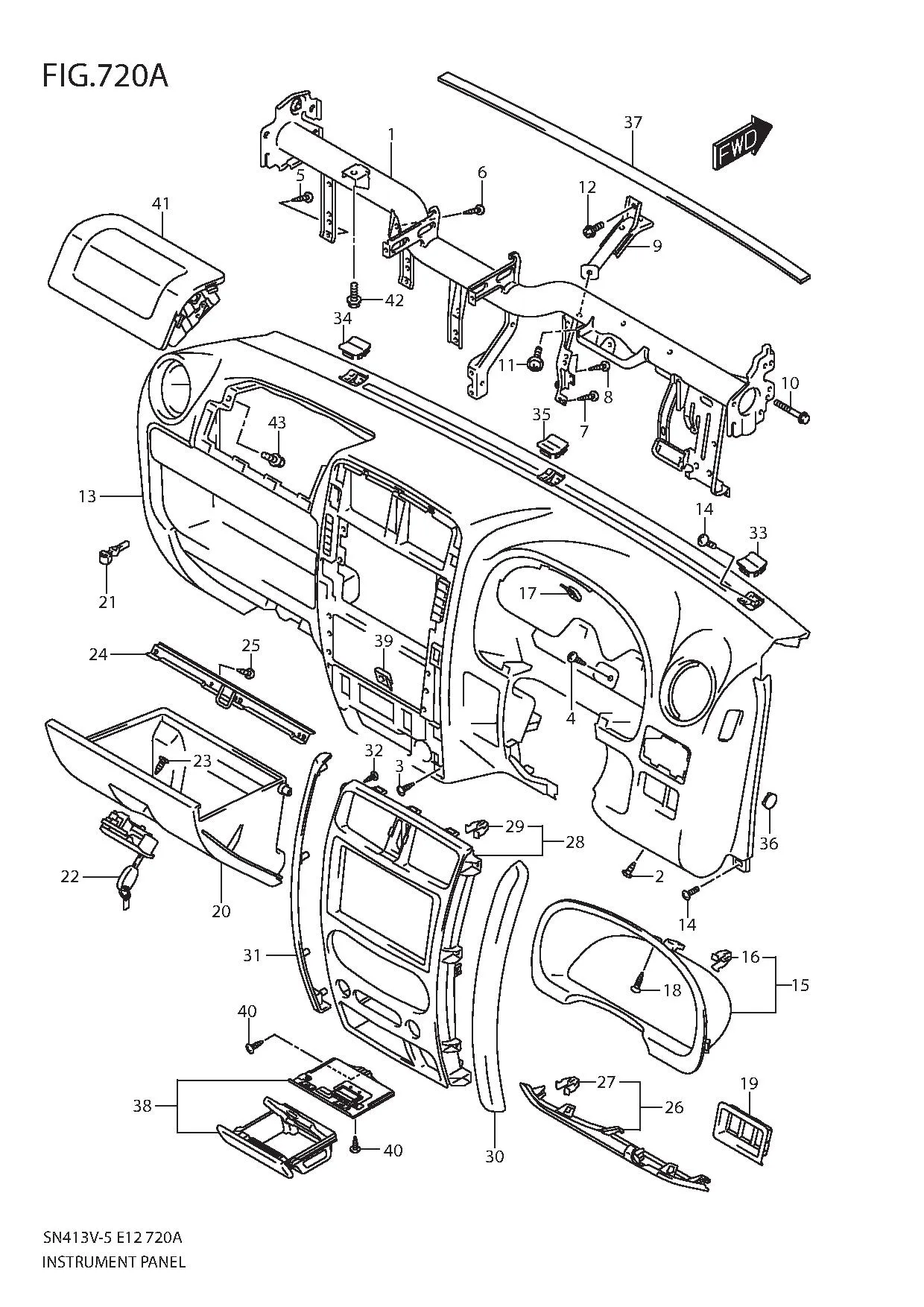

FIG.720A INSTRUMENT PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73200-76J20-000	MEMBER, STEERING SUPPORT	1	Rp3.361.500
2	03141-0516B-000 SUB: 03141M0512A-000	SCREW	1	Rp3.500
3	03141-0516B-000 SUB: 03141M0512A-000	SCREW	1	Rp3.500
4	03141-0516B-000 SUB: 03141M0512A-000	SCREW	1	Rp3.500
5	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
6	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
7	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
8	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
9	73250-81A00-000	STIFFENER, COWL UPPER	1	Rp460.500
10	73291-50G20-000	BOLT, MEMBER SIDE	4	Rp42.500
11	09136-06062-000 SUB: 09136B06017N000	SCREW (6X16)	1	Rp7.000
12	02162-0616A-000	SCREW	2	Rp3.000
13	73111-76J01-P4Z	PANEL, INSTRUMENT MAIN (GRAY)	1	Rp5.505.000
14	09122-66009-000	SCREW	5	Rp23.500
15	73311-76J00-5PK	PANEL, METER CLUSTER (BLACK)	1	Rp368.500
16	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
17	09148-05045-000 SUB: 09148B05045N000	NUT	2	Rp4.000
18	03121-0520A-000	SCREW	2	Rp16.000
19	73831-76J00-P4Z	VESSEL, SWITCH (GRAY)	1	Rp101.000
20	73410-76J00-P4Z	BOX, GLOVE (GRAY)	1	Rp1.096.000
21	73461M54G00-000	CUSHION, GLOVE BOX SIDE	2	Rp5.500
22	73430-76811-P4Z	LOCK, GLOVE BOX (GRAY)	1	Rp893.000
23	03521-0412A-000	SCREW	2	Rp20.000
24	73450-76J00-000	REINF, GLOVE BOX UPPER	1	Rp203.500
25	03541-0516A-000 SUB: 03541B0516AN000	SCREW	3	Rp3.500
26	73811-76J00-P4Z	COVER, COLUMN HOLE (GRAY)	1	Rp286.000
27	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
28-1	73821-76J00-5PK	GARNISH, INSTRUMENT PANEL CTR	1	Rp522.500	N_TUNER
28-2	73821-76J20-5PK	GARNISH, INSTRUMENT PANEL CTR	1	Rp527.500	W_TUNER
29-1	09409-08326-000 SUB: 09409B08326N000	•CLIP	6	Rp8.000	FOR 73821-76J00-5PK
29-2	09409-08332-000	•CLIP	6	Rp18.000	FOR 73821-76J20-5PK
30	73822-76J00-ZCP	ORNAMENT, CTR GARNISH RH (GRAY)	1	Rp322.500
31	73827-76J00-ZCP	ORNAMENT, CTR GARNISH LH (GRAY)	1	Rp322.500
32	03541-0412A-000 SUB: 03541B0412AN000	SCREW	8	Rp3.500
33	73811-81A00-P4Z	CAP, INSTPN UPPER RH (GRAY)	1	Rp55.500
34	73812-81A00-P4Z	CAP, INSTPN UPPER LH (GRAY)	1	Rp53.500
35	73813-81A00-P4Z	CAP, INSTPN UPPER CTR (GRAY)	1	Rp53.500
36	73871-73H00-5PK	CAP, SIDE (BLACK)	4	Rp43.500
37	73118-83E10-000	SEAL, INSTPN (15X1280X3)	1	Rp228.000	L:1280->1160
38	89810-58J01-5PK	ASHTRAY, FRONT (BLACK)	1	Rp541.500
39	09148-05045-000 SUB: 09148B05045N000	NUT	2	Rp4.000
40	03141-0516B-000 SUB: 03141M0512A-000	SCREW	3	Rp3.500
41	73910-76J00-P4Z	MODULE, PASSENGER AIR BAG (GRAY)	1	Rp18.996.000	SEE NOTE
42	01551-0816C-000	BOLT	1	Rp13.500
43	02162-0616A-000	SCREW	2	Rp3.000
