JIMNY 2017

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73BA AIR INLET BOX FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A CAP/COVER FIG.755A FUEL LID OPENER FIG.760A ROOF LINING FIG.770A GARNISH FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.824A BACK DOOR LOCK (N_BACK DOOR CYLINDER)FIG.824B BACK DOOR LOCK (W_BACK DOOR CYLINDER)FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.847A FRONT SEAT FIG.850A REAR SEAT FIG.865A FUEL TANK FIG.893A TOOL FIG.950A AIR CONDITIONR SET FIG.964A A/C HARNESS FIG.966A A/C PIPING FIG.972A COOLING UNIT FIG.990A COMPRESSOR FIG.992A COMPRESSOR MOUNTING

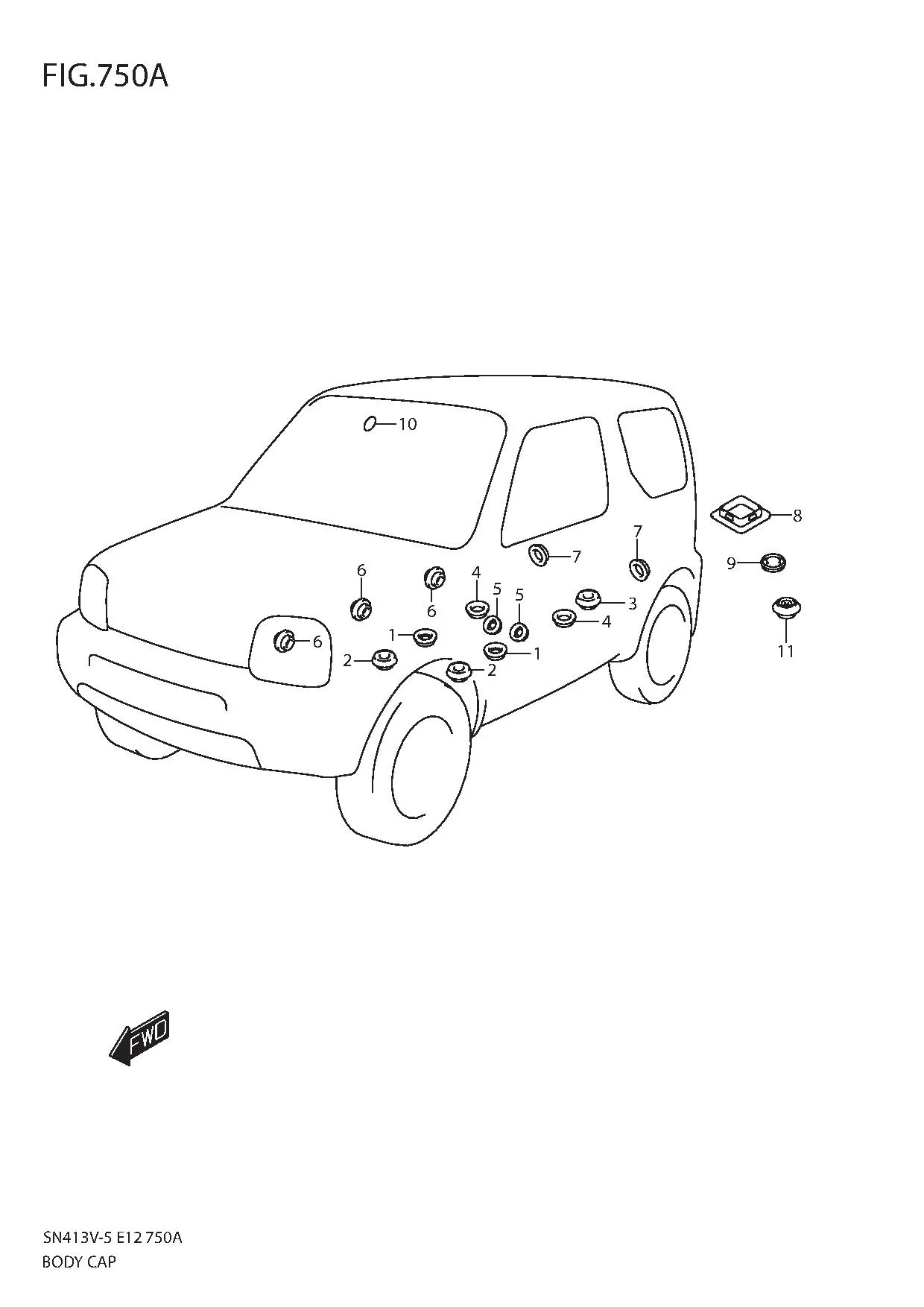

FIG.750A CAP/COVER

FIG.750A CAP/COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 65971-77E10-000	CAP, FR FLOOR DRAIN RR	2	-
2	09250-30002-000 SUB: 72999-67H00-000	CAP, FR FLOOR DRAIN FR	2	Rp5.500
3	09250-30002-000 SUB: 72999-67H00-000	CAP, RR FLOOR DRAIN RR	1	Rp5.500
4	DISCONTINUE SUB: 65971-77E10-000	CAP, RR FLOOR DRAIN FR	2	-
5	DISCONTINUE SUB: 65971-77E10-000	CAP, CENTER FLOOR DRAIN	2	-
6	09250-25007-000	CAP (OD:25.0)	6	Rp10.500
7	09250-30002-000 SUB: 72999-67H00-000	CAP, BACK PILLAR CORNER	2	Rp5.500
8	75411-60A00-000	CAP, TAIL INNER	2	Rp48.500
9	09250-25007-000	CAP (OD:25.0)	1	Rp10.500	SIDE
10	DISCONTINUE SUB: 84761-50X50-000	SEAL, QTR WINDOW FLANGE	4	-
11	09250-17002-000	CAP (OD:25.6)	1	Rp18.500	CENTER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
