JIMNY 2017

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73BA AIR INLET BOX FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A CAP/COVER FIG.755A FUEL LID OPENER FIG.760A ROOF LINING FIG.770A GARNISH FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.824A BACK DOOR LOCK (N_BACK DOOR CYLINDER)FIG.824B BACK DOOR LOCK (W_BACK DOOR CYLINDER)FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.847A FRONT SEAT FIG.850A REAR SEAT FIG.865A FUEL TANK FIG.893A TOOL FIG.950A AIR CONDITIONR SET FIG.964A A/C HARNESS FIG.966A A/C PIPING FIG.972A COOLING UNIT FIG.990A COMPRESSOR FIG.992A COMPRESSOR MOUNTING

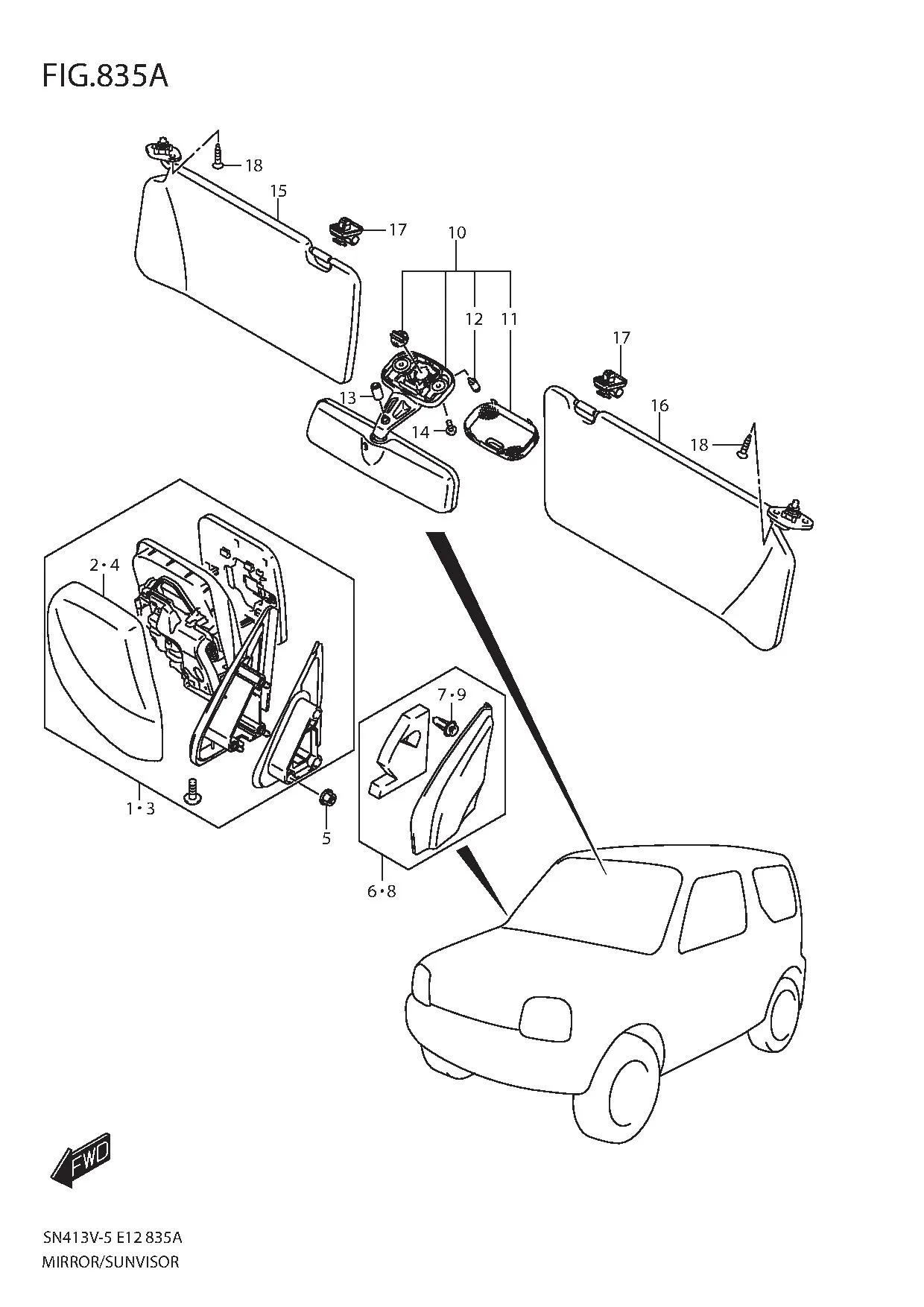

FIG.835A MIRROR/SUNVISOR

No	No. Part	Description	Qty	Price Per Pcs
1-2	84701-61LVA-26U SUB: 84701-76J11-26U	MIRROR ASSY, OUT RR VIEW RH (WHITE)	1	Rp3.105.500
1-3	84701-76J11-ZJ3	MIRROR ASSY, OUT RR VIEW RH (BLACK)	1	Rp2.901.500
1-4	84701-76J11-ZVD	MIRROR ASSY, OUT RR VIEW RH (KHAKI)	1	Rp2.901.500
1-5	84701-76J11-ZVC	MIRROR ASSY, OUT RR VIEW RH (SILVER)	1	Rp2.685.500
1-6	84701-76J11-ZMA	MIRROR ASSY, OUT RR VIEW RH (GRAY)	1	Rp2.901.500
1-7	84701-76J11-Z2S	MIRROR ASSY, OUT RR VIEW RH (SILVER)	1	Rp1.967.500
1-1	84701-76J11-ZUF	MIRROR ASSY, OUT RR VIEW RH (BROWN)	1	Rp1.967.500
2-6	84718-68H00-26U	•COVER, MIRROR VISOR RH (WHITE)	1	Rp350.500
2-7	84718-68H00-ZVC	•COVER, MIRROR VISOR RH (SILVER)	1	Rp376.000
2-5	84718-68H00-Z2S	•COVER, MIRROR VISOR RH (SILVER)	1	Rp350.500
2-4	84718-68H00-ZMA	•COVER, MIRROR VISOR RH (GRAY)	1	Rp350.500
2-3	84718-68H00-ZVD	•COVER, MIRROR VISOR RH (KHAKI)	1	Rp350.500
2-2	84718-68H00-ZUF	•COVER, MIRROR VISOR RH (BROWN)	1	Rp350.500
2-1	84718-68H00-ZJ3	•COVER, MIRROR VISOR RH (BLACK)	1	Rp350.500
3-1	84702-76J11-ZUF	MIRROR ASSY, OUT RR VIEW LH (BROWN)	1	Rp1.967.500
3-2	84702-61LVA-26U SUB: 84702-76J11-26U	MIRROR ASSY, OUT RR VIEW LH (WHITE)	1	Rp3.105.500
3-3	84702-76J11-ZJ3	MIRROR ASSY, OUT RR VIEW LH (BLACK)	1	Rp2.901.500
3-4	84702-76J11-ZVD	MIRROR ASSY, OUT RR VIEW LH (KHAKI)	1	Rp2.901.500
3-5	84702-76J11-ZMA	MIRROR ASSY, OUT RR VIEW LH (GRAY)	1	Rp2.901.500
3-6	84702-76J11-ZVC	MIRROR ASSY, OUT RR VIEW LH (SILVER)	1	Rp2.685.500
3-7	84702-76J11-Z2S	MIRROR ASSY, OUT RR VIEW LH (SILVER)	1	Rp1.967.500
4-1	84728-68H00-ZJ3	•COVER, MIRROR VISOR LH (BLACK)	1	Rp350.500
4-7	84728-68H00-ZVC	•COVER, MIRROR VISOR LH (SILVER)	1	Rp376.000
4-6	84728-68H00-26U	•COVER, MIRROR VISOR LH (WHITE)	1	Rp350.500
4-5	84728-68H00-Z2S	•COVER, MIRROR VISOR LH (SILVER)	1	Rp350.500
4-3	84728-68H00-ZVD	•COVER, MIRROR VISOR LH (KHAKI)	1	Rp350.500
4-2	84728-68H00-ZUF	•COVER, MIRROR VISOR LH (BROWN)	1	Rp350.500
4-4	84728-68H00-ZMA	•COVER, MIRROR VISOR LH (GRAY)	1	Rp350.500
5	08316-1006A-000 SUB: 08316B1006AN000	NUT	6	Rp2.000
6	84750-81A01-5PK	GARNISH, FR DR INNER RH (BLACK)	1	Rp253.000
7	83714M62B00-000 SUB: 09409M08320-000	•CLIP	2	Rp14.500
8	84790-81A01-5PK	GARNISH, FR DR INNER LH (BLACK)	1	Rp253.000
9	83714M62B00-000 SUB: 09409M08320-000	•CLIP	2	Rp14.500
10	84703-81A14-6GS	MIRROR ASSY, INSIDE REAR VIEW (GRAY)	1	Rp1.096.500
11	36212-81A00-000	•LENS, ROOM LAMP	1	Rp69.500
12	09471-12113-000	•BULB (12V,8W)	1	Rp21.500
13	84782-81A02-000	SUPPORT, INSIDE MIRROR	1	Rp61.500
14	02142-0616A-000 SUB: 02142B0616AN000	SCREW	2	Rp3.000
15	84801-81A53-6GS	SUNVISOR ASSY, RH (GRAY)	1	Rp657.500
16	84802-76J90-6GS	SUNVISOR ASSY, LH (GRAY)	1	Rp511.500
17	84851-77K00-6GS	HOLDER, SUNVISOR (GRAY)	2	Rp47.500
18	09139-05061-000	SCREW (5X16)	4	Rp11.500
