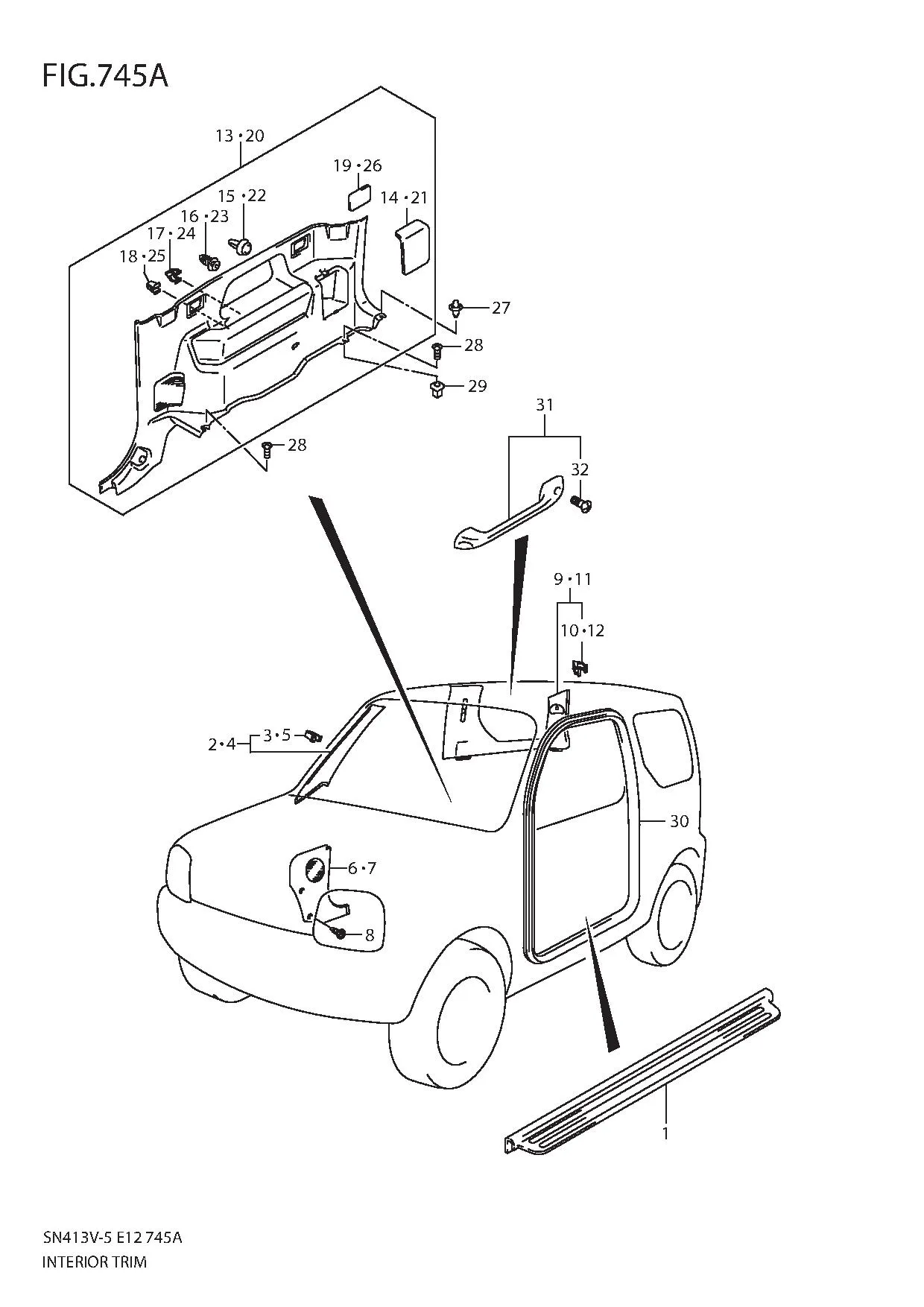

FIG.745A INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	76151-81A01-P4Z	SCUFF, SIDE SILL (GRAY)	2	Rp241.500
2	76110-81A00-6GS	TRIM ASSY, FR PILLAR UPPER RH (GRAY)	1	Rp333.500
3	09409-06324-000 SUB: 09409B06324N000	•CLIP	2	Rp13.500
4	76120-81A00-6GS	TRIM ASSY, FR PILLAR UPPER LH (GRAY)	1	Rp333.500
5	09409-06324-000 SUB: 09409B06324N000	•CLIP	2	Rp13.500
6	76131-81A00-P4Z	TRIM, DASH SIDE RH (GRAY)	1	Rp390.000
7	76141-81A10-P4Z	TRIM, DASH SIDE LH (GRAY)	1	Rp390.000
8	09409M06322-P4Z	CLIP (GRAY)	2	Rp4.500
9	76170-81A00-6GS	TRIM ASSY, RR QUARTER UPPER RH (GRAY)	1	Rp1.197.000
10	09409-10308-000 SUB: 09409B10308N000	•CLIP	12	Rp6.500
11	76180-81A00-6GS	TRIM ASSY, RR QUARTER UPPER LH (GRAY)	1	Rp1.197.000
12	09409-10308-000 SUB: 09409B10308N000	•CLIP	12	Rp6.500
13	76210-81A13-P4Z	TRIM ASSY, RR QUARTER LOWER RH (GRAY)	1	Rp2.030.500
14	76214-81A01-P4Z	•LID, QUARTER TRIM BOX (GRAY)	1	Rp164.000
15	83714M62B00-000 SUB: 09409M08320-000	•CLIP	4	Rp14.500
16	09409-08322-000	•CLIP	1	Rp17.500
17	09409-10308-000 SUB: 09409B10308N000	•CLIP	2	Rp6.500	STEEL
18	09409-06324-000 SUB: 09409B06324N000	•CLIP	2	Rp13.500	PLASTIC
19	76215-81A00-P4Z	•CAP, RR QTR LOWER TRIM (GRAY)	2	Rp112.000
20	76220-81A11-P4Z	TRIM ASSY, RR QUARTER LOWER LH (GRAY)	1	Rp2.030.500
21	76214-81A01-P4Z	•LID, QUARTER TRIM BOX (GRAY)	1	Rp164.000
22	83714M62B00-000 SUB: 09409M08320-000	•CLIP	4	Rp14.500
23	09409-08322-000	•CLIP	1	Rp17.500
24	09409-10308-000 SUB: 09409B10308N000	•CLIP	2	Rp6.500	STEEL
25	09409-06324-000 SUB: 09409B06324N000	•CLIP	2	Rp13.500	PLASTIC
26	76215-81A00-P4Z	•CAP, RR QTR LOWER TRIM (GRAY)	2	Rp112.000
27	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
28	03141-0516B-000 SUB: 03141M0512A-000	SCREW	4	Rp3.500
29	09148-05044-000	NUT	2	Rp18.000
30	76261-81A01-5PK	TRIM, FR DOOR OPENING (BLACK)	2	Rp311.000
31	76411M79F00-6GS SUB: 76400-70820-6GS	GRIP, ASSISTANT (GRAY)	3	Rp27.000
32	09139-06104-000	•SCREW (6X26)	6	Rp22.500
