JIMNY 2017

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73BA AIR INLET BOX FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A CAP/COVER FIG.755A FUEL LID OPENER FIG.760A ROOF LINING FIG.770A GARNISH FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.824A BACK DOOR LOCK (N_BACK DOOR CYLINDER)FIG.824B BACK DOOR LOCK (W_BACK DOOR CYLINDER)FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.847A FRONT SEAT FIG.850A REAR SEAT FIG.865A FUEL TANK FIG.893A TOOL FIG.950A AIR CONDITIONR SET FIG.964A A/C HARNESS FIG.966A A/C PIPING FIG.972A COOLING UNIT FIG.990A COMPRESSOR FIG.992A COMPRESSOR MOUNTING

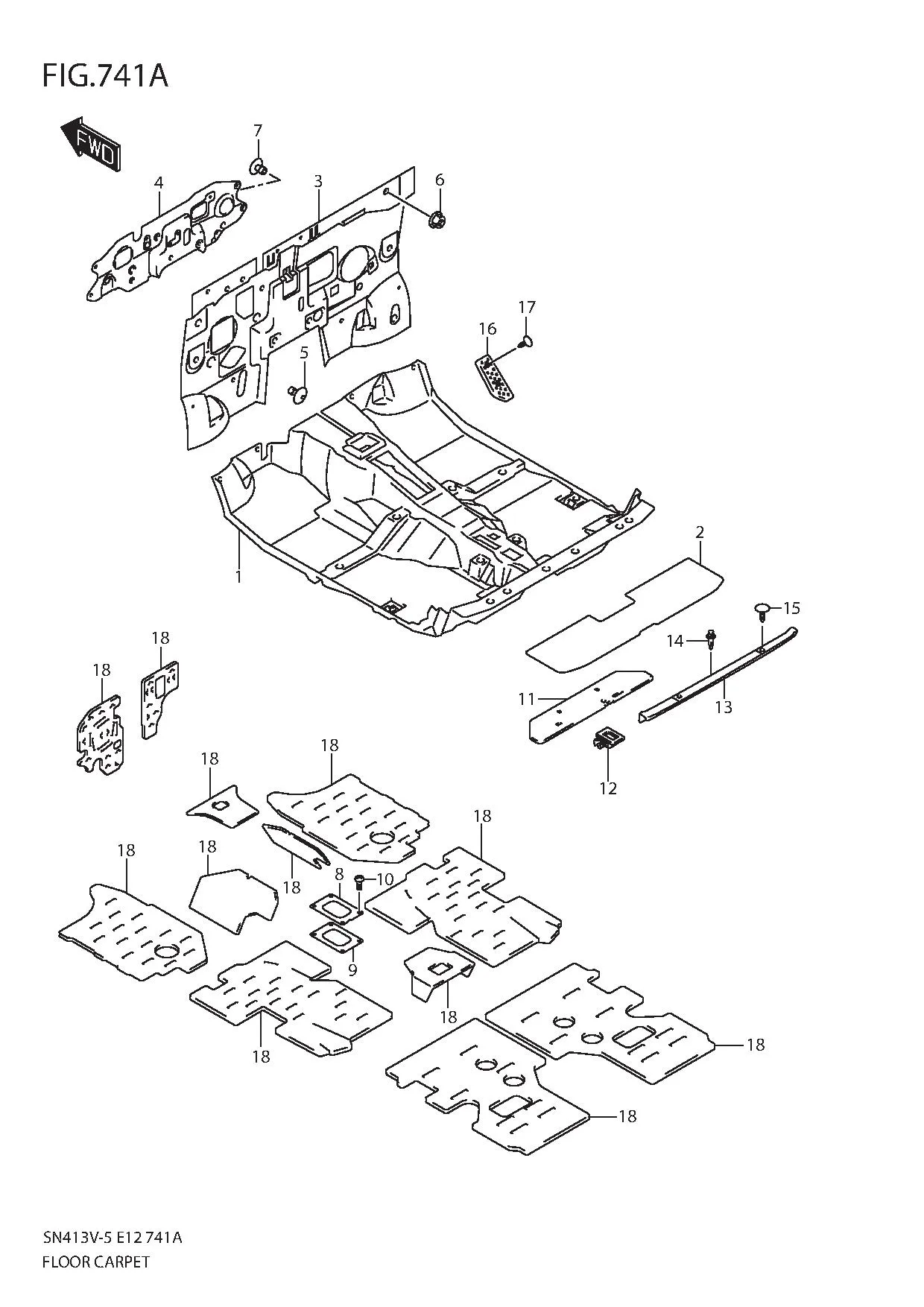

FIG.741A FLOOR CARPET

FIG.741A FLOOR CARPET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75150-81AF1-R3F	CARPET, FR FLOOR (BLACK)	1	Rp8.775.500
2	75160-76J20-R3F	MAT, RR FLOOR (BLACK)	1	Rp471.000
3	75210-81A01-000	SILENCER, DASH PANEL	1	Rp2.830.500
4	75280-81A02-000	SILENCER, DASH OUTER	1	Rp1.071.500
5	09148-05042-000	CLIP	4	Rp17.500
6	09148-05048-000	NUT	3	Rp19.500
7	09148-05048-000	NUT	5	Rp19.500
8	75571-81A00-000	COVER, FLOOR TUNNEL	1	Rp138.500
9	75572-81A00-000	SEAL, FLOOR TUNNEL	1	Rp126.000
10	03141-0616A-000	SCREW	4	Rp19.500
11	75540-81A00-000	BOARD, REAR LUGGAGE	1	Rp782.500
12	75446-70C01-000	•HOOK, JACK HANDLE	2	Rp64.500
13	75551-81A00-P4Z	TRIM, TAIL MEMBER (GRAY)	1	Rp460.000
14	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
15	76297-70C00-P4Z	CAP, TETHER ANCHORAGE (GRAY)	2	Rp50.500
16	75450-71J00-000	PEDAL, FOOTREST	1	Rp173.000
17	DISCONTINUE SUB: 09409-05307-5PK	CLIP (BLACK)	2	-
18	99611-60A01-000	SHEET, SILENCER (800X1000X3)	0	Rp1.210.000	CUT AS REQUIRED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
