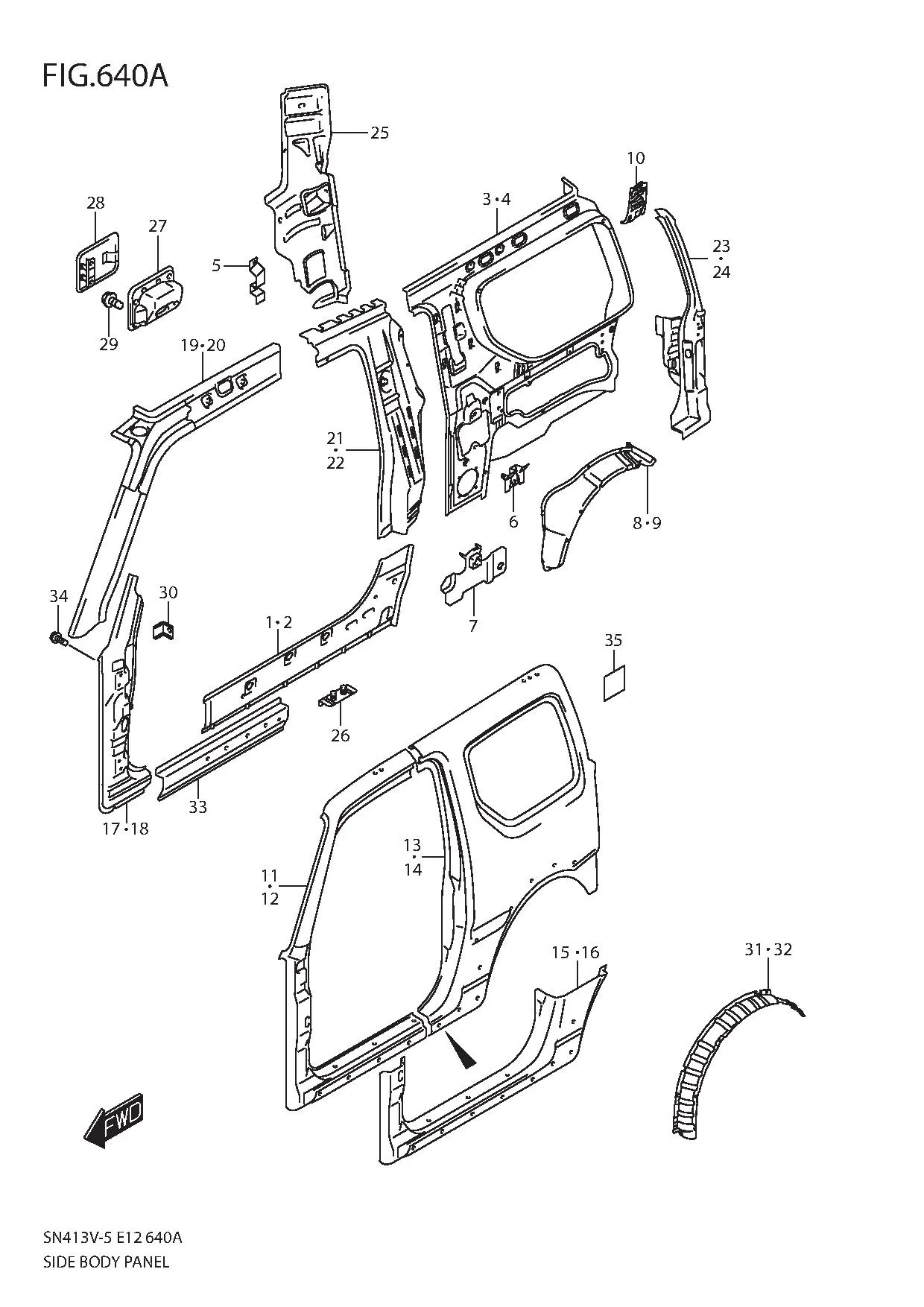

FIG.640A SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	61480-81A02-000	PANEL, SIDE SILL INNER RH	1	Rp788.500
2	61490-81A02-000	PANEL, SIDE SILL INNER LH	1	Rp788.500
3	63111-81A00-000	PANEL, RR QUARTER INNER RH	1	Rp3.954.000
4	63511-81A00-000	PANEL, RR QUARTER INNER LH	1	Rp3.954.000
5	63112-81A00-000	BRACKET, FUEL NECK PROTECTOR	1	Rp58.500
6	63113-81A00-000	BRACKET, RR SEAT HINGE	2	Rp119.500
7	63114-81A00-000	REINF, SEAT BELT RETRACTOR	2	Rp117.500
8	63120-81A02-000	PANEL, RR WHEEL HSG OUTER RH	1	Rp1.886.500
9	63520-81A02-000	PANEL, RR WHEEL HSG OUTER LH	1	Rp1.886.500
10	63531-81A00-000	REINF, SEAT BELT RR LH	1	Rp356.000
11	64111-81AV0-P11	PANEL, A-PILLAR RH	1	Rp4.218.000
12	64511-81AV0-P11	PANEL, A-PILLAR LH	1	Rp4.218.000
13	64100-81810-P31	PANEL, QUARTER RH	1	Rp5.253.500
14	64500-81810-P31	PANEL, QUARTER LH	1	Rp5.253.500
15	64111-81A01-P41	PANEL, SIDE SILL RH	1	Rp3.983.000
16	64511-81A01-P41	PANEL, SIDE SILL LH	1	Rp3.983.000
17	64120-81A12-000	REINF, FR PILLAR LOWER RH	1	Rp1.371.000
18	64520-81A12-000	REINF, FR PILLAR LOWER LH	1	Rp1.371.000
19	64130-81A01-000	PANEL, FR PILLAR INNER RH	1	Rp1.042.000
20	64530-81A01-000	PANEL, FR PILLAR INNER LH	1	Rp1.042.000
21	64140-81A00-000	REINF, CENTER PILLAR RH	1	Rp2.089.000
22	64540-81A00-000	REINF, CENTER PILLAR LH	1	Rp2.089.000
23	64150-81A10-000	PANEL, BACK PILLAR OUTER RH	1	Rp2.998.500
24	64550-81A01-000	PANEL, BACK PILLAR OUTER LH	1	Rp2.313.500
25	64160-81A00-000	REINF, BACK PILLAR INNER	1	Rp2.059.500
26	64171-81A00-000	REINF, ROOF RAIL	4	Rp89.000
27	64181-81A00-000	BOX, FUEL INLET	1	Rp447.000
28	65950-81A04-000	LID, FUEL INLET	1	Rp480.500
29	02162-0510A-000 SUB: 02162B0510AN000	SCREW	2	Rp3.000
30	64214M60A00-000	BRACKET, COWLING SIDE RR	2	Rp17.500
31	64260-81A00-000	HOLDER, RR SPLASH GUARD RH	1	Rp979.500
32	64660-81A00-000	HOLDER, RR SPLASH GUARD LH	1	Rp979.500
33	64191-81A01-000	REINF, SIDE SILL	2	Rp706.000
34	09122-76003-000	SCREW (6X16)	2	Rp15.000
35	83971-54F00-000	SHEET (185X75X1.8)	3	Rp58.000
