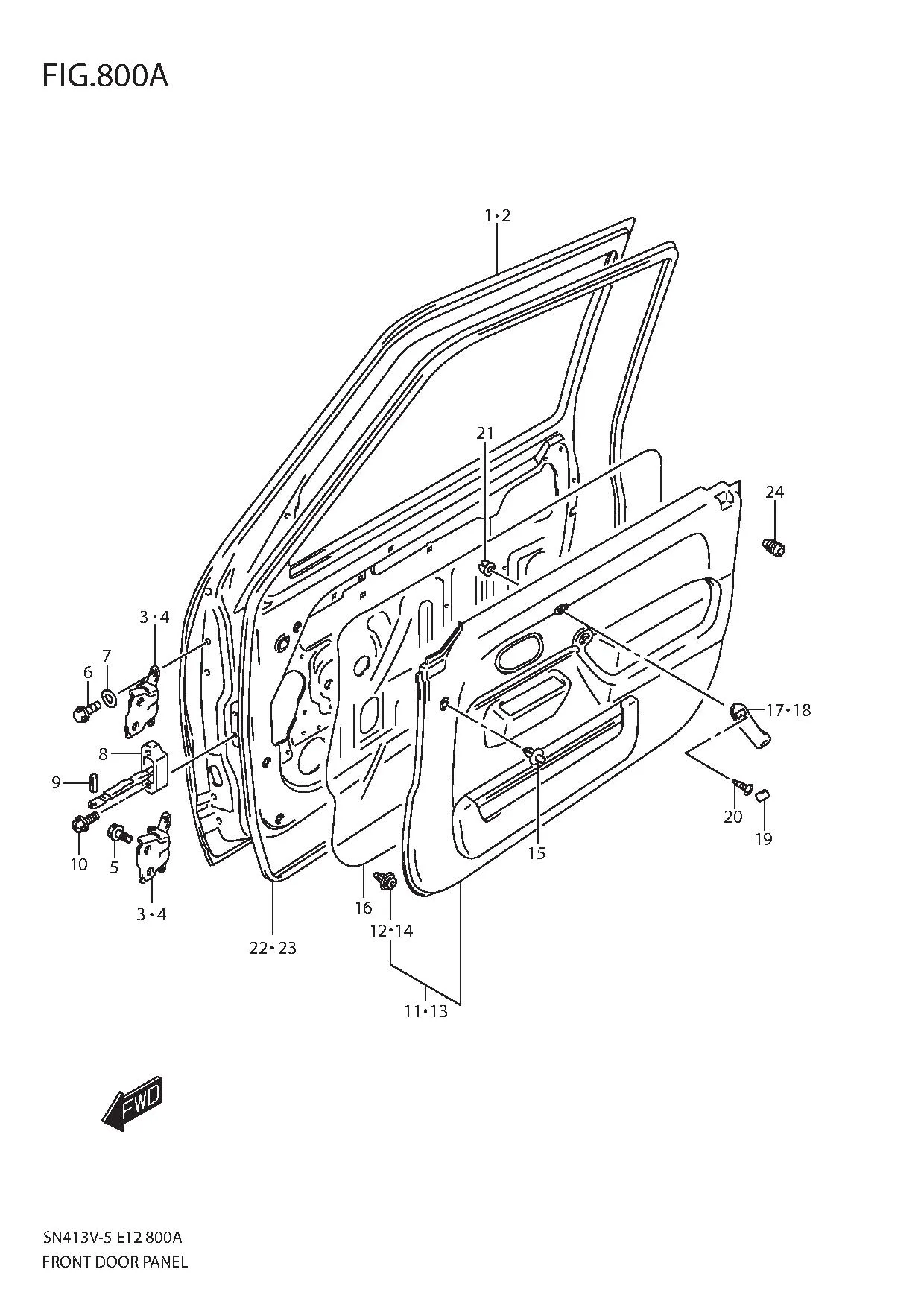

FIG.800A FRONT DOOR PANEL

FIG.800A FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68001-81A11-000 PANEL ASSY, FRONT DOOR RH 1 Rp8.385.500
2 68002-81A11-000 PANEL ASSY, FRONT DOOR LH 1 Rp8.385.500
3 69310-60G01-000 HINGE, FRONT DOOR NO.1 2 Rp543.000 UPPER RH,LOWER LH
4 69320-60G01-000 HINGE, FRONT DOOR NO.2 2 Rp543.000 UPPER LH,LOWER RH
5 01551-0820A-000 BOLT 8 Rp17.500
6 09103M08557-000
SUB: 09103M08389-000		 BOLT (8X24) 8 Rp8.500
7 69480-65D10-000 WASHER 4 Rp69.500
8 81810-65D00-000 STOP, FRONT DOOR OPEN 2 Rp402.000
9 81831-70B00-000 PIN, OPEN STOPPER BODY 2 Rp40.500
10 02162-0620A-000
SUB: 02162-0620C-000		 BOLT 4 Rp5.500
11 83701-81AB2-JJK
SUB: 83701-81AB1-JJK		 TRIM, FRONT DOOR RH (BLACK/GRAY) 1 Rp5.976.500
12 83714M62B00-000
SUB: 09409M08320-000		 •CLIP 7 Rp14.500
13 83702-81AB2-JJK
SUB: 83702-81AB1-JJK		 TRIM, FRONT DOOR LH (BLACK/GRAY) 1 Rp5.976.500
14 83714M62B00-000
SUB: 09409M08320-000		 •CLIP 7 Rp14.500
15 09409-08308-P4Z CLIP (GRAY) 2 Rp21.500
16 83911-60X52-000 COVER, DOOR SEALING (700X1200) 2 Rp111.000 CUT AS REQUIRED
17 84461-81A01-P4Z GRIP, FRONT DOOR RH (GRAY) 1 Rp187.500
18 84462-81A01-P4Z GRIP, FRONT DOOR LH (GRAY) 1 Rp187.500
19 84463-81A50-P4Z CAP, GRIP (GRAY) 4 Rp38.000
20 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 4 Rp4.000
21 09148-06024-000 NUT 4 Rp21.000
22 84641-81A00-000 WEATHERSTRIP, FR DR OPENING RH 1 Rp1.206.000
23 84651-81A00-000 WEATHERSTRIP, FR DR OPENING LH 1 Rp1.206.000
24 82711M70F00-000
SUB: 82711M56B00-000		 STOPPER, DOOR 4 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
