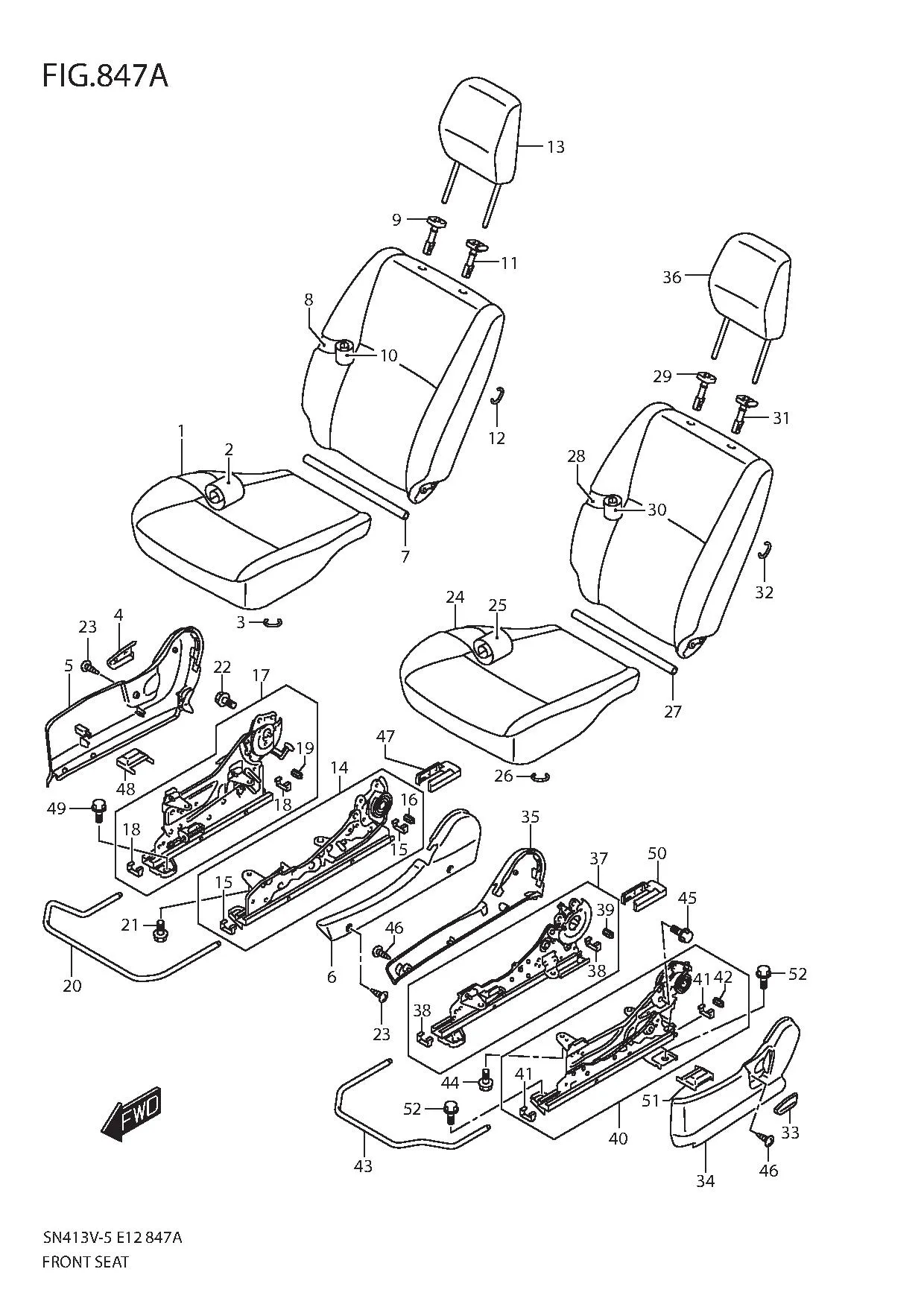

FIG.847A FRONT SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	85105-76JA0-000	CUSHION SUB ASSY, FRONT	1	Rp3.915.500
2	85180-57M00-BFS	TRIM, FRONT CUSHION (GRAY/BLACK)	1	Rp2.830.500
3	09387-19001-000 SUB: 09387B19001N000	RING	7	Rp9.000
4	85211-75H00-P4Z	KNOB, RECLINING RH (GRAY)	1	Rp68.500
5	85221-81A00-P4Z	COVER, OUTSIDE RH (GRAY)	1	Rp647.500
6	DISCONTINUE SUB: 85241-65DA0-P4Z	COVER, INSIDE RH (GRAY)	1	-
7	DISCONTINUE SUB: 85250-65DA0-000	ROD	1	-
8	85305-57M50-000	BACK ASSY, FRONT	1	Rp8.192.000
9	85341-65K10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp69.500
10	85380-76JA1-BFS	TRIM, FRONT BACK (GRAY/BLACK)	1	Rp3.010.500
11	85840-65K10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp137.000
12	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
13	86401-64L20-S7S	HEADRESTRAINT ASSY (BLACK)	1	Rp915.500
14	86601-81A00-000	ADJUSTER ASSY, INSIDE	1	Rp3.193.000
15	86652-81A00-000	•PROTECTOR, LOWER RAIL	2	Rp45.500
16	86654-81A00-000	•PROTECTOR, UPPER RAIL	1	Rp52.500
17	86603-81A00-000	ADJUSTER ASSY, OUTSIDE	1	Rp3.915.500
18	86652-81A00-000	•PROTECTOR, LOWER RAIL	2	Rp45.500
19	86654-81A00-000	•PROTECTOR, UPPER RAIL	1	Rp52.500
20	86691-76JA0-000	HANDLE	1	Rp234.500
21	01550-0812A-000 SUB: 01550B0812AN000	BOLT	4	Rp3.500
22	01550-1020A-000	BOLT	4	Rp21.000
23	03241M0516A-000	SCREW	3	Rp4.500
24	85105-76JA0-000	CUSHION ASSY, FRONT	1	Rp3.915.500
25	85180-57M00-BFS	TRIM, FRONT CUSH (GRAY/BLACK)	1	Rp2.830.500
26	09387-19001-000 SUB: 09387B19001N000	RING	7	Rp9.000
27	DISCONTINUE SUB: 85250-65DA0-000	ROD	1	-
28	85305-57M50-000	BACK ASSY, FRONT	1	Rp8.192.000
29	85341-65K10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp69.500
30	85380-76JA1-BFS	TRIM, FRONT BACK (GRAY/BLACK)	1	Rp3.010.500
31	85840-65K10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	Rp137.000
32	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
33	85711-75H00-P4Z	KNOB, RECLINING LH (GRAY)	1	Rp64.500
34	85721-81A00-P4Z	COVER, OUTSIDE LH (GRAY)	1	Rp647.500
35	DISCONTINUE SUB: 85741-65DA0-P4Z	COVER, INSIDE LH (GRAY)	1	-
36	86401-64L20-S7S	HEADRESTRAINT ASSY (BLACK)	1	Rp915.500
37	86602-81A10-000	ADJUSTER ASSY, INSIDE	1	Rp3.480.500
38	86652-81A00-000	•PROTECTOR, LOWER RAIL	2	Rp45.500
39	86654-81A00-000	•PROTECTOR, UPPRA RAIL	1	Rp52.500
40	86604-81A10-000	ADJUSTER ASSY, OUTSIDE	1	Rp4.228.000
41	86652-81A00-000	•PROTECTOR, LOWER RAIL	2	Rp45.500
42	86654-81A00-000	•PROTECTOR, UPPER RAIL	1	Rp52.500
43	86891-76JA0-000	HANDLE	1	Rp234.500
44	01550-0812A-000 SUB: 01550B0812AN000	BOLT	4	Rp3.500
45	01550-1020A-000	BOLT	4	Rp21.000
46	03241M0516A-000	SCREW	3	Rp4.500
47	85495-65DA0-P4Z	COVER, INSIDE (GRAY)	1	Rp63.500
48	85496-81A00-P4Z	COVER, OUTSIDE (GRAY)	1	Rp67.000
49	01551-1025A-000	BOLT	4	Rp29.000
50	85495-65DA0-P4Z	COVER, INSIDE (GRAY)	1	Rp63.500
51	85496-81A00-P4Z	COVER, INSIDE (GRAY)	1	Rp67.000
52	01551-1025A-000	BOLT	4	Rp29.000
