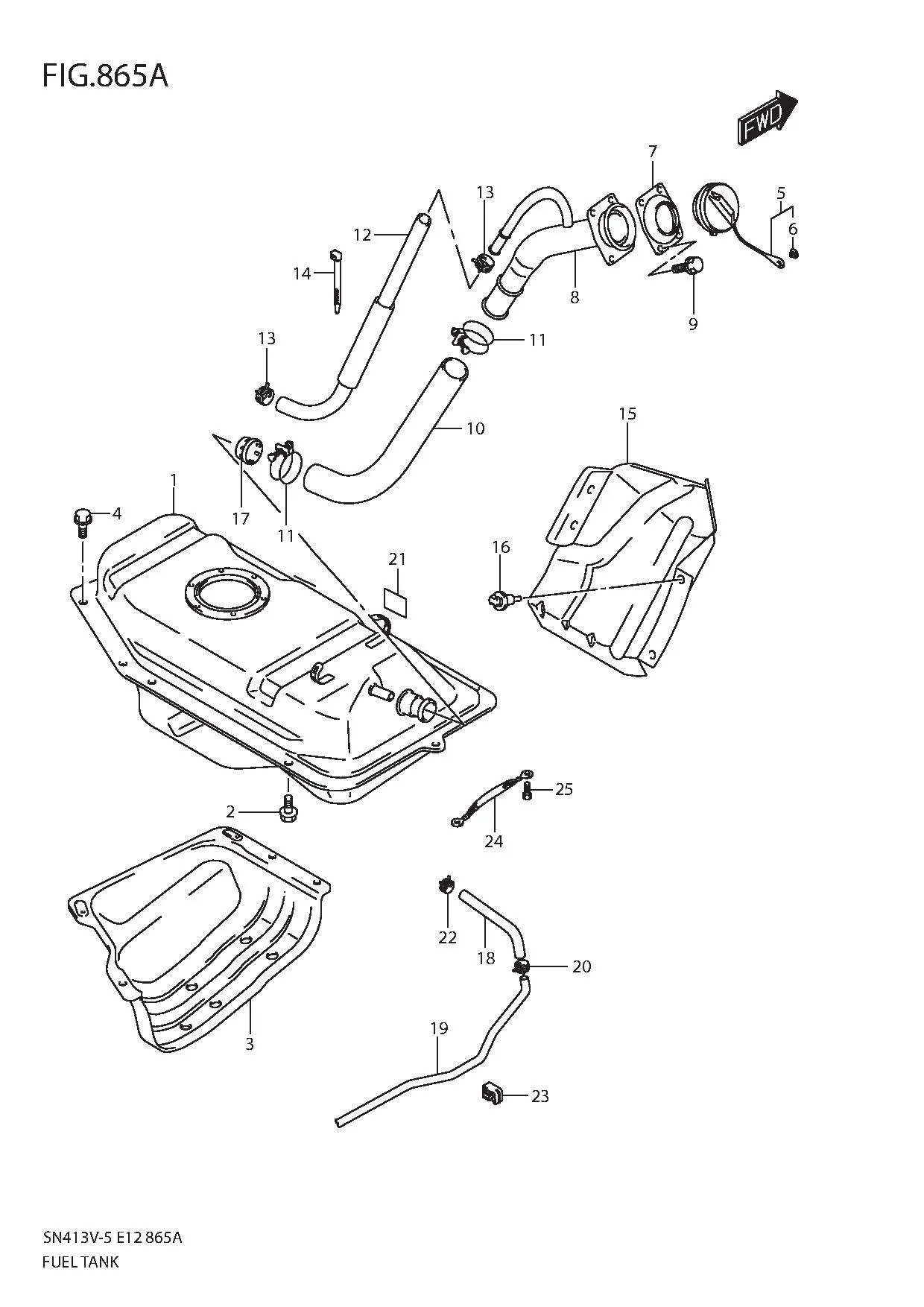

FIG.865A FUEL TANK

FIG.865A FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101-81AC3-000 TANK ASSY, FUEL 1 Rp6.034.500
2 DISCONTINUE
SUB: 89191-81A00-000		 BOLT 6 -
3 89321-81A00-000 PROTECTOR, FUEL TANK 1 Rp1.144.000
4 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 2 Rp3.000
5 89260-77K01-000 CAP ASSY, FUEL FILLER 1 Rp379.500
6 89267-77K00-000 •CLIP, CAP TETHER 1 Rp36.500
7 89285-75F00-000 PACKING, FUEL FILLER 1 Rp69.000
8 89201-81A12-000 NECK, FUEL FILLER 1 Rp2.170.500
9 09116M05014-000 BOLT (5X20) 2 Rp5.500
10 89241-81A20-000 HOSE, FUEL TANK FILLER 1 Rp606.000
11 09400-45411-000 CLAMP 2 Rp41.500
12 89250-81A21-000 HOSE, BREATHER 1 Rp392.500
13 09401-18406-000
SUB: 09401B18406N000		 CLIP 2 Rp18.500
14 DISCONTINUE
SUB: 09407B25401N000		 CLAMP (L:235) 1 -
15 89311-81A00-000 PROTECTOR, FUEL FILLER NECK 1 Rp351.000
16 09409-07340-000 CLIP 4 Rp17.500
17 89280-77A00-000 VALVE, FUEL TANK INLET 1 Rp107.000
18 89484-81A20-000 HOSE, FUEL EVAP 1 Rp260.000
19 89483-81A10-000 PIPE, FUEL EVAP 1 Rp334.000
20 09401-12405-000 CLIP 1 Rp16.500
21 89322-81A10-000 PROTECTOR, FUEL TANK FRONT 1 Rp212.000
22 09401-10409-000
SUB: 09401B10409N000		 CLIP 1 Rp7.500
23 89433-50CA0-000 CLAMP, EVAPORATOR PIPE 1 Rp39.500
24 DISCONTINUE
SUB: 89192-81A00-000		 HARNESS, FUEL TANK EARTH 1 -
25 01551-0816C-000 BOLT 1 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
