JIMNY 2017

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.570A FRONT HOOD PANEL FIG.572A TIRE CARRIER FIG.580A FRONT FENDER PANEL FIG.590A FRONT BODY PANEL FIG.600A FLOOR PANEL FIG.640A SIDE BODY PANEL FIG.660A ROOF PANEL FIG.717A FRONT BUMPER FIG.718A REAR BUMPER FIG.720A INSTRUMENT PANEL FIG.730A VENTILATOR FIG.732A HEATER UNIT FIG.73BA AIR INLET BOX FIG.740A CONSOLE BOX FIG.741A FLOOR CARPET FIG.745A INTERIOR TRIM FIG.750A CAP/COVER FIG.755A FUEL LID OPENER FIG.760A ROOF LINING FIG.770A GARNISH FIG.774A SPLASH GUARD FIG.780A EMBLEM FIG.790A WINDSHIELD FIG.800A FRONT DOOR PANEL FIG.805A BACK DOOR PANEL FIG.810A FRONT DOOR REGULATOR FIG.820A FRONT DOOR LOCK FIG.824A BACK DOOR LOCK (N_BACK DOOR CYLINDER)FIG.824B BACK DOOR LOCK (W_BACK DOOR CYLINDER)FIG.835A MIRROR/SUNVISOR FIG.840A SEAT BELT FIG.847A FRONT SEAT FIG.850A REAR SEAT FIG.865A FUEL TANK FIG.893A TOOL FIG.950A AIR CONDITIONR SET FIG.964A A/C HARNESS FIG.966A A/C PIPING FIG.972A COOLING UNIT FIG.990A COMPRESSOR FIG.992A COMPRESSOR MOUNTING

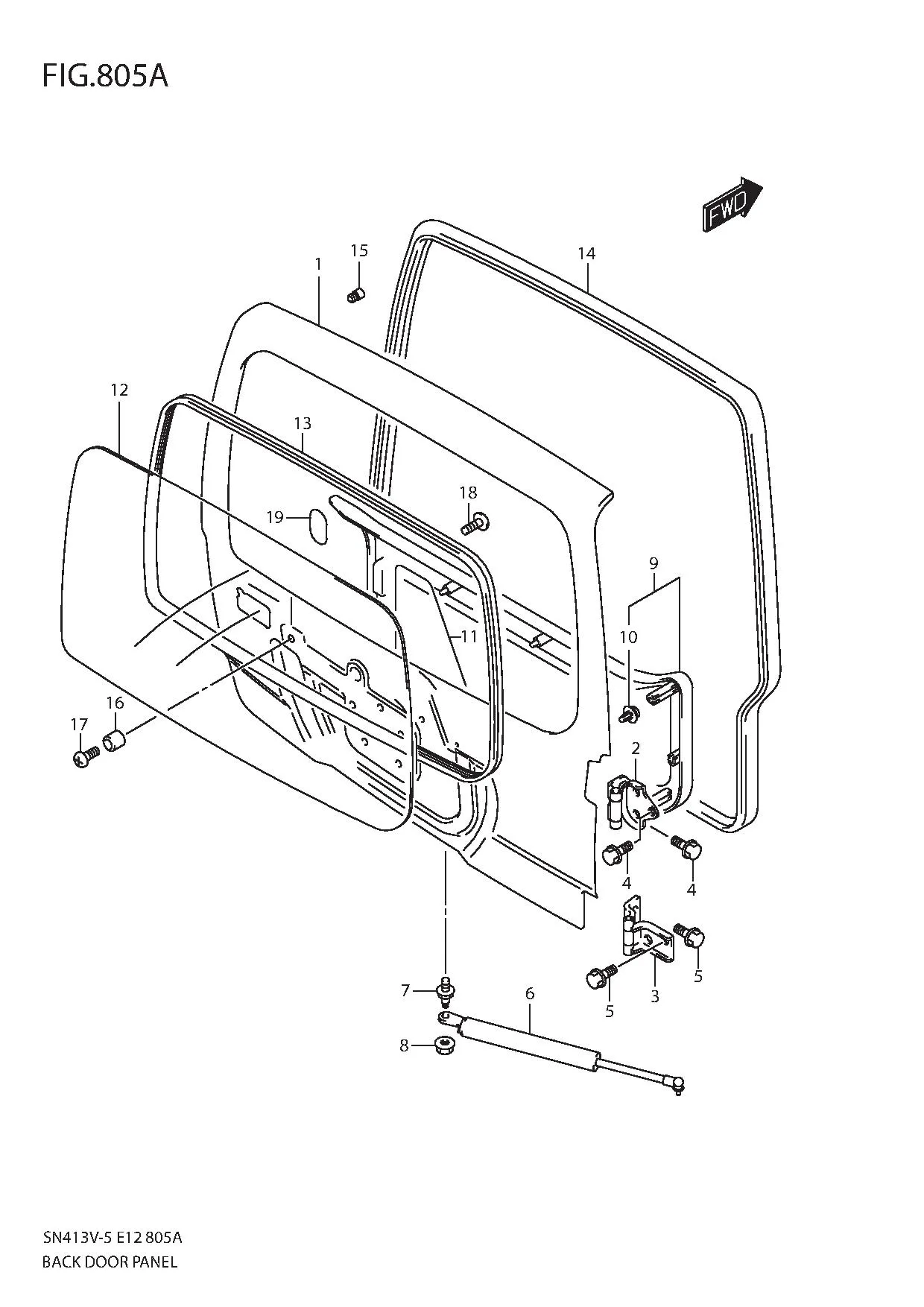

FIG.805A BACK DOOR PANEL

FIG.805A BACK DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	69100-81A40-000	PANEL ASSY, BACK DOOR	1	Rp8.875.500
2	69510-81A02-000	HINGE, BACK DOOR UPPER	1	Rp788.500
3	69520-81A05-000	HINGE, BACK DOOR LOWER	1	Rp832.000
4	01551-0825A-000	BOLT	5	Rp16.000
5	01551-0825A-000	BOLT	6	Rp16.000
6	81800-81816-000	UNIT, BACK DOOR BALANCER	1	Rp1.085.000
7	DISCONTINUE SUB: 81852-61A01-000	SHAFT, BACK DOOR BALANCER	1	-
8	09159-06076-000	NUT	1	Rp19.500
9	83770-81A01-P4Z	TRIM, BACK DOOR (GRAY)	1	Rp1.245.000
10	83714M62B00-000 SUB: 09409M08320-000	•CLIP	11	Rp14.500
11	83911-60X52-000	COVER, DOOR SEALING	1	Rp111.000	CUT AS REQUIRED
12	84571-76J30-000	GLASS, BACK DR WINDOW (GREEN)	1	Rp3.717.500
13	84623-81A00-000	WEATHERSTRIP, BACK DR WINDOW	1	Rp1.052.500
14	84681-81A00-000	WEATHERSTRIP, BACK DR OPENING	1	Rp1.101.000
15	82683-60B10-000	CUSHION	1	Rp33.500
16	09320-06018-000	CUSHION	2	Rp47.500
17	02112-0620A-000 SUB: 02112B0620AN000	SCREW	2	Rp4.000
18	02142-0612A-000 SUB: 02142B0612AN000	SCREW	1	Rp4.000
19	DISCONTINUE SUB: 84761-50X50-000	SEAL, HANDLE HOLE (140X190)	1	-	CUT AS REQUIRED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
