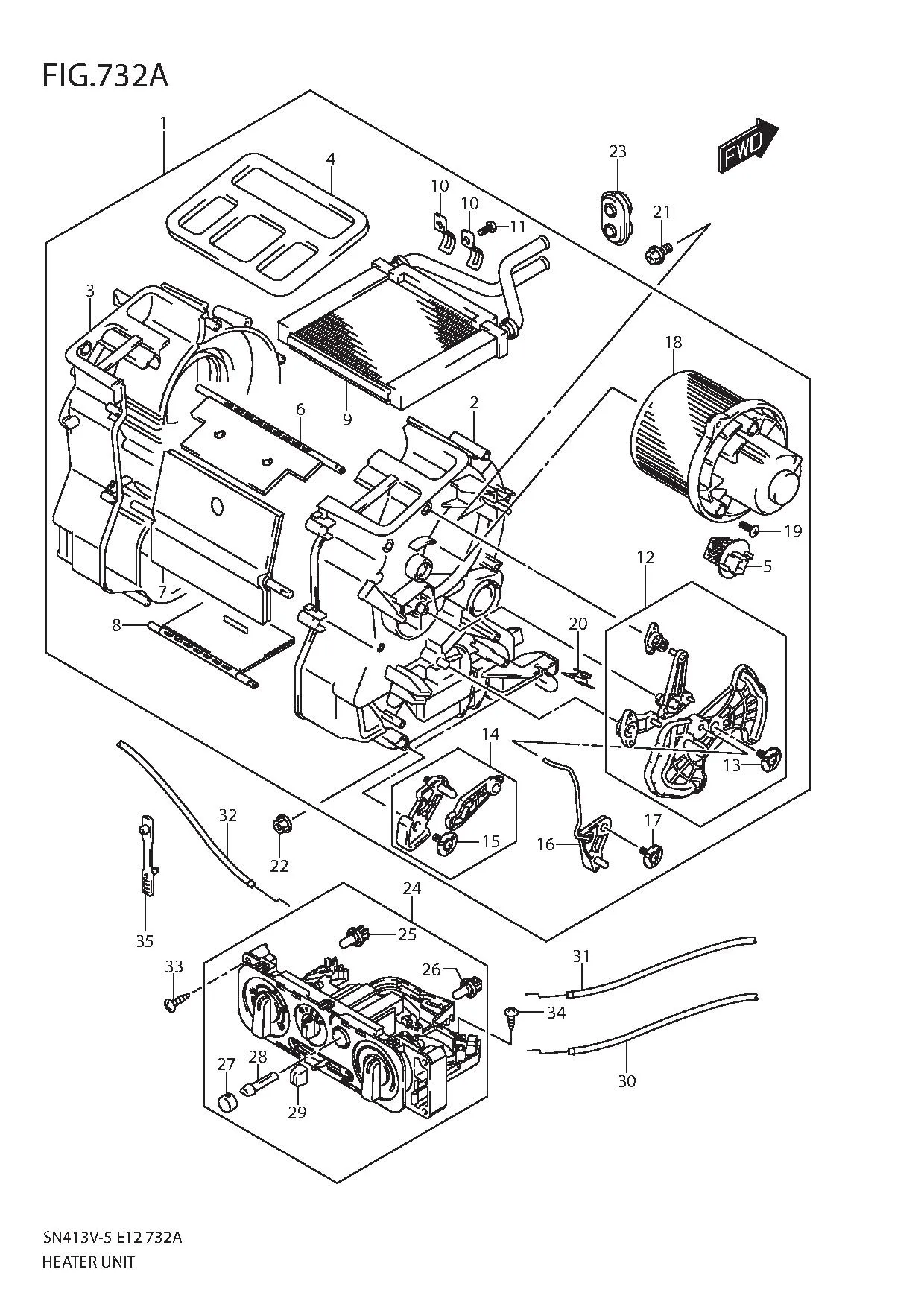

FIG.732A HEATER UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74100-57M00-000	HEATER UNIT	1	Rp12.154.000
2	74111-81AA0-000	•CASE, HEATER RH	1	Rp900.500
3	74112-81AA0-000	•CASE, HEATER LH	1	Rp900.500
4	74116-81AA0-000	•PACKING	1	Rp122.000
5	74140-81AA0-000	•RESISTOR, BLOWER	1	Rp422.000
6	74171-81AA0-000	•DOOR, FACE	1	Rp301.500
7	74172-81A00-000	•DOOR, HOOT	1	Rp388.500
8	74173-81A00-000	•DOOR, AIR MIX	1	Rp245.000
9	74120-81A00-000	•CORE, HEATER	1	Rp4.658.500
10	74122-65D10-000	•CLAMP, PIPE	2	Rp104.500
11	03511-0512A-000	•SCREW	2	Rp14.000
12	74170-81A00-000	•LEVER SET, LINK	1	Rp504.500
13	74183-82005-000 SUB: 74183B82005N000	••SCREW, LINK	1	Rp19.000
14	74180-81A01-000	•LEVER SET, LINK	1	Rp180.500
15	74183-82005-000 SUB: 74183B82005N000	••SCREW, LINK	1	Rp19.000
16	74188-81AA0-000	•LEVER, MODE	1	Rp159.000
17	74183-82005-000 SUB: 74183B82005N000	•SCREW, LINK	1	Rp19.000
18	74150-57M00-000	•MOTOR ASSY, HEATER	1	Rp3.604.000
19	74135-82000-000 SUB: 74135B82000N000	•SCREW, MOTOR	3	Rp19.500
20	DISCONTINUE SUB: 74151-50F00-000	•CLAMP	2	-
21	02162-0616A-000	BOLT	2	Rp3.000
22	09159-06081-000	NUT	2	Rp14.500
23	DISCONTINUE SUB: 74812M82010-000	GROMMET, HEATER	1	-
24-1	74400-70J42-5PK	LEVER ASSY, HEATER CONTROL (BLACK)	1	Rp1.904.500	W_MN_AC
24-2	74400-70J52-5PK	LEVER ASSY, HEATER CONTROL (BLACK)	1	Rp1.914.500	N_AC
25	74531-70J40-000	•BULB	1	Rp92.000	MODE SIDE
26	74531-70J50-000	•BULB	1	Rp95.000	TEMP SIDE
27	95521-84G00-000	•KNOB, AIR CON SWITCH	1	Rp66.500	W_MN_AC
28	95522-84G00-000	•INDICATOR, AIR CON SWITCH	1	Rp51.000	W_MN_AC
29	74463-70J10-000	•KNOB, FRESH AIR	1	Rp47.500
30	74451-81A01-000	CABLE, TEMP CONTROL (L:330)	1	Rp83.000	NATURAL
31	74451-81A40-000	CABLE, MODE CONTROL (L:420)	1	Rp123.500	BLACK
32	74453-81A30-000	CABLE, FRESH AIR CONTROL (L:480)	1	Rp123.500	BLUE
33	03541-0516A-000 SUB: 03541B0516AN000	SCREW	4	Rp3.500
34	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
35	09407-05403-000	CLAMP, CABLE	1	Rp13.000
