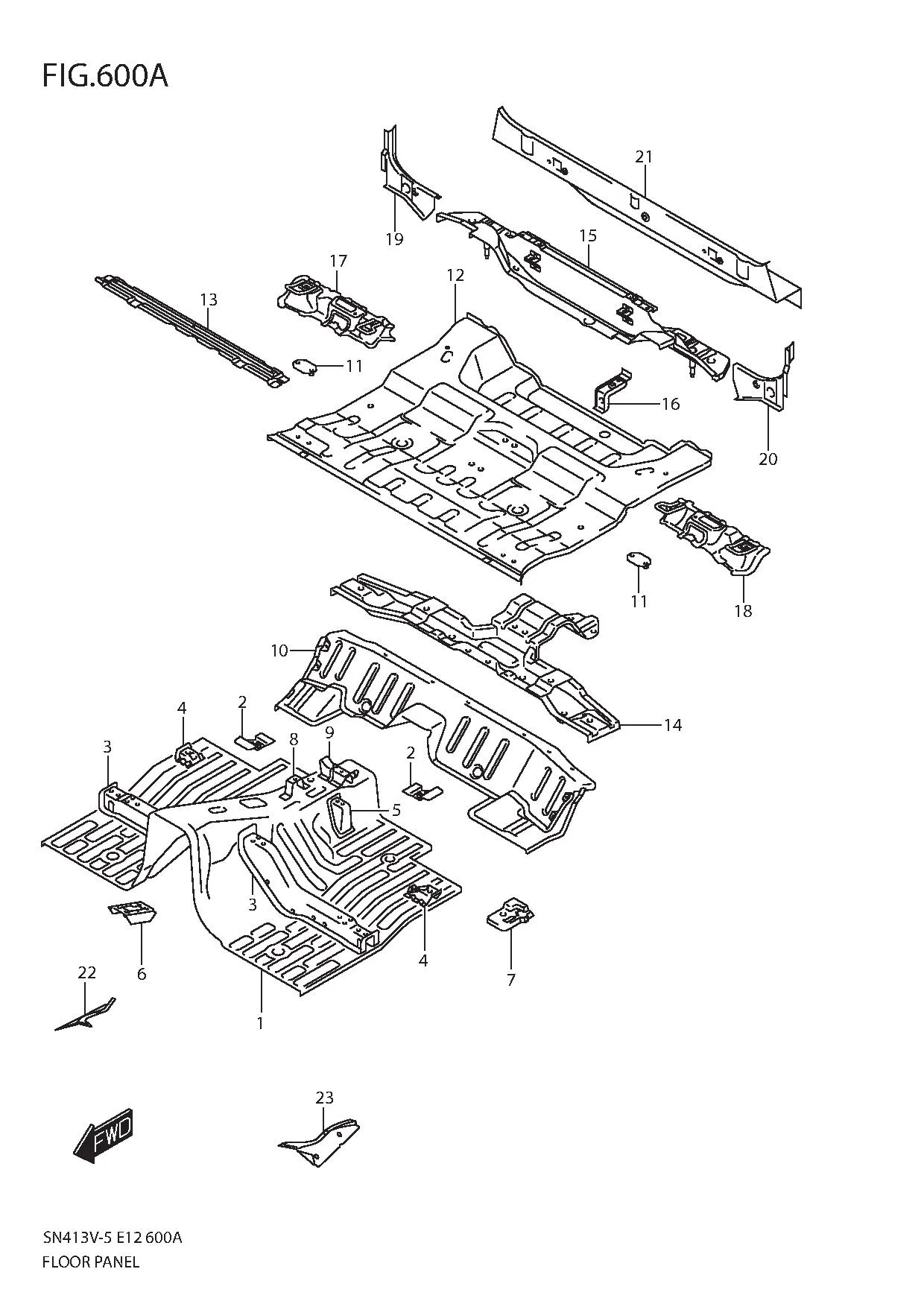

FIG.600A FLOOR PANEL

FIG.600A FLOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 61411-81A00-000 PANEL, MAIN FLOOR 1 Rp7.818.000
2 61412-81A01-000 BRACKET, PARKING CABLE 2 Rp78.500
3 61420-81A00-000 MEMBER, FR SEAT 2 Rp772.000
4 61441-76J01-000 BRACKET, FR SEAT OUTSIDE 2 Rp227.000
5 61442-81A00-000 BRACKET, FR SEAT INSIDE 2 Rp218.500
6 61451-76J01-000 REINF, SHIFT LEVER 1 Rp280.000
7 61461-81A02-000 REINF, PARKING BRAKE LEVER 1 Rp460.000
8 61471-81A00-000 BRACKET, RR CONSOLE FR 1 Rp43.000
9 61472-81A00-000 BRACKET, RR CONSOLE RR 1 Rp147.500
10 61700-76J01-000 PANEL ASSY, CENTER FLOOR 1 Rp5.216.500
11 61717-55F10-000 REINF, LUGGAGE HOOK 2 Rp84.500
12 62111-57M00-000 PANEL, REAR FLOOR 1 Rp3.191.000
13 62112-76J00-000 REINF, REAR FLOOR 1 Rp571.500
14 62120-57M50-000 MEMBER, RR FLOOR 1 Rp1.601.500
15 62130-84A04-000 MEMBER, TAIL INNER 1 Rp2.880.000
16 62141-81A00-000 BRACKET, JACK 1 Rp138.000
17 62150-57M00-000 STRIKER, CHILD ANCHOR RH 1 Rp389.500
18 62160-57M00-000 STRIKER, CHILD ANCHOR LH 1 Rp386.500
19 62211-81A00-000 EXTENSION, BACK PLR CORNER RH 1 Rp334.000
20 62311-81A00-000 EXTENSION, BACK PLR CORNER LH 1 Rp334.000
21 62511-81A01-000 MEMBER, TAIL OUTER 1 Rp861.000
22 61511-81A01-000 REINF, FLOOR MEMBER NO.1 RH 1 Rp168.000
23 61521-81A01-000 REINF, FLOOR MEMBER NO.1 LH 1 Rp168.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
