ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

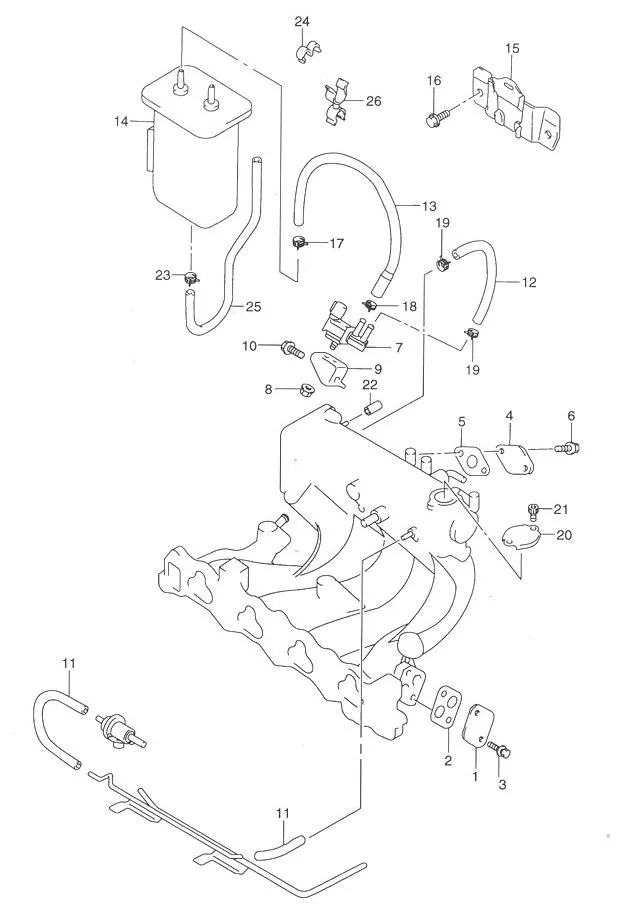

FIG.21 EMISSION CONTROL

FIG.21 EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18491-77E00-000 PLATE, EGR VALVE 1 Rp39.000
2 18529M77E01-000 GASKET 1 Rp5.500
3 01550-0816A-000
SUB: 01550M08163-000		 BOLT 2 Rp6.000
4 18492-77E00-000 PLATE, EGR PIPE 1 Rp33.000
5 18533-77E00-000 GASKET 1 Rp29.500
6 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
7 DISCONTINUE
SUB: 18117-52G00-000		 VALVE ASSY, DUTY FOUR PURGE 1 -
8 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
9 DISCONTINUE
SUB: 18417-66D00-000		 BRACKET, PURGE VALVE 1 -
10 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
11 09355-35006-601
SUB: 09355-35754-601		 HOSE, VAC (RGLTR TO PIPE) 2 Rp66.000 L:601!120
12 09355-54115-600 HOSE, VAC (VSV TO MANF) 1 Rp106.500 L:600!180
13 DISCONTINUE
SUB: 09359-35751-600		 HOSE, VAC (VSV TO CNSTR) 1 - L:600!270
14 18560-50G01-000 CANISTER 1 Rp1.185.500
15 DISCONTINUE
SUB: 18570-65D40-000		 BRACKET, CANISTER 1 -
16 01550-0812A-000
SUB: 01550B08123N000		 BOLT 2 Rp3.500
17 DISCONTINUE
SUB: 09401-06405-000		 CLIP 1 -
18 09401-08411-000 CLIP 1 Rp12.500
19 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500
20 DISCONTINUE
SUB: 18591-54D00-000		 PLATE, SENSOR 1 -
21 07130-0510B-000 BOLT 2 -
22 DISCONTINUE
SUB: 09250-04003-000		 PLUG, VAC 1 -
23 09401-12405-000
SUB: 09401-12404-000		 CLIP 1 Rp16.500
24 09408-00033-000
SUB: 09408B00033N000		 CLIP 1 Rp17.000
25 09355-70125-600 HOSE 1 Rp76.500 L:600!460
26 DISCONTINUE
SUB: 09408-00050-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
