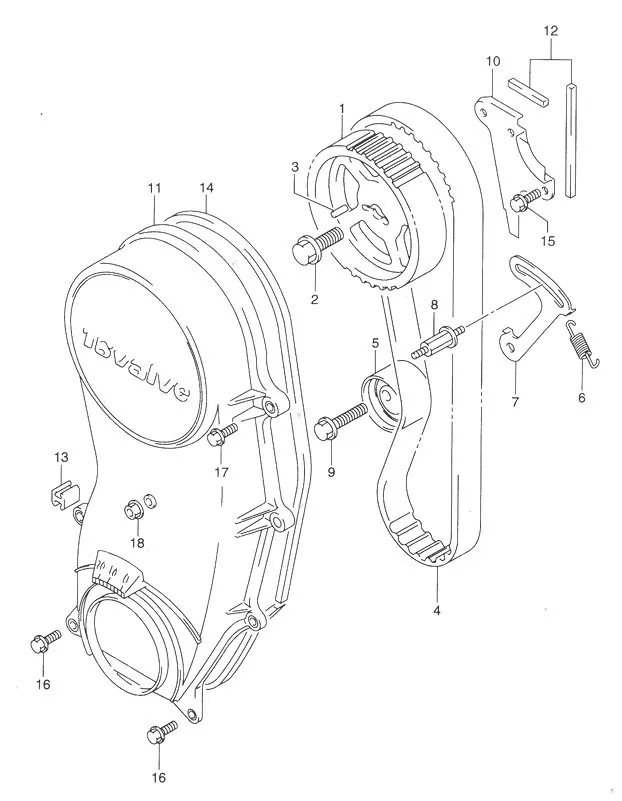

FIG.8 TIMING BELT

FIG.8 TIMING BELT
No No. Part Description Qty Price Per Pcs Remarks
1 12741-53B01-000 PULLEY, CAM SHAFT TIMING 1 Rp578.500
2 01550-1225A-000
SUB: 01550-12253-000		 BOLT 1 Rp6.000
3 09206-05001-000 PIN 1 Rp11.500
4 11407-71C00-000 BELT, TIMING 1 Rp677.500
5 12810-71C02-000 TENSIONER ASSY, TIMING BELT 1 Rp617.500
6 12821-71C00-000 SPRING, TENSIONER 1 Rp52.500
7 12822-70C00-000 PLATE, TENSIONER 1 Rp40.500
8 12825-71C02-000 BOLT, TENSIONER PLATE 1 Rp51.500
9 01550-0835B-000
SUB: 01550B08353N000		 BOLT 1 Rp4.500
10 11360-71C00-000 COVER, TIMING BELT INSIDE 1 Rp66.000
11 11390-71C00-000 COVER, TIMING BELT OUTSIDE 1 Rp409.000
12 11480-71C00-000 SEAL SET, INSIDE COVER 1 Rp48.500
13 11394-70B00-000 SEAL, WATER PUMP 1 Rp26.500 L:28!18.5
14 11396-71C00-000 SEAL, OUTSIDE COVER 1 Rp45.500
15 09103-06285-000
SUB: 09103-06083-000		 BOLT (6X12) 2 Rp9.000
16 01550-0616C-000
SUB: 09103-06186-000		 BOLT (6X16) 2 Rp3.500
17 01550-06207-000
SUB: 09103-06187-000		 BOLT (6X20) 6 Rp3.000
18 09159-06077-000 NUT 1 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
