ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

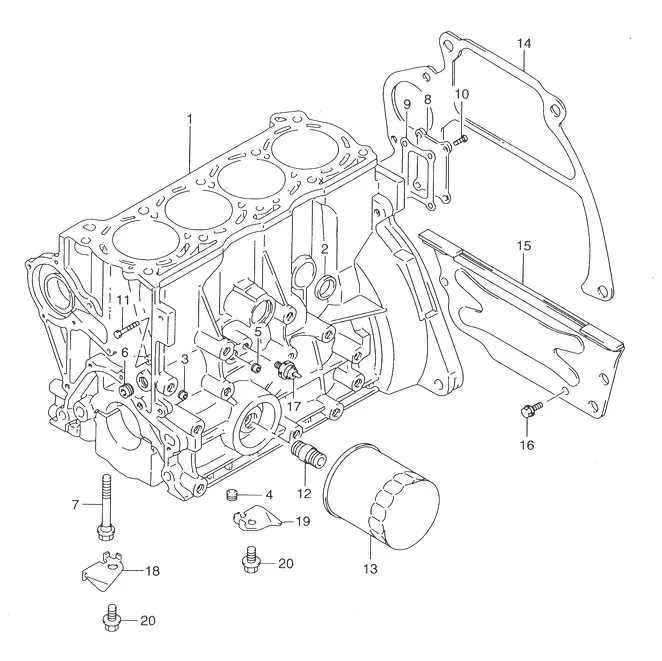

FIG.3 CYLINDER

FIG.3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200-77510-000 BLOCK ASSY, CYLINDER 1 -
2 09241M30010-000
SUB: 09241-30009-000		 •PLUG 4 Rp5.500
3 09246M05003-000
SUB: 09246M05006-000		 •PLUG, OIL GALLERY 1 Rp7.000
4 09246M06001-000
SUB: 09246M06002-000		 •PLUG, OIL GALLERY INNER 1 Rp19.500
5 09246M06001-000
SUB: 09246M06002-000		 •PLUG, OIL GALLERY OUTER 1 Rp19.500
6 09246-08002-000 •PLUG, OIL GALLERY 2 Rp21.500
7 11260-50G01-000 •BOLT, CRANK BEARING CAP 10 Rp41.500
8 11221-60A00-000 •PLATE, CYLINDER BLOCK 1 Rp53.500
9 11229-60A00-000
SUB: 11229-60A00L000		 •GASKET, CYLINDER BLOCK PLATE 1 Rp11.500
10 02122-0612A-000
SUB: 02122M06123-000		 •SCREW 4 Rp3.500
11 01500-0625A-000
SUB: 01500-06253-000		 •BOLT, TENSIONER SPRING 1 Rp2.000
12 11241-86FA0-000 STAND, OIL FILTER 1 Rp88.000
13-1 16510-61A32-000
SUB: 16510-61A01-000		 FILTER ASSY, OIL (TOKYO ROKI) 1 Rp164.000
13-2 16510-61A32-000
SUB: 16510-61A21-000		 FILTER ASSY, OIL (KNECHT) 1 Rp164.000
14 11311-60A01-000 PLATE, CLUTCH HOUSING UPPER 1 Rp459.500
15 DISCONTINUE
SUB: 11320-66D00-000		 PLATE, CLUTCH HOUSING LOWER 1 -
16 02162-0610A-000
SUB: 02162-06103-000		 BOLT 2 Rp5.000
17 37820-820P0-000
SUB: 37820-82001-000		 SWITCH ASSY, OIL PRESSURE 1 Rp127.500
18 11213-72F02-000
SUB: 11213-72F01-000		 PLATE, BREATHER FRONT 1 Rp43.500
19 11214-72F01-000 PLATE, BREATHER REAR 1 Rp40.500
20 01550-0816A-000
SUB: 01550M08163-000		 BOLT 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
