ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

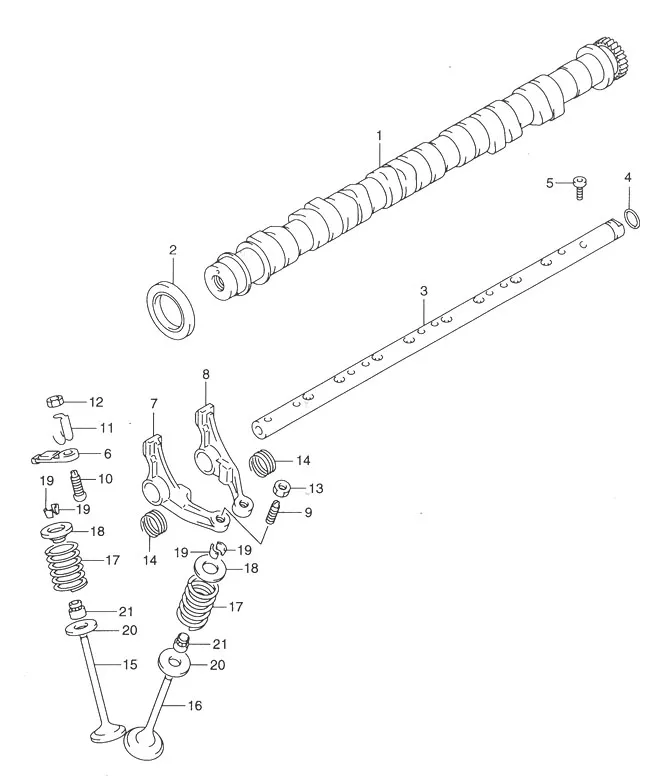

FIG.7 CAM SHAFT

FIG.7 CAM SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12710-66D00-000 CAM SHAFT 1 Rp4.353.000
2 12739M78L00-000
SUB: 09283M32042-000		 SEAL, OIL (32X47X6) 1 Rp35.000
3 12860-71C00-000 SHAFT, ROCKER ARM 1 Rp1.068.500
4 09280-12009-000 O RING 1 Rp17.500
5 07130-0616A-000
SUB: 07130-06163-000		 BOLT 6 Rp3.500
6 12841-71C00-000 ARM, VALVE ROCKER INTAKE 8 Rp235.000
7 DISCONTINUE
SUB: 12844-66D00-000		 ARM, VALVE ROCKER EXH NO.1 4 -
8 DISCONTINUE
SUB: 12845-66D00-000		 ARM, VALVE ROCKER EXH NO.2 4 -
9 12842M32411-000 SCREW, ADJUSTING 8 Rp11.000
10 12846M61D10-000
SUB: 12846M61D00-000		 SCREW, VALVE ADJUSTING 8 Rp16.500
11 12849-71C03-000 CLAMP, ROCKER ARM 8 Rp29.500
12 12843-32400-000 NUT, INTAKE 8 Rp19.000
13 12843-66D00-000 NUT, EXHAUST 8 Rp21.000
14 12891-71C00-000 SPRING 5 Rp38.500
15 12911-71C00-000 VALVE, INTAKE 8 Rp264.500
16 12915-71C50-000 VALVE, EXHAUST 8 Rp426.500
17 12921-71C01-000 SPRING, VALVE 16 Rp60.500
18 12931-71C20-000 RETAINER, VALVE SPRING 16 Rp42.000
19 12932-24400-000 COTTER, VALVE 32 Rp13.000
20 12933-71C00-000 SEAT, VALVE SPRING 16 Rp19.000
21 DISCONTINUE
SUB: 09289B05012N000		 SEAL, VALVE STEM 16 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
