ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

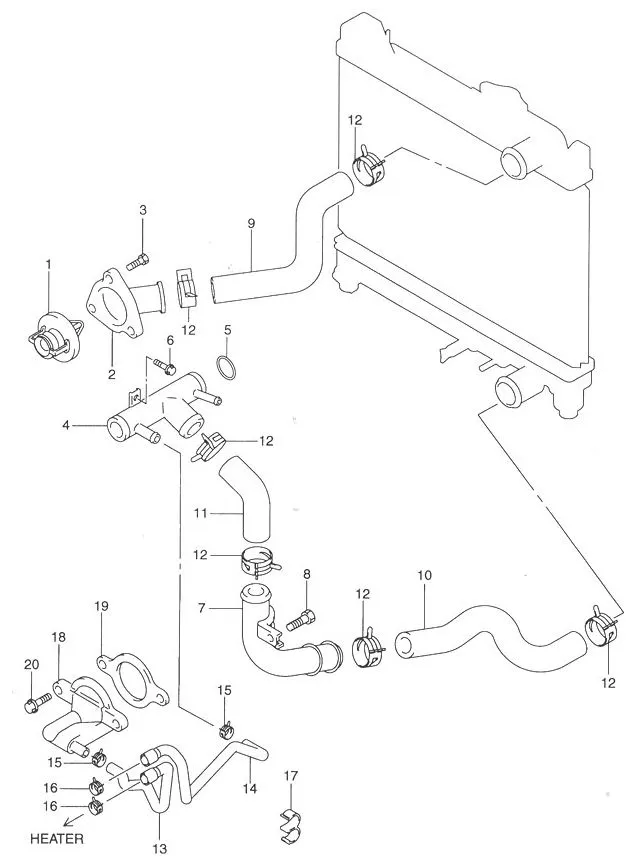

FIG.20 WATER HOSE

FIG.20 WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 17670-66M00-000
SUB: 17670-66D01-000		 THERMOSTAT, WATER 1 Rp285.500
2 17560-57L00-000
SUB: 17560-77EA0-000		 CAP, WATER THERMOSTAT 1 Rp185.000
3 01550-0620B-000
SUB: 01550-06203L000		 BOLT 3 Rp3.500
4 17550-66D00-000 PIPE, WATER INLET 1 Rp688.500
5 09280-28008-000
SUB: 09280B28008N000		 O RING 1 Rp2.500
6 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
7 17860-66D00-000 PIPE, RADIATOR OUTLET 1 Rp276.500
8 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
9 17841-66D00-000 HOSE, RADIATOR INLET 1 Rp216.500
10 17851-66D00-000 HOSE, RADIATOR OUTLET 1 Rp228.500
11 17852-66D00-000 HOSE, WATER INLET 1 Rp128.500
12 09401-35403-000
SUB: 09401-36403-000		 CLIP 6 Rp46.500
13 17871-66D20-000 HOSE, HEATER INLET 1 Rp199.500
14 17872-66D20-000 HOSE, HEATER OUTLET 1 Rp222.000
15 11199M68K00-000
SUB: 09401-18403-000		 CLIP 2 Rp11.000
16 09401-21405-000 CLIP 2 Rp25.000
17 09408-00182-000 CLIP 1 Rp25.500
18 17570-57B00-000 CAP, WATER OUTLET 1 Rp326.500
19 17699-60B02-000 GASKET, THERMOSTAT CASE 1 Rp47.500
20 01550-0825A-000
SUB: 01550-08253-000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
