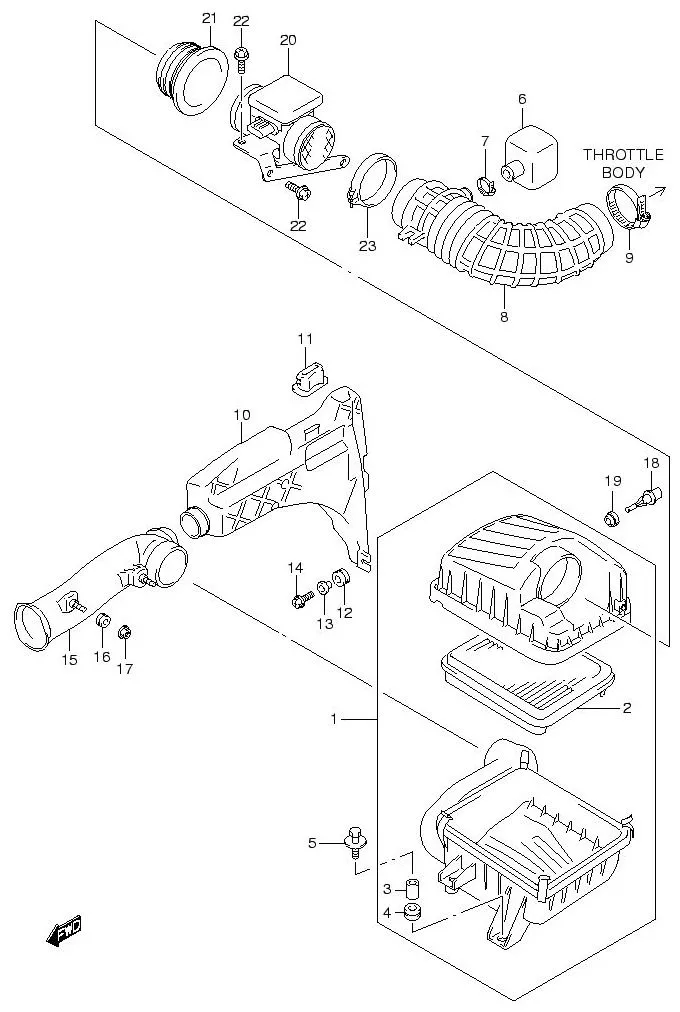

FIG.11 AIR CLEANER

FIG.11 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-65D02-000 CLEANER ASSY, AIR 1 Rp3.014.500
2 13780-77E00-000 •ELEMENT, AIR CLEANER 1 Rp308.000
3 13877-65D00-000 •SPACER 3 Rp45.000
4 13878-65D00-000 •CUSHION 3 Rp43.000
5 09116-06172-000 BOLT (6X30) 3 Rp19.500
6 DISCONTINUE
SUB: 13761-65D10-000		 RESONATOR, NO.2 1 -
7 DISCONTINUE
SUB: 13892-65D00-000		 CLAMP 1 -
8 13881-66D00-000 HOSE, OUTLET 1 Rp644.000
9 09402-70503-000
SUB: 09402-82511-000		 CLAMP 1 Rp91.500
10 DISCONTINUE
SUB: 13761-65D00-000		 RESONATOR 1 -
11 DISCONTINUE
SUB: 13765-65D00-000		 CUSHION, UPPER 1 -
12 DISCONTINUE
SUB: 09320-08047L000		 CUSHION (8.5X23X9.7) 1 -
13 09169M07007-000 WASHER 1 Rp10.000
14 02162-0620A-000
SUB: 02162-0620C-000		 BOLT 1 Rp5.500
15 DISCONTINUE
SUB: 13820-65D10-000		 CASE, AIR CLEANER SUCTION 1 -
16 DISCONTINUE
SUB: 13874-51E50-000		 CUSHION 2 -
17 09159-06081-000 NUT 2 Rp14.500
18 13650-52G00-000 SENSOR, INLET AIR TEMPERATURE 1 Rp762.500
19 13655-77E10-000
SUB: 13655-77E00-000		 GROMMET 1 Rp30.000
20 13800-65D00-000 SENSOR ASSY, MAF AIR FLOW 1 Rp8.895.000
21 13824-65D00-000 JOINT 1 Rp262.000
22 02162-0616A-000
SUB: 02162-06163L000		 BOLT 2 Rp3.000
23 DISCONTINUE
SUB: 13891-65D00-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
