ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

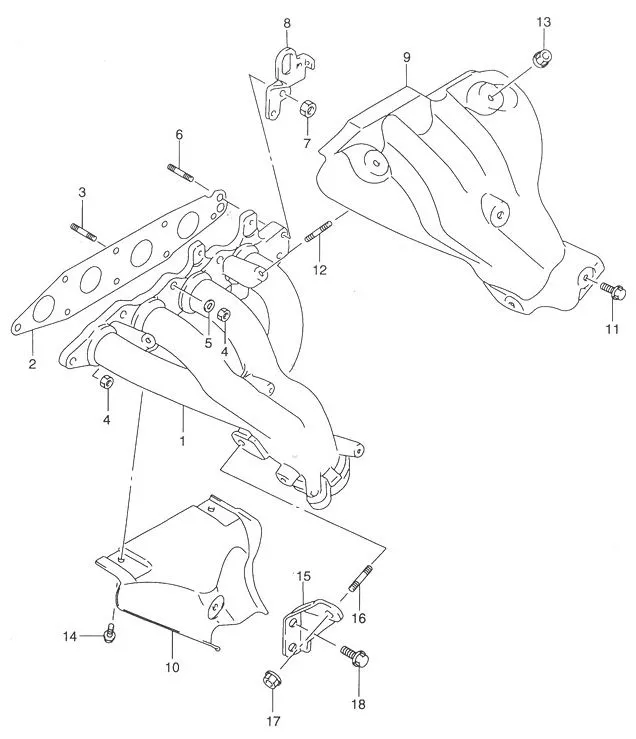

FIG.13 EXHAUST MANIFOLD

FIG.13 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 14111-58BV0-000		 MANIFOLD, EXHAUST 1 -
2 14140-52G00-000 GASKET, EXHAUST MANIFOLD 1 Rp171.000
3 09108-08246-000 STUD BOLT 7 Rp21.000
4 DISCONTINUE
SUB: 08310B00083N000		 NUT 7 -
5 08322M0108A-000
SUB: 08322M01083-000		 WASHER 6 Rp5.500
6 01421-0835A-000
SUB: 01421-08353-000		 STUD BOLT 2 Rp13.500
7 DISCONTINUE
SUB: 08310B00083N000		 NUT 2 -
8 DISCONTINUE
SUB: 11851-66D01-000		 HOOK, ENGINE 1 -
9 DISCONTINUE
SUB: 14120-58B02-000		 COVER, MANIFOLD UPPER 1 -
10 DISCONTINUE
SUB: 14130-58B00-000		 COVER, MANIFOLD LOWER 1 -
11 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 3 Rp21.500
12 01411-0612A-000
SUB: 01411M06123-000		 STUD BOLT 2 Rp11.500
13 09159-06077-000 NUT 2 Rp17.500
14 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 3 Rp21.500
15 DISCONTINUE
SUB: 14270-58B00-000		 STIFFENER, MANIFOLD 1 -
16 01411-1016A-000 STUD BOLT 1 Rp29.000
17 08316-1010A-000
SUB: 08316-10103-000		 NUT 1 Rp3.500
18 01550-1020A-000
SUB: 01550-10203-000		 BOLT 2 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
