ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

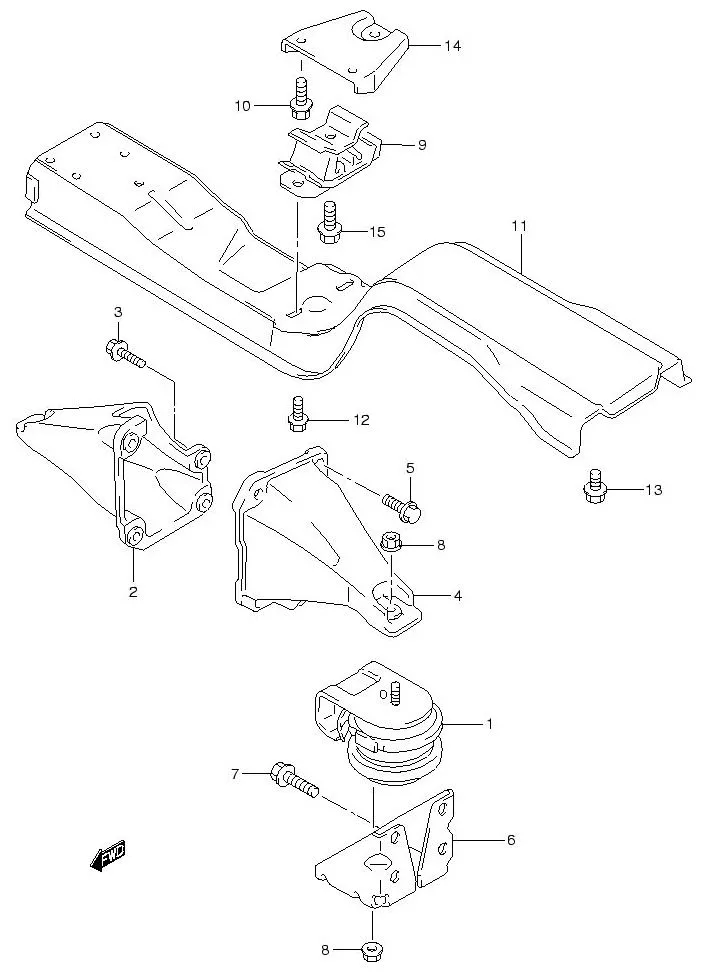

FIG.5 ENGINE MOUNTING

FIG.5 ENGINE MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 11610-65D00-000 MOUNTING, ENGINE FRONT 2 Rp1.679.500
2 DISCONTINUE
SUB: 11641-66D00-000		 BRACKET, ENGINE FR MOUNTING RH 1 -
3 01580-1050A-000 BOLT 3 -
4 11651-66D00-000 BRACKET, ENGINE FR MOUNTING LH 1 Rp1.178.000
5 01560-1030A-000 BOLT 4 -
6 DISCONTINUE
SUB: 11661-65D00-000		 BRACKET, FR MTG FRAME SIDE 2 -
7 DISCONTINUE
SUB: 09112-12001-000		 BOLT (12X35) 8 -
8 08316-1010A-000
SUB: 08316-10103-000		 NUT 6 Rp3.500
9 11710-65D03-000 MOUNTING, ENGINE REAR 1 Rp982.000
10 01560-1025A-000 BOLT 2 Rp21.500
11 DISCONTINUE
SUB: 11730-65D02-000		 MEMBER, ENGINE REAR MOUNTING 1 -
12 01560-1016A-000 BOLT 2 Rp21.500
13 DISCONTINUE
SUB: 09112-10006-000		 BOLT (10X25) 8 -
14 11741-77E11-000 BRACKET 1 Rp275.000
15 01560-1025A-000 BOLT 1 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
