ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

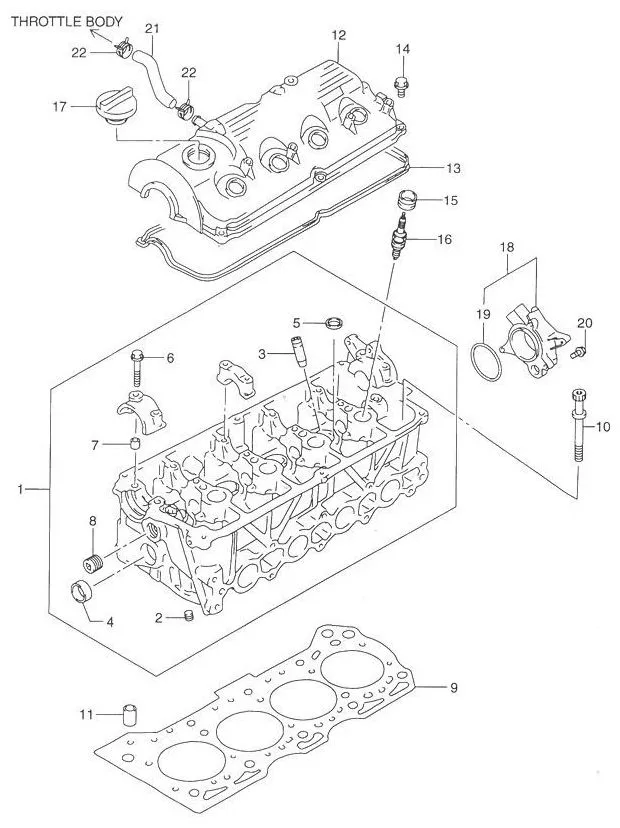

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-52G01-000 HEAD ASSY, CYLINDER 1 Rp15.466.000
2 11112-73010-000
SUB: 11112-73002-000		 •PLUG, OIL VENTURI 1 Rp24.000
3 11115-60B11-001 •GUIDE, VALVE 16 Rp118.000
4 09241M30010-000
SUB: 09241-30009-000		 •PLUG 1 Rp5.500
5 09241-20006-000 •PLUG 3 Rp18.000
6 09103-06132-000
SUB: 09103B06132N000		 •BOLT (6X41) 12 Rp3.500
7 09206-08001-000
SUB: 09206B08001N000		 •PIN (6.2X8X11) 12 Rp5.500
8 09246-16021-000
SUB: 09246-16010-000		 •PLUG 1 Rp48.000
9 11141-71C00-000 GASKET, CYLINDER HEAD 1 Rp697.000
10 11117-73G00-000 BOLT, CYLINDER HEAD 10 Rp58.500
11 04211M13189-000 PIN 2 Rp9.000
12 DISCONTINUE
SUB: 11170-66D00-000		 COVER, CYLINDER HEAD 1 -
13 11189-71C00-000 GASKET, CYLINDER HEAD COVER 1 Rp129.500
14 11178-71C10-000 BOLT, CYLINDER HEAD COVER 6 Rp17.500
15 11179-71C01-000 O RING, SPARK PLUG 4 Rp29.000
16-1 09482-00494-000 PLUG, SPARK (NGK,BKR6E-11) 4 -
16-2 09482-00508-000
SUB: 09482B00508N000		 PLUG, SPARK (DENSO,K20PR-U11) 4 Rp26.500
17 16920-83G02-000
SUB: 16920-83G00-000		 CAP, OIL FILLER 1 Rp149.500
18 11160-52810-000 CASE SET, DLI SENSOR 1 Rp391.000
19 11162-71C10-000 •O RING, DISTRIBUTOR CASE 1 Rp25.500
20 09103-06211-000 BOLT (6X25) 3 Rp19.500
21 11191-66D00-000 HOSE, BREATHER 1 Rp115.000
22 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
