  3. ESCUDO (SE416)
  4. Engine
  5. FIG.1 ENGINE GASKET SET

ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

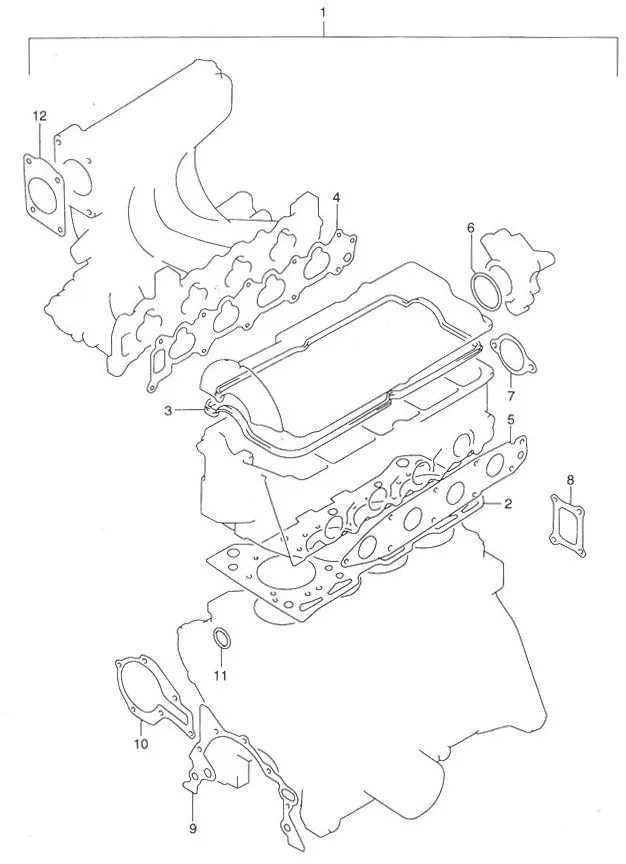

FIG.1 ENGINE GASKET SET

FIG.1 ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11400-65851-000 GASKET SET, ENGINE 1 Rp1.686.500
2 11141-71C00-000 •GASKET, CYLINDER HEAD 1 Rp697.000
3 11189-71C00-000 •GASKET, CYLINDER HEAD COVER 1 Rp129.500
4 13119-57B00-000 •GASKET, INTAKE MANIFOLD 1 Rp124.000
5 14140-52G00-000 •GASKET, EXHAUST MANIFOLD 1 Rp171.000
6 11162-71C10-000 •O RING, DISTRIBUTOR CASE 1 Rp25.500
7 17699-60B02-000 •GASKET, THERMOSTAT CASE 1 Rp47.500
8 11229-60A00-000
SUB: 11229-60A00L000		 •GASKET, CYLINDER BLOCK PLATE 1 Rp11.500
9 16119-60A05-001
SUB: 16119-60A05-000		 •GASKET, OIL PUMP 1 Rp39.500
10 17431-60A00-001
SUB: 17431-60A00L000		 •GASKET, WATER PUMP 1 Rp22.500
11 09280-28008-000
SUB: 09280B28008N000		 •O RING, WATER INLET PIPE 1 Rp2.500
12 13421-65D00-000 •GASKET, THROTTLE BODY 1 Rp49.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
