ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

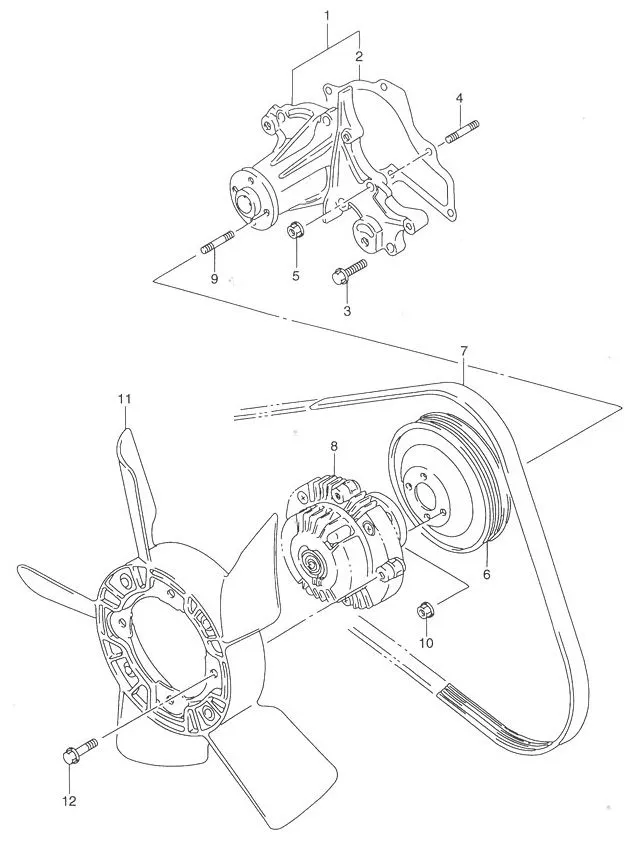

FIG.18 WATER PUMP

FIG.18 WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-61820-000 PUMP SET, WATER 1 Rp1.215.000
2 17431-60A00-001
SUB: 17431-60A00L000		 •GASKET 1 Rp22.500
3 09103-06066-000 BOLT (6X23) 4 Rp16.000
4 01421-0620A-000
SUB: 01421-06203-000		 STUD BOLT 2 Rp3.500
5 08316-1006A-000
SUB: 08316-10063L000		 NUT 2 Rp2.000
6 17511-57B00-000 PULLEY, WATER PUMP 1 Rp448.000
7 17521-86550-000
SUB: 17521-86500L000		 BELT, WATER PUMP 1 Rp64.500
8 17120-57B01-000 CLUTCH ASSY, FAN 1 Rp2.194.500
9 01411-0620A-000
SUB: 01411-06203-000		 STUD BOLT 4 Rp17.000
10 08316-1006A-000
SUB: 08316-10063L000		 NUT 4 Rp2.000
11 17110-60A00-000 FAN, ENGINE COOLING 1 Rp539.500
12 01550-0620B-000
SUB: 01550-06203L000		 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
