ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

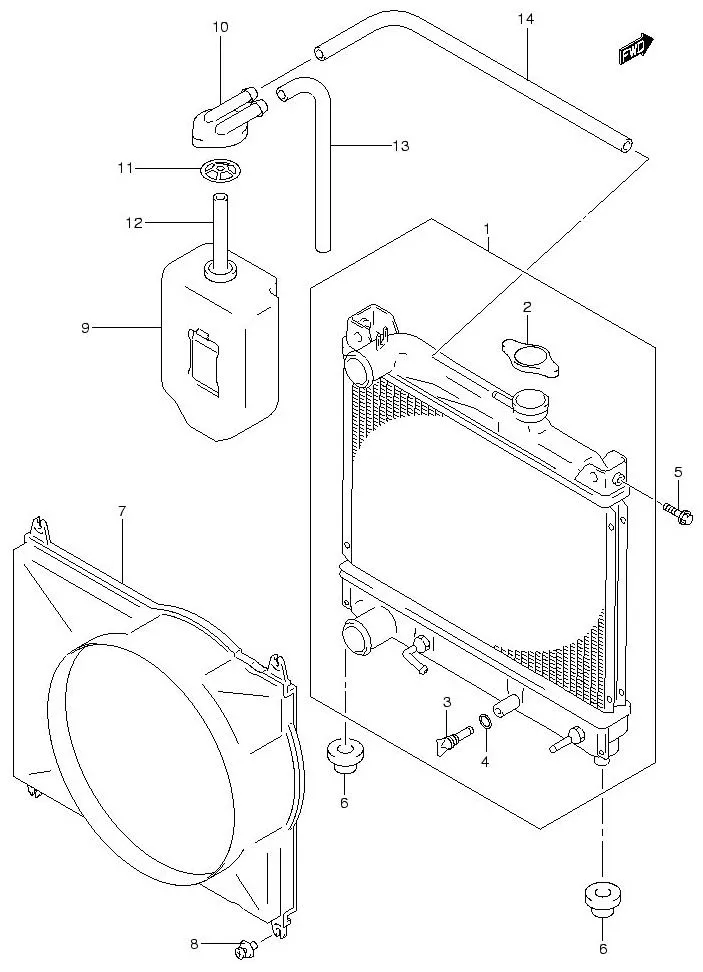

FIG.19 RADIATOR

FIG.19 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17700-66D02-000
SUB: 17700-66D01-000		 RADIATOR ASSY 1 Rp9.443.500
2 17920-66F01-000 •CAP 1 Rp273.000
3 17751-61A00-000
SUB: 17751B61A00N000		 •PLUG 1 Rp13.000
4 17759-72010-000 •O RING 1 Rp17.000
5 02162-0625A-000
SUB: 02162-06253-000		 BOLT 2 Rp3.500
6 17812-82000-000 BUSH, RADIATOR SUPPORT 2 Rp27.000
7 17761-66D01-000 SHROUD, FAN 1 Rp518.500
8 17795-65D00-000 CLIP 5 Rp20.500
9 17931-65D00-000 TANK, WATER RESERVE 1 Rp328.500
10 17932-60G10-000 CAP 1 Rp48.000
11 17933-60B00-000
SUB: 17933B60B00N000		 RUBBER 1 Rp5.500
12 09352-70111-600 HOSE, RESERVOIR TANK CAP 1 Rp82.500 L:600!190
13 17939-65D00-000 HOSE, RESERVOIR TANK VENT PIPE 1 Rp85.000
14 09352-70121-600 HOSE, RADIATOR TO TANK 1 Rp155.000 L:600!540

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
