ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

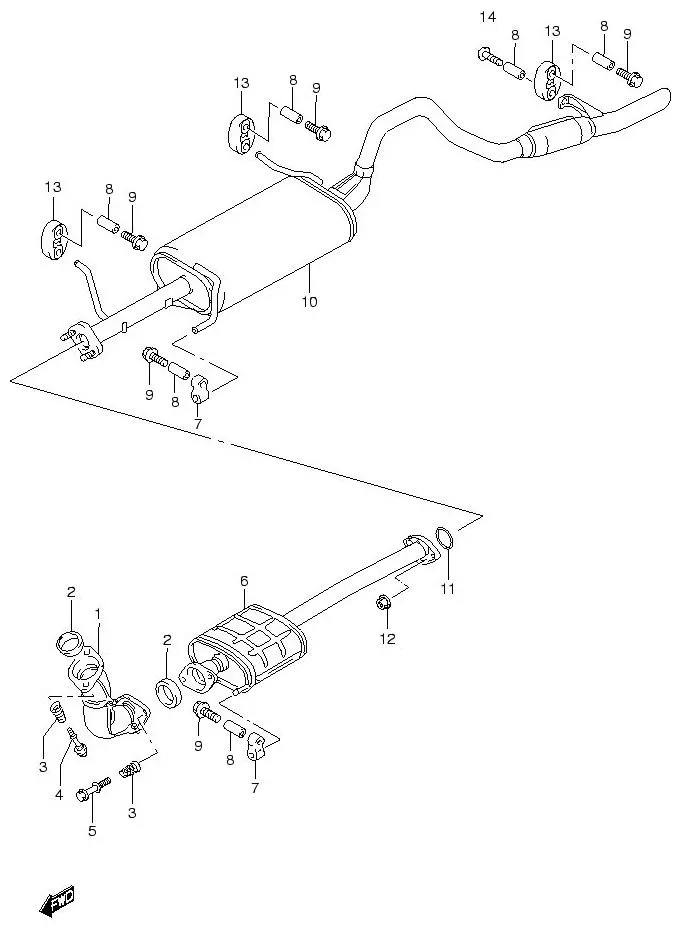

FIG.14 MUFFLER

FIG.14 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 14190-66D00-000		 PIPE, EXHAUST NO.1 1 -
2 14183-58B10-000
SUB: 14183-58B02-000		 RING, SEAL 2 Rp214.500
3 14492-67D00-000 SPRING 4 Rp64.000
4 09119-10073-000
SUB: 09119-10041-000		 BOLT (10X65) 2 Rp75.000
5 09119-10073-000
SUB: 09119-10042-000		 BOLT (10X65) 2 Rp75.000
6 DISCONTINUE
SUB: 14250-65D41L000		 PIPE, EXHAUST NO.2 1 -
7 14281-71C01-000 MOUNTING, MUFFLER 2 Rp87.500
8 09180M08095-000
SUB: 09180-08057-000		 SPACER (8.2X12.5X23.5) 6 Rp7.000
9 01550-0835B-000
SUB: 01550B08353N000		 BOLT 5 Rp4.500
10 DISCONTINUE
SUB: 14300-65D01L000		 MUFFLER 1 -
11 14182-58B10-000 GASKET, MUFFLER 1 Rp70.000
12 09159M10049-000 NUT 2 Rp10.500
13 14281-58B01-000 MOUNTING, MUFFLER 3 Rp139.500
14 DISCONTINUE
SUB: 09139-08019-000		 SCREW, MUFFLER MOUNTING 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
