ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

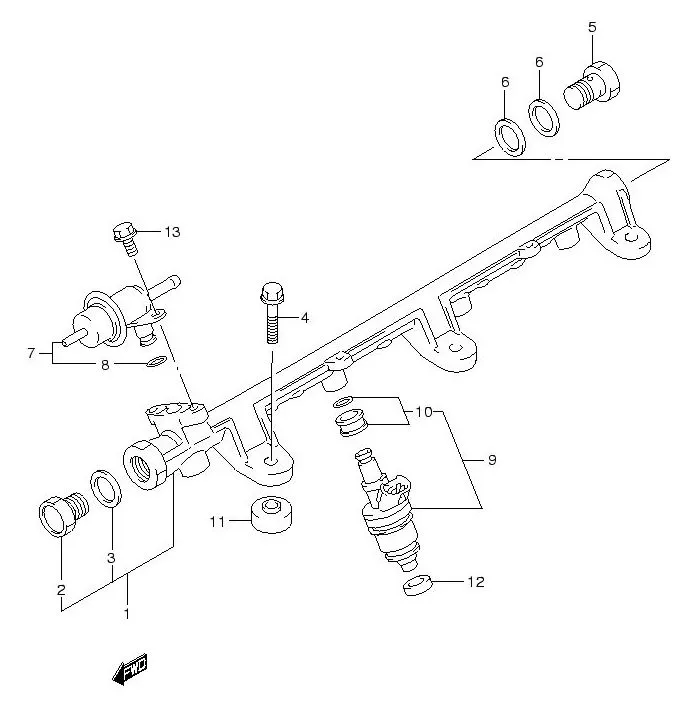

FIG.16 DELIVERY PIPE

FIG.16 DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 15700-66810-000		 PIPE SET, DELIVERY 1 -
2 09247-14029-000 •PLUG 1 Rp15.000
3 15762-61B01-000
SUB: 15762-61B00-000		 •GASKET 1 Rp26.500
4 01550-0835B-000
SUB: 01550B08353N000		 BOLT 3 Rp4.500
5 DISCONTINUE
SUB: 09360-14012-000		 BOLT 1 -
6 15762-61B01-000
SUB: 15762-61B00-000		 GASKET 2 Rp26.500
7 15610-67D00-000 REGULATOR, FUEL PRESSURE 1 Rp1.821.000
8 DISCONTINUE
SUB: 15710-51E10-000		 •O RING 1 -
9 15710-66D00-000 INDICATOR ASSY, FUEL 4 Rp2.463.500
10 15716-65DT0-000 •GROMMET SET 4 Rp157.000
11 15735-58B00-000 INSULATOR 3 Rp45.500
12 09320-09022-000
SUB: 09320-08062-000		 CUSHION 4 Rp8.500
13 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 2 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
