ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

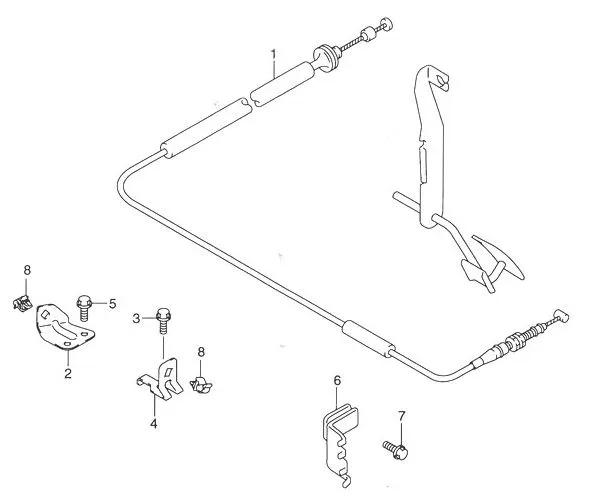

FIG.12 ACCELERATOR CABLE

FIG.12 ACCELERATOR CABLE
No No. Part Description Qty Price Per Pcs Remarks
1 15910-65D03-000 CABLE ASSY, ACCEL 1 -
2 DISCONTINUE
SUB: 15918-66D10-000		 BRACKET, CABLE CLAMP 1 -
3 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -
4 DISCONTINUE
SUB: 15918-65D10-000		 BRACKET, CABLE 1 -
5 02162-0610A-000
SUB: 02162-06103-000		 BOLT 1 Rp5.000
6 DISCONTINUE
SUB: 15919-65D00-000		 GUIDE, CABLE 1 -
7 01550-0616C-000
SUB: 09103-06186-000		 BOLT (6X16) 1 Rp3.500
8 18214-75F00-000
SUB: 09403-05313-000		 CLAMP 2 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
