ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

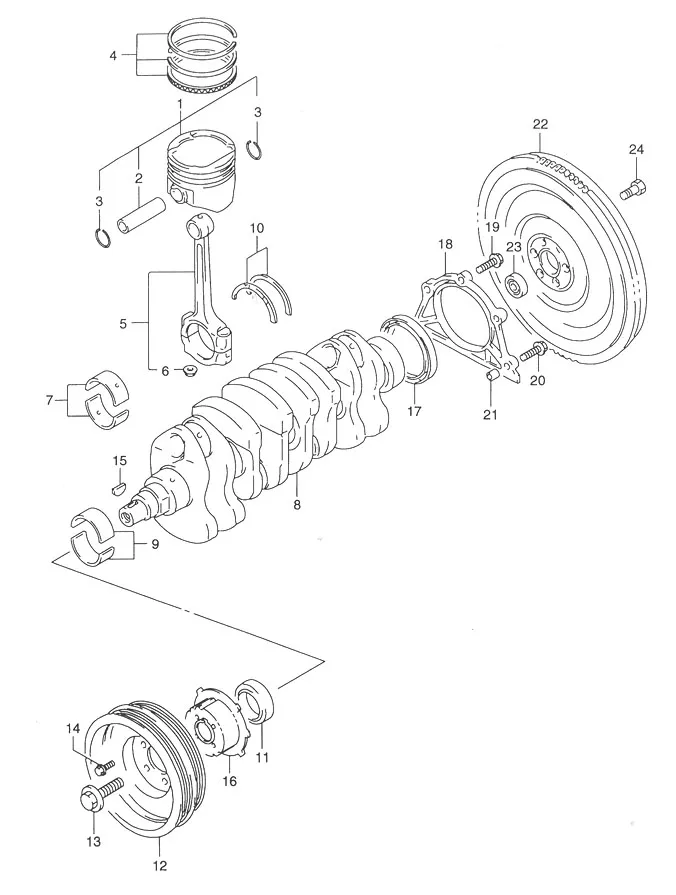

FIG.6 CRANK SHAFT

FIG.6 CRANK SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 12100-61860-0B0		 PISTON SET (STD,MARK 2) 4 -
1-3 12100-61860-050 PISTON SET (OS:0.50) 4 Rp823.500
1-1 12100-61860-0A0 PISTON SET (STD,MARK 1) 4 Rp818.000
2 12151-86501-000 •PIN, PISTON 4 Rp58.000
3 09381-19001-000 •RING, SNAP 8 Rp14.500
4-1 12140-61G50-000 RING SET, PISTON (STD) 4 Rp554.500
4-2 12140-61G50-050 RING SET, PISTON (OS:0.5) 4 Rp554.500
5 12160-71C20-000
SUB: 12160-71C00-000		 CONNROD ASSY 4 Rp1.013.500
6 09159M08033-000 •NUT 8 Rp14.000
7-1 12100-60822-0A0
SUB: 12100-60821-0A0		 BEARING SET, CONNROD 4 Rp166.000 STD,T:1.5
7-2 12100-60822-025
SUB: 12100-60821-025		 BEARING SET, CONNROD 4 Rp163.000 US:0.25,T:1.625
8 12221-71C00-000 CRANKSHAFT 1 Rp8.690.500
9-10 12300-58810-0EA BEARING SET, CRANKSHAFT (RED/BLUE) 5 Rp265.500 US:0.25,T:2.125
9-9 12300-58810-0DA BEARING SET, CRANKSHAFT (RED/YELLOW) 5 Rp256.500 US:0.25,T:2.125
9-8 12300-57820-0EA
SUB: 12300-58810-0CA		 BEARING SET, CRANKSHAFT (RED/NON) 5 Rp266.500 US:0.25,T:2.125
9-7 12300-57820-0DA
SUB: 12300-58810-0BA		 BEARING SET, CRANKSHAFT (RED/BLACK) 5 Rp297.500 US:0.25,T:2.125
9-6 12300-57820-0CA
SUB: 12300-58810-0AA		 BEARING SET, CRANKSHAFT (RED/GREEN) 5 Rp268.500 US:0.25,T:2.125
9-4 12340-58B00-0D0 BEARING SET, CRANKSHAFT (YELLOW) 5 Rp176.500 STD,T:2
9-3 12340-57K02-0E0
SUB: 12340-58B00-0C0		 BEARING SET, CRANKSHAFT (NON COLOR) 5 Rp198.500 STD,T:2
9-2 12340-57K02-0D0
SUB: 12340-58B00-0B0		 BEARING SET, CRANKSHAFT (BLACK) 5 Rp219.000 STD,T:2
9-1 12340-57K02-0C0
SUB: 12340-58B00-0A0		 BEARING SET, CRANKSHAFT (GREEN) 5 Rp190.500 STD,T:2
9-5 12340-58B00-0E0 BEARING SET, CRANKSHAFT (BLUE) 5 Rp192.000 STD,T:2
10-1 12300-78890-000
SUB: 12300-60820-000		 BEARING SET, CRANK THRUST 1 Rp172.500 STD,T:2.5
10-2 12300-78890-012
SUB: 12300-60820-012		 BEARING SET, CRANK THRUST 1 Rp167.500 OS:0.125,T:2.563
11 12739M78L00-000
SUB: 09283M32042-000		 SEAL, OIL (32X47X6) 1 Rp35.000
12 12610-61G00-000 PULLEY, CRANKSHAFT 1 Rp4.852.000
13 08341M31059-000 KEY 1 Rp4.500
14 12619-53B01-000 BOLT 1 Rp83.000
15 09103-06185-000 BOLT (6X20) 5 Rp14.500
16 12630-57B01-000 PULLEY, CRANK TIMING BELT 1 Rp405.000
17 09283-68002-000 SEAL, REAR OIL (68X86X8) 1 Rp254.500
18 11341-82001-000 HOUSING, OIL SEAL 1 Rp304.500
19 01550-0620B-000
SUB: 01550-06203L000		 BOLT 3 Rp3.500
20 DISCONTINUE
SUB: 01550B06253N000		 BOLT 2 -
21 04211M09109-000 PIN 2 Rp5.500
22 12620-60A01-000
SUB: 12620-60A01L000		 FLYWHEEL 1 Rp1.012.500
23 12623-60A00-000
SUB: 12623-60A00L000		 BEARING, INPUT SHAFT 1 Rp33.000
24 09100-10275-000 BOLT (10X18.5) 6 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
