ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

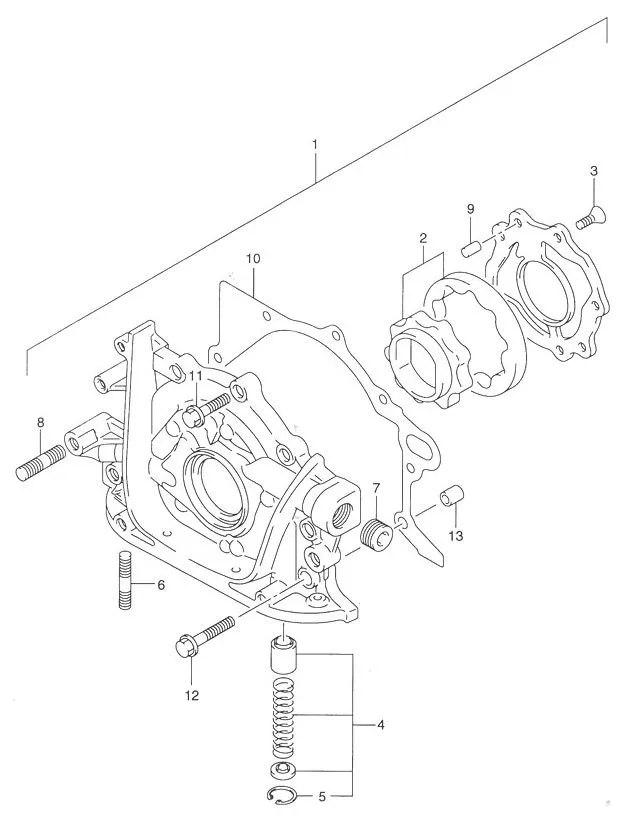

FIG.17 OIL PUMP

FIG.17 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100-60840-000
SUB: 16100-60817-000		 PUMP ASSY, OIL 1 Rp2.367.000
2 16130-60A00-000 •ROTOR SET, OIL PUMP 1 Rp717.000
3 09126-06007-000 •SCREW (6X14) 5 Rp16.500
4 16150-60A20-000
SUB: 16150-60A10-000		 •VALVE SET, OIL PUMP RELIEF 1 Rp74.000
5 DISCONTINUE
SUB: 08331-41156-000		 ••CIRCLIP 1 -
6 01411-0612A-000
SUB: 01411M06123-000		 •STUD BOLT 2 Rp11.500
7 09246-08002-000 •PLUG 2 Rp21.500
8 DISCONTINUE
SUB: 01411-08203-000		 •STUD BOLT 1 -
9 04221-06129-000 •PIN 2 Rp12.500
10 16119-60A05-001
SUB: 16119-60A05-000		 •GASKET, OIL PUMP 1 Rp39.500
11 DISCONTINUE
SUB: 01550B06253N000		 BOLT 4 -
12 01550-0635A-000
SUB: 01550-06353L000		 BOLT 3 Rp3.000
13 04211M09109-000 PIN 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
