ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

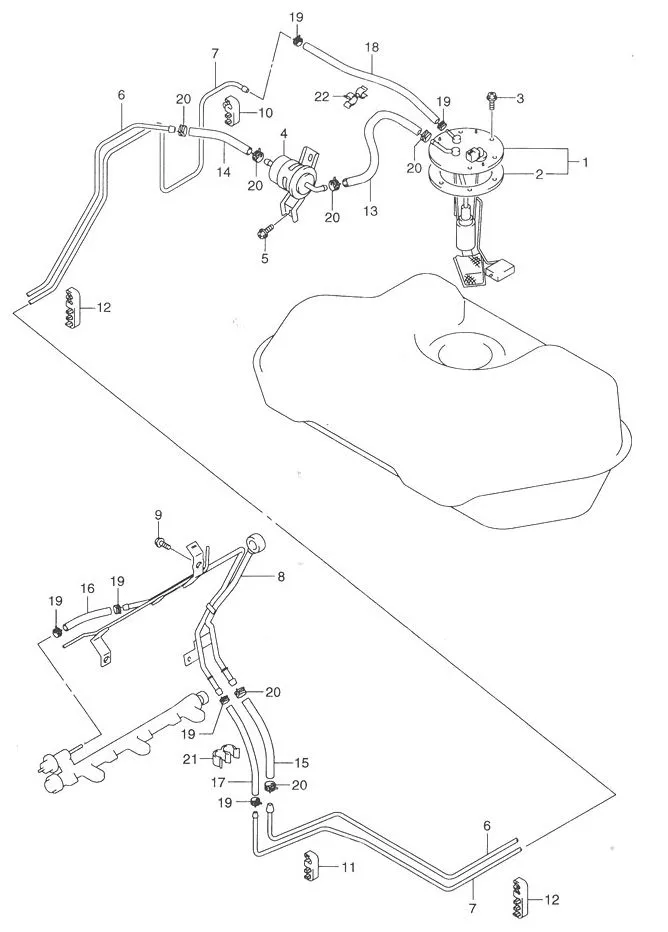

FIG.15 FUEL PUMP

FIG.15 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-65D70-000 PUMP ASSY, FUEL 1 Rp8.446.500
2 DISCONTINUE
SUB: 15111-65D00-000		 •GASKET, FUEL PUMP 1 -
3 02162-0610A-000
SUB: 02162-06103-000		 SCREW 6 Rp5.000
4 15410-65D00-000 FILTER, FUEL 1 Rp439.500
5 02162-0612B-000
SUB: 02162-06123-000		 BOLT 2 Rp16.000
6 DISCONTINUE
SUB: 15821-65D00-000		 PIPE, FUEL 1 -
7 DISCONTINUE
SUB: 15861-65D00-000		 PIPE, FUEL RETURN 1 -
8 DISCONTINUE
SUB: 15850-66D00-000		 PIPE, FUEL (ENGINE SIDE) 1 -
9 DISCONTINUE
SUB: 01550B06123N000		 BOLT 3 -
10 DISCONTINUE
SUB: 15893-56B00-000		 CLAMP, FUEL PIPE 2 -
11 15893-60A11-000 CLAMP, FUEL PIPE 3 Rp27.000
12 DISCONTINUE
SUB: 15895-60A11-000		 CLAMP, FUEL PIPE 8 -
13 DISCONTINUE
SUB: 15815-65D00-000		 HOSE, FUEL (FILTER INLET) 1 -
14 09356-75147-600 HOSE, FUEL (FILTER OUTLET) 1 Rp464.000 L:600!130
15 09356-75147-600 HOSE, PIPE TO ENG 1 Rp464.000 L:600!290
16 09356-55117-600 HOSE, ENG SIDE 1 Rp666.000 L:600!100
17 09356-55117-600 HOSE, ENG TO PIPE 1 Rp666.000 L:600!290
18 09356-55117-600 HOSE, PIPE TO PUMP 1 Rp666.000 L:600!350
19 09401-10409-000
SUB: 09401B10409N000		 CLIP, FUEL RTN 6 Rp7.500
20 09401-13419-000 CLIP, FUEL HOSE 6 Rp26.500
21 DISCONTINUE
SUB: 09408-00083-000		 CLAMP 2 -
22 DISCONTINUE
SUB: 09408-00174-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
