ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

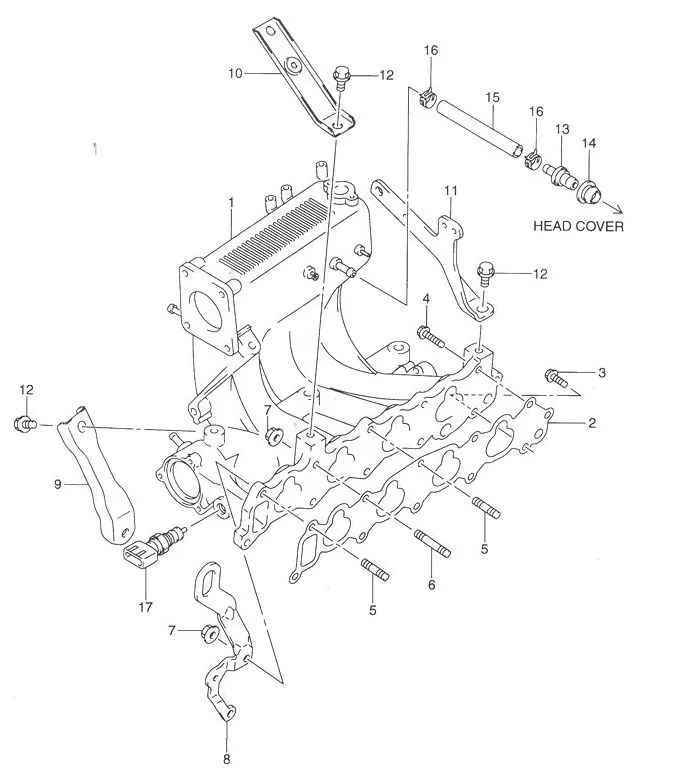

FIG.9 INTAKE MANIFOLD

FIG.9 INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 13110-66D11-000		 MANIFOLD, INTAKE 1 -
2 13119-57B00-000 GASKET 1 Rp124.000
3 01550-0825A-000
SUB: 01550-08253-000		 BOLT 1 Rp3.500
4 01550-0835B-000
SUB: 01550B08353N000		 BOLT 2 Rp4.500
5 01421-0825A-000
SUB: 01421-08253-000		 STUD BOLT 7 Rp13.000
6 01421-0835A-000
SUB: 01421-08353-000		 STUD BOLT 1 Rp13.500
7 08316-1008A-000
SUB: 08316B10083N000		 NUT 8 Rp3.500
8 DISCONTINUE
SUB: 11852-66D02-000		 HOOK, ENGINE 1 -
9 DISCONTINUE
SUB: 13161-66D00-000		 STIFFENER, INTAKE MANIFOLD RR 1 -
10 DISCONTINUE
SUB: 13166-66D00-000		 STIFFENER, INTAKE MANIFOLD FR 1 -
11 DISCONTINUE
SUB: 13627-58B00-000		 STIFFENER, INTAKE MANIFOLD NO. 1 -
12 01550-1020A-000
SUB: 01550-10203-000		 BOLT 6 Rp21.000
13 18118-58B00-000 VALVE, PCV 1 Rp147.000
14 11198M79F00-000
SUB: 11198M58B00-000		 SEAL, PCV VALVE 1 Rp16.500
15 09354-80153-600 HOSE 1 Rp215.500 L:600!120
16 09401-13414-000 CLAMP 2 Rp18.000
17 13650-50G01-000 SENSOR, WATER TEMPERATURE 1 Rp680.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
