ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

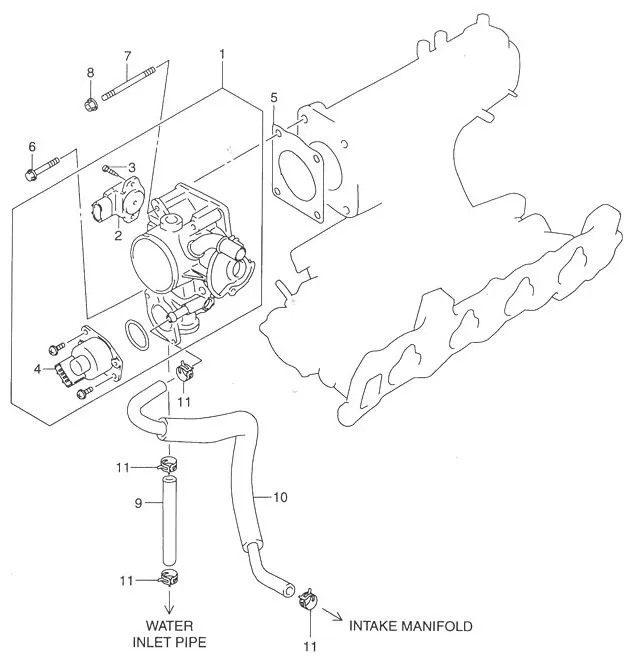

FIG.10 THROTTLE BODY

FIG.10 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-66D00-000 BODY ASSY, THROTTLE 1 Rp14.381.000
2 13420-65D01-000
SUB: 13420-65D00-000		 •SENSOR, THROTTLE POSITION 1 Rp2.687.000
3 DISCONTINUE
SUB: 13428-65D00-000		 •SCREW 2 -
4 18137-65D00-000 •VALVE, ISC 1 Rp3.164.000
5 13421-65D00-000 GASKET, THROTTLE BODY 1 Rp49.000
6 01550-0850B-000
SUB: 01550-08503-000		 BOLT 2 Rp24.500
7 01421-0850A-000
SUB: 01421-08503-000		 STUD BOLT 2 Rp16.500
8 08316-1008A-000
SUB: 08316B10083N000		 NUT 2 Rp3.500
9 09356-75141-600 HOSE, WATER THROT BODY INLET 1 Rp73.500 L:600!100
10 13494-66D01-000 HOSE, WATER THROT BODY OUTLET 1 Rp178.000
11 09401-12410-000 CLIP 4 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
