ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTINGFIG.6 CRANK SHAFTFIG.7 CAM SHAFTFIG.8 TIMING BELTFIG.9 INTAKE MANIFOLDFIG.10 THROTTLE BODYFIG.11 AIR CLEANERFIG.12 ACCELERATOR CABLEFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

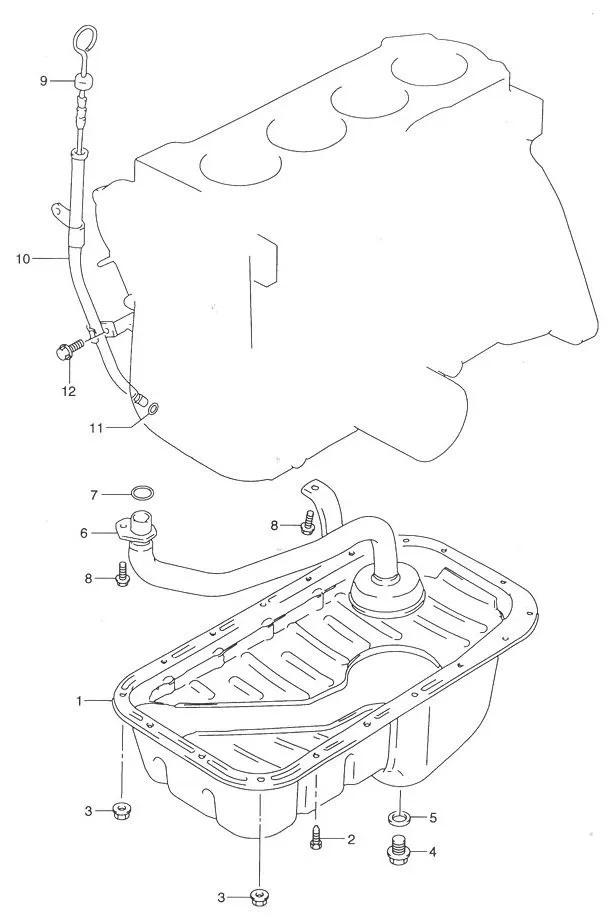

FIG.4 OIL PAN

FIG.4 OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11510-60A10-000 PAN, OIL 1 Rp1.363.500
2 09117-06061-000 BOLT (6X16) 16 Rp17.000
3 09159-06077-000 NUT 2 Rp17.500
4 09247-14044-000
SUB: 09247M14027-000		 PLUG, OIL DRAIN (14X11.5) 1 Rp18.000
5 09168-14015-000
SUB: 09168M14015-000		 GASKET (14X20X1.5) 1 Rp7.500
6 16520-58B00-000 STRAINER, OIL PUMP 1 Rp697.000
7 51181-37B00-000
SUB: 09280B17002N000		 O RING 1 Rp5.000
8 07120-0612A-000
SUB: 07120-06123-000		 BOLT 2 Rp16.500
9 16910-66D00-000 GAUGE, OIL LEVEL 1 Rp171.000
10 DISCONTINUE
SUB: 16930-64B02-000		 GUIDE, OIL LEVEL GAUGE 1 -
11 09280-10016-000 O RING 1 Rp19.500
12 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 2 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
