ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

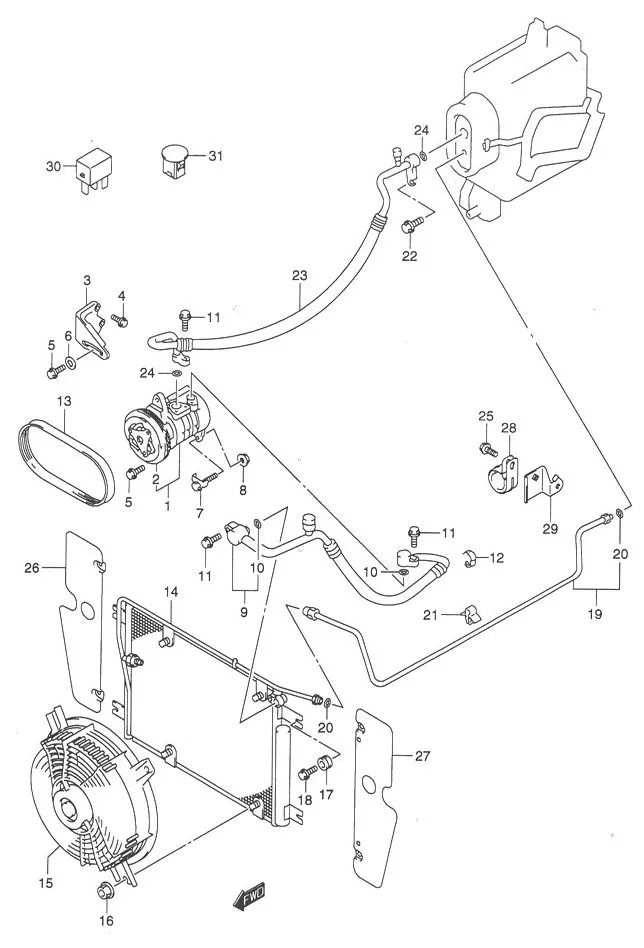

FIG.102 AIR CONDITIONER

FIG.102 AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 95200B67D10N000		 COMPRESSOR & MAGNET CLUTCH 1 -
2 DISCONTINUE
SUB: 95210B67D10N000		 •CLUTCH, MAGNET 1 -
3 DISCONTINUE
SUB: 95120-68A50-000		 ST6AY, COMPRESSOR 1 -
4 01550-0830B-000
SUB: 01550-08303L000		 BOLT 2 Rp3.000
5 01550-0825A-000
SUB: 01550-08253-000		 BOLT 2 Rp3.500
6 DISCONTINUE
SUB: 09160-08501-000		 WASHER (8.5X24X2.3) 1 -
7 DISCONTINUE
SUB: 95911-50G00-000		 BOLT, COMPRESSOR 1 -
8 08316-1008A-000
SUB: 08316B10083N000		 NUT 1 Rp3.500
9 DISCONTINUE
SUB: 95720-67D21-000		 HOSE, COMPRESSOR DISCHARGE 1 -
10 DISCONTINUE
SUB: 95895-50G20-000		 •O RING (D:2.4,1D:10.8) 2 -
11 DISCONTINUE
SUB: 01550B06253N000		 BOLT 3 -
12 DISCONTINUE
SUB: 09408-00184-000		 CLAMP, COMPRESSOR HARNESS 2 -
13 95141-64AB0-000
SUB: 95141B64AB0N000		 V BELT (4PK950) 1 Rp102.500
14 DISCONTINUE
SUB: 95310-67D60L000		 CONDENSER 1 -
15 DISCONTINUE
SUB: 95560B67D11N000		 FAN ASSY 1 -
16 08316-1006A-000
SUB: 08316-10063L000		 NUT 6 Rp2.000
17 DISCONTINUE
SUB: 95851-60B00-000		 BUSH, CONDENSER 4 -
18 09116-06171-000
SUB: 09116-06129-000		 BOLT (6X30) 4 Rp20.500
19 DISCONTINUE
SUB: 95731B67D01N000		 PIPE, LIQUID 1 -
20 DISCONTINUE
SUB: 95891-50G20-000		 •O RING (D:1.8,ID:6.7) 2 -
21 DISCONTINUE
SUB: 09403-08329-000		 CLAMP, PIPE LIQUID 1 -
22 01550-0620B-000
SUB: 01550-06203L000		 BOLT 1 Rp3.500
23 DISCONTINUE
SUB: 95710-67D21-000		 HOSE, COMPRESSOR SUCTION 1 -
24 DISCONTINUE
SUB: 95896-50G20-000		 •O RING (D:2.4,ID:13.4) 2 -
25 02162-0612B-000
SUB: 02162-06123-000		 BOLT 2 Rp16.000
26 DISCONTINUE
SUB: 95821B65D00N000		 INSULATOR, RADIATOR SIDE RH 1 -
27 DISCONTINUE
SUB: 95822B65D00N000		 INSULATOR, RADIATOR SIDE LH 1 -
28 DISCONTINUE
SUB: 95772B70C51N000		 CLAMP, SUCT HOSE 1 -
29 DISCONTINUE
SUB: 95781B65D00N000		 STAY, SUCT HOSE CLAMP 1 -
30 38860-76F01-000
SUB: 38860B76F01N000		 RELAY 2 Rp47.000
31 DISCONTINUE
SUB: 74523-54J00-P4Z		 CAP 1 -
31 DISCONTINUE
SUB: 74523-54J00-P4Z		 CAP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
