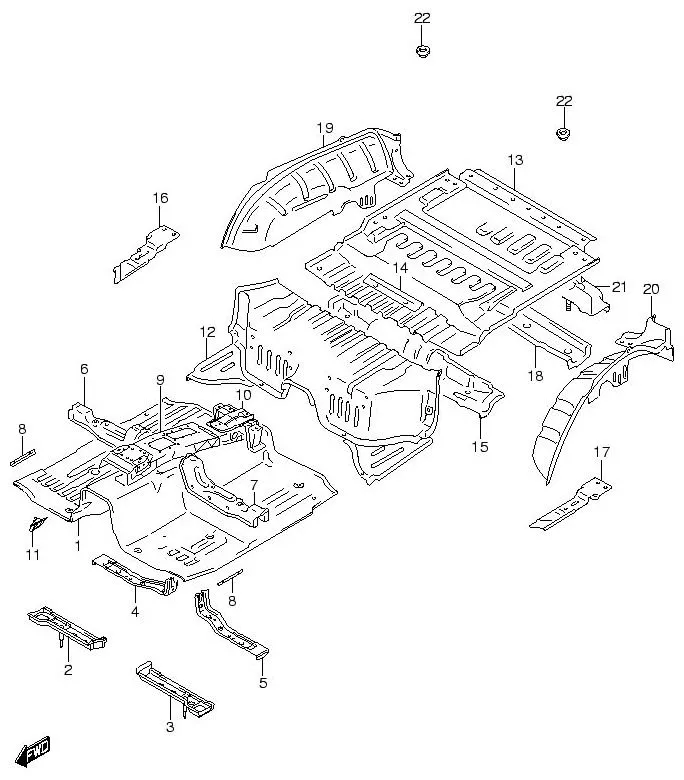

FIG.69 FLOOR PANEL

FIG.69 FLOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 61411-65D30-000		 PANEL, MAIN FLOOR 1 -
2 61420-65D00-000 MEMBER, FRONT FLOOR NO.1 RH 1 -
3 DISCONTINUE
SUB: 61520-65D00-000		 MEMBER, FRONT FLOOR NO.1 LH 1 -
4 DISCONTINUE
SUB: 61430-52D00-000		 MEMBER, FRONT FLOOR NO.2 RH 1 -
5 DISCONTINUE
SUB: 61530-65D10-000		 MEMBER, FRONT FLOOR NO.2 LH 1 -
6 DISCONTINUE
SUB: 61441-65D10-000		 MEMBER, FRONT SEAT RH 1 -
7 DISCONTINUE
SUB: 61541-65D10-000		 MEMBER, FRONT SEAT LH 1 -
8 DISCONTINUE
SUB: 61461-65D00-000		 REINF, FRONT FLOOR SIDE 2 -
9 DISCONTINUE
SUB: 61610-65D10-000		 REINF, FLOOR TUNNEL 1 -
10 DISCONTINUE
SUB: 61630-65D20-000		 BRACKET, PARKING BRAKE 1 -
11 DISCONTINUE
SUB: 61651-65D10-000		 BRACKET, FOOT REST PEDAL 1 -
12 DISCONTINUE
SUB: 61700-65D01-000		 PANEL ASSY, CENTER FLOOR 1 -
13 DISCONTINUE
SUB: 62111-65D51-000		 PANEL, RR FLOOR 1 -
14 DISCONTINUE
SUB: 62112-65D00-000		 BRACKET, RR SEAT LOCK 1 -
15 DISCONTINUE
SUB: 62120-65D50-000		 PANEL, RR FLOOR NO.1 1 -
16 DISCONTINUE
SUB: 62131-65D00-000		 REINF, RR SEAT BELT SIDE RH 1 -
17 DISCONTINUE
SUB: 62132-65D00-000		 REINF, RR SEAT BELT SIDE LH 1 -
18 DISCONTINUE
SUB: 62141-65D10-000		 MEMBER, RR FLOOR NO.2 1 -
19 DISCONTINUE
SUB: 62210-65D00-000		 PANEL, RR WHEEL HSG INNER RH 1 -
20 DISCONTINUE
SUB: 62310-65D00-000		 PANEL, RR WHEEL HSG INNER LH 1 -
21 DISCONTINUE
SUB: 62510-65D11-000		 MEMBER, RR FLOOR TAIL 1 -
22 DISCONTINUE
SUB: 65971-77E10-000		 CAP, RR FLOOR 3 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
