ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

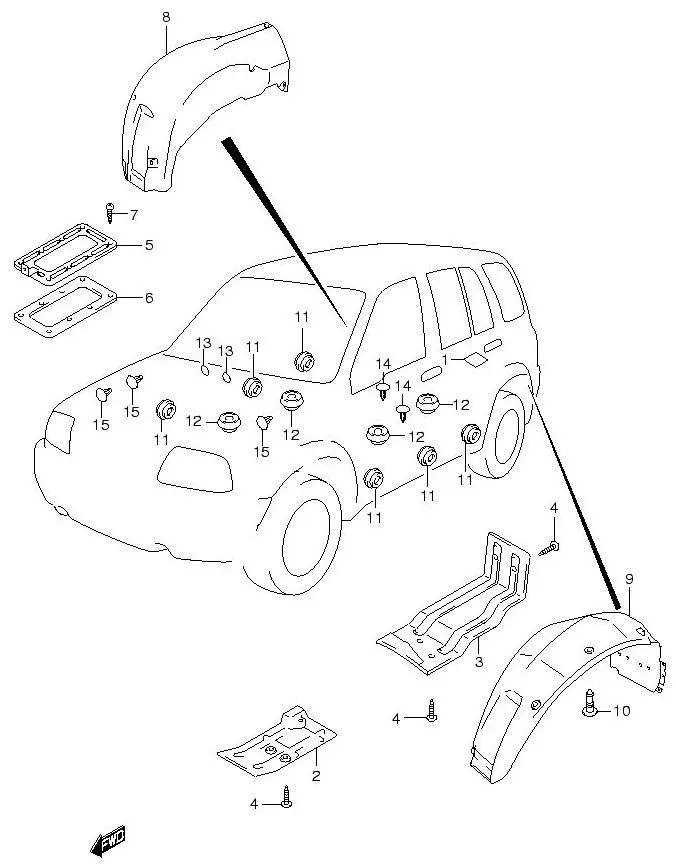

FIG.81 CAP/COVER

FIG.81 CAP/COVER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 84761-50X50-000		 SEAL, RR COIL SPRING BRACKET 2 -
2 DISCONTINUE
SUB: 75511-65D10-000		 PANEL, HEAT PROTECTOR FR 1 -
3 DISCONTINUE
SUB: 75512-65D00-000		 PANEL, HEAT PROTECTOR RR 1 -
4 03141M0612A-000
SUB: 03141-06123-000		 SCREW 7 Rp4.500
5 DISCONTINUE
SUB: 75810-60A00-000		 COVER, FLOOR TUNNEL 1 -
6 DISCONTINUE
SUB: 75812-60A10-000		 SEAL, FLOOR TUNNEL 1 -
7 03141M0612A-000
SUB: 03141-06123-000		 SCREW 8 Rp4.500
8 75521-65D10-000 LINING, RR WHEEL HOUSING RH 1 Rp1.227.000
9 75531-65DA0-000 LINING, RR WHEEL HOUSING LH 1 Rp1.256.000
10 09409M07L01-000
SUB: 09409M07332-000		 CLIP 17 Rp5.000
11 09250-25007-000 CAP, SIDE SILL INNER 6 Rp10.500
12 09250-30002-000
SUB: 09250-30010-000		 CAP, FLOOR 4 Rp5.500
13 DISCONTINUE
SUB: 84761-50X50-000		 SEAL, COMPLIANCE PLATE HOLE (140X190) 2 - CUT AS REQUIRED
14 DISCONTINUE
SUB: 09409-09305-000		 CLIP, REAR FLOOR 2 -
15 DISCONTINUE
SUB: 09409-07320-000		 CLIP 3 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
