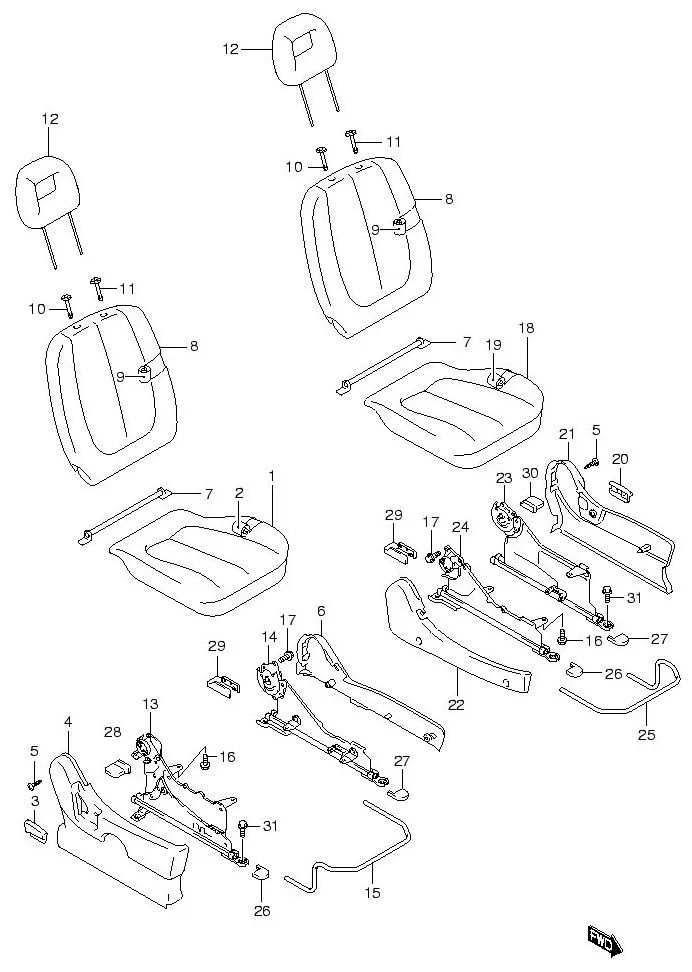

FIG.98 FRONT SEAT

FIG.98 FRONT SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 85105B82DN0N000		 CUSHION SUB ASSY, FRONT 1 -
2 DISCONTINUE
SUB: 85180B82DN0N000		 TRIM, FRONT CUSHION (GRAY) 1 -
3 DISCONTINUE
SUB: 85211-65DA0-P4Z		 KNOB, RECLINING RH (GRAY) 1 -
4 DISCONTINUE
SUB: 85220-65DA0-P4Z		 COVER, RECLINING OUTSIDE RH (GRAY) 1 -
5 03241-0516A-000
SUB: 03242-05163-000		 SCREW 6 Rp17.000
6 DISCONTINUE
SUB: 85241-65DA0-P4Z		 COVER, RECLINING INSIDE RH (GRAY) 1 -
7 DISCONTINUE
SUB: 85250-65DA0-000		 ROD, FRONT SEAT ADJUSTER 2 -
8 DISCONTINUE
SUB: 85305B82DN0N000		 BACK SUB ASSY, FRONT 2 -
9 DISCONTINUE
SUB: 85380B82DN0N000		 TRIM, FRONT BACK (GRAY) 2 -
10 DISCONTINUE
SUB: 85341-72C10-T01		 GUIDE, HEADRESTRAINT (GRAY) 2 -
11 DISCONTINUE
SUB: 85840-72C10-T01		 GUIDE, HEADRESTRAINT (GRAY) 2 -
12 DISCONTINUE
SUB: 86401B82DN0NR9P		 HEADRESTRAINT ASSY (GRAY) 2 -
13 DISCONTINUE
SUB: 86603-65DA0-000		 ADJUSTER ASSY, FR OUTSIDE RH 1 -
14 DISCONTINUE
SUB: 86601-65DA0-000		 ADJUSTER ASSY, FR INSIDE RH 1 -
15 DISCONTINUE
SUB: 86691-65DA0-000		 HANDLE, FR SEAT ADJUSTER 1 -
16 01550-0812A-000
SUB: 01550B08123N000		 BOLT 8 Rp3.500
17 01550-1020A-000
SUB: 01550-10203-000		 BOLT 8 Rp21.000
18 DISCONTINUE
SUB: 85105B82DN0N000		 CUSHION SUB ASSY, FRONT 1 -
19 DISCONTINUE
SUB: 85180B82DN0N000		 TRIM, FRONT CUSHION (GRAY) 1 -
20 DISCONTINUE
SUB: 85711-65DA0-P4Z		 KNOB, RECLINING LH (GRAY) 1 -
21 DISCONTINUE
SUB: 85720-65DA0-P4Z		 COVER, RECLINING OUTSIDE LH (GRAY) 1 -
22 DISCONTINUE
SUB: 85741-65DA0-P4Z		 COVER, RECLINING INSIDE LH (GRAY) 1 -
23 DISCONTINUE
SUB: 86604-65DA0-000		 ADJUSTER ASSY, FR OUTSIDE LH 1 -
24 DISCONTINUE
SUB: 86602-65DA0-000		 ADJUSTER ASSY, FR INSIDE LH 1 -
25 DISCONTINUE
SUB: 86891-65DA0-000		 HANDLE, FRONT SEAT ADJUSTER 1 -
26 DISCONTINUE
SUB: 85491-65DA0-P4Z		 COVER, ADJUSTER FR RH (GRAY) 2 -
27 85492-65DA0-P4Z COVER, ADJUSTER FR LH (GRAY) 2 Rp51.500
28 DISCONTINUE
SUB: 85496-65DA0-P4Z		 COVER, ADJUSTER OUTSIDE RH (GRAY) 1 -
29 85495-65DA0-P4Z COVER, ADJUSTER BRACKET INSIDE (GRAY) 2 Rp63.500
30 DISCONTINUE
SUB: 85996-65DA0-P4Z		 COVER, ADJUSTER OUTSIDE LH (GRAY) 1 -
31 01551-1025A-000
SUB: 01551-10253-000		 BOLT 8 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
