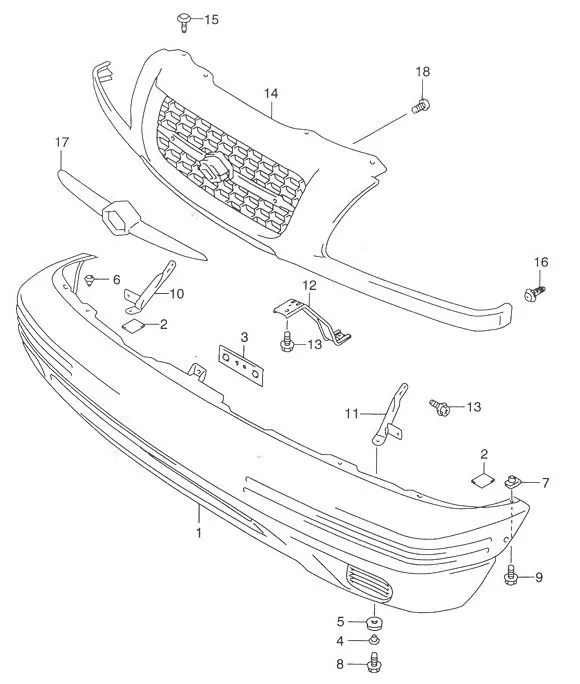

FIG.72 FRONT BUMPER

FIG.72 FRONT BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71711-65D00-799 BUMPER, FRONT (PRIMARY COAT) 1 Rp8.480.000 PAINT TO MATCH
2 DISCONTINUE
SUB: 51553-42AA0-000		 CUSHION 2 -
3 DISCONTINUE
SUB: 71771-56B00-000		 RETAINER, FRONT LICENSE PLATE 2 -
4 09169-06062-000 WASHER (6.3X17X1.6) 3 Rp16.500
5 DISCONTINUE
SUB: 09320-09502-000		 CUSHION 3 -
6 09409-07325-5PK CLIP (BLACK) 6 Rp18.000
7 DISCONTINUE
SUB: 71781-65D00-000		 NUT, FRONT BUMPER SIDE 2 -
8 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 3 Rp5.500
9 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 2 Rp5.500
10 DISCONTINUE
SUB: 71750-65D10-000		 STAY, FR BUMPER LOWER SIDE RH 1 -
11 DISCONTINUE
SUB: 71760-65D10-000		 STAY, FR BUMPER LOWER SIDE LH 1 -
12 DISCONTINUE
SUB: 71771-65D10-000		 STAY, FR BUMPER LOWER CENTER 1 -
13 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 6 Rp5.500
14 72111-65DA0-000 GRILLE, FRONT 1 Rp3.272.500 PAINT TO MATCH
15 09409M07L01-000
SUB: 09409M07332-000		 CLIP, UPPER 4 Rp5.000
16 09409-08322-000 CLIP, LOWER 5 Rp17.500
17 72112-65DA0-0PG GARNISH, FRONT GRILLE (CHROME) 1 Rp1.217.500
18 03541-0512A-000
SUB: 03541-05123L000		 SCREW 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
