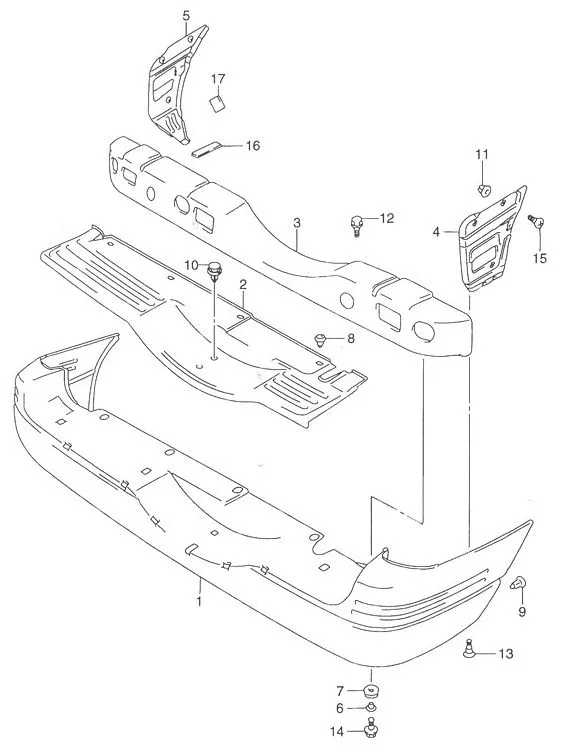

FIG.73 REAR BUMPER

FIG.73 REAR BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 71811-65D10-799		 BUMPER, REAR (PRIMARY COAT) 1 - PAINT TO MATCH
2 71812-65D01-5PK GARNISH, RR BUMPER (BLACK) 1 Rp1.458.500
3 DISCONTINUE
SUB: 71820-65D10-000		 MEMBER, REAR BUMPER 1 -
4 DISCONTINUE
SUB: 71831-65D00-000		 BRACKET, RR BUMPER SIDE RH 1 -
5 DISCONTINUE
SUB: 71841-65D00-000		 BRACKET, RR BUMPER SIDE LH 1 -
6 09169-06062-000 WASHER (6.3X17X1.6) 2 Rp16.500
7 DISCONTINUE
SUB: 09320-09502-000		 CUSHION 2 -
8 09409-07325-5PK CLIP (BLACK) 4 Rp18.000
9 09409M07L01-000
SUB: 09409M07332-000		 CLIP 4 Rp5.000
10 09409-08327-000 CLIP 2 Rp15.000
11 71851M70F00-000
SUB: 09148M06007-000		 NUT 6 Rp4.000
12 01551-0816C-000
SUB: 01551-08163-000		 BOLT 4 Rp13.500
13 09122-66007-000
SUB: 09122-66004-000		 SCREW (6X14) 2 Rp19.500
14 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 2 Rp5.500
15 03241-0616C-000
SUB: 03242-06163-000		 SCREW 6 Rp17.000
16 DISCONTINUE
SUB: 71881-65D01-000		 PAD, REAR BUMPER SIDE 4 -
17 DISCONTINUE
SUB: 71882-65D00-000		 PAD, REAR BUMPER SIDE 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
