ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

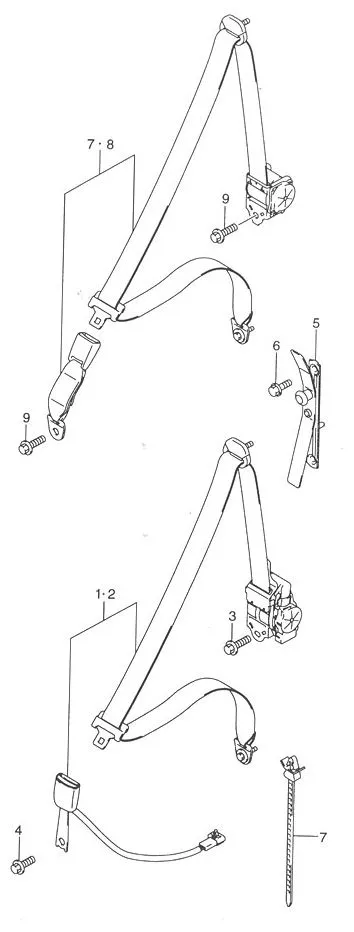

FIG.97 SEAT BELT

FIG.97 SEAT BELT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 84901-82DM0-LA5		 BELT ASSY, FRONT RH 1 -
2 DISCONTINUE
SUB: 84902-82DM0-LA5		 BELT ASSY, FRONT LH 1 -
3 09103-11001-000 BOLT 2 Rp25.000
4 09117M11002-000
SUB: 09117-11001-000		 BOLT, BUCKLE 2 Rp19.000
5 84990-65D10-6GS ADJUSTER, BELT SHOULDER (GRAY) 2 Rp774.000
6 09103-11001-000 BOLT 4 Rp25.000
7 DISCONTINUE
SUB: 84904-82DL0-LA5		 BELT ASSY, REAR RH 1 -
8 DISCONTINUE
SUB: 84905-82DL0-LA5		 BELT ASSY, REAR LH 1 -
9 09103-11001-000 BOLT (11X22) 8 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
