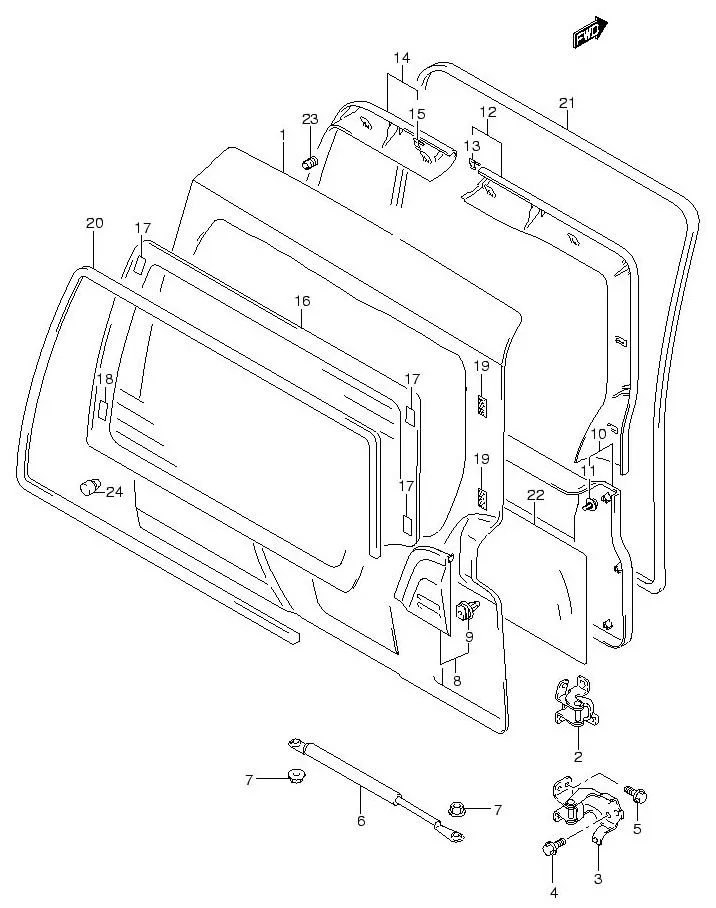

FIG.94 BACK DOOR PANEL

FIG.94 BACK DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 69100-52831-000		 PANEL ASSY, BACK DOOR 1 -
2 DISCONTINUE
SUB: 69510-65D00-000		 HINGE, DOOR UPPER 1 -
3 DISCONTINUE
SUB: 69520-65D20-000		 HINGE, DOOR LOWER 1 -
4 01551-0825A-000
SUB: 01551-08253-000		 BOLT, PILLAR 6 Rp16.000
5 01551-0825A-000
SUB: 01551-08253-000		 BOLT, DOOR 6 Rp16.000
6 81851-65D00-000 UNIT, BACK DOOR BALANCER 1 Rp1.125.000
7 09159-06076-000 NUT 2 Rp19.500
8 83940-65D10-5PK COVER, DOOR HINGE (BLACK) 1 Rp273.000
9 83942-65D00-000 •CLIP, GARNISH 2 Rp34.500
10 DISCONTINUE
SUB: 83770-65D00-P4Z		 TRIM, BACK DOOR (GRAY) 1 -
11 83714M62B00-000
SUB: 09409M08320-000		 •CLIP 12 Rp14.500
12 DISCONTINUE
SUB: 83780-65D00-6GS		 TRIM, BACK DR UPPER RH (GRAY) 1 -
13 09409-10308-000
SUB: 09409B10308N000		 •CLIP 4 Rp6.500
14 DISCONTINUE
SUB: 83790-65D00-6GS		 TRIM, BACK DR UPPER LH (GRAY) 1 -
15 09409-10308-000
SUB: 09409B10308N000		 •CLIP 4 Rp6.500
16 DISCONTINUE
SUB: 84580-65D00L000		 GLASS, BACK DR WINDOW 1 -
17 DISCONTINUE
SUB: 84512-65D00-000		 •MALE, GLASS FASTENER NO.1 2 -
18 84513-65D00-000 •MALE, GLASS FASTENER NO.2 2 Rp44.500
19 84515-65D00-000 FEMALE, GLASS FASTENER 4 Rp45.500
20 84623-65D00-5PK MOLDING, BACK DR WINDOW (BLACK 1 Rp1.355.500
21 84681-65D00-5PK WEATHERSTRIP, BACK DOOR OPNG (BLACK) 1 Rp1.170.000
22 83911-60X52-000
SUB: 83911-60X51-000		 COVER, DOOR SEALING (600X1200) 1 Rp111.000 CUT AS REQUIRED
23 82683M60B00-000
SUB: 76683-70C00-000		 CUSHION 1 Rp8.500
24 DISCONTINUE
SUB: 76684-65D00-000		 STOPPER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
