ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

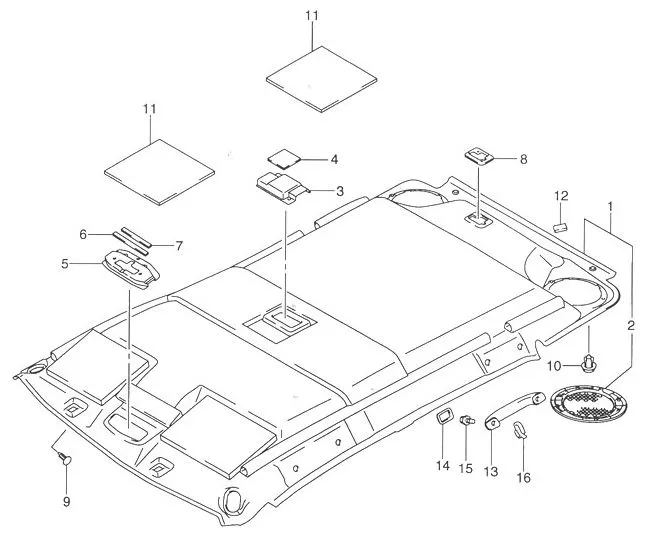

FIG.83 ROOF LINING

FIG.83 ROOF LINING
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 78110-65D71-6GS		 HEADLINING ASSY, ROOF (GRAY) 1 -
2 DISCONTINUE
SUB: 78121-65D10-6GS		 •COVER, SPEAKER (GRAY) 2 -
3 DISCONTINUE
SUB: 78131-65D10-000		 RETAINER, ROOM LAMP 1 -
4 DISCONTINUE
SUB: 78133-65D00-000		 TAPE, ROOM LAMP 1 -
5 DISCONTINUE
SUB: 78141-65D20-000		 RETAINER, MAP LAMP 1 -
6 DISCONTINUE
SUB: 78143-65D00-000		 PAD, MAP LAMP NO.1 1 -
7 DISCONTINUE
SUB: 78144-65D00-000		 PAD, MAP LAMP NO.2 1 -
8 DISCONTINUE
SUB: 78112-74F00-000		 RETAINER, LUGGAGE LAMP 1 -
9 DISCONTINUE
SUB: 09409-06310-6GS		 CLIP (GRAY) 2 -
10 DISCONTINUE
SUB: 09409-06322-6GS		 CLIP (GRAY) 3 -
11 DISCONTINUE
SUB: 78162-65D00-000		 SHEET, ROOF SILENCER 2 -
12 DISCONTINUE
SUB: 78129-65D00-000		 PAD, HEADLINING NO.6 2 -
13 76411-50E00-6GS GRIP, ASSISTANT (GRAY) 3 Rp206.000
14 DISCONTINUE
SUB: 76412-50E00-6GS		 CAP, ASSISTANT GRIP (GRAY) 6 -
15 02162-0620A-000
SUB: 02162-0620C-000		 BOLT 6 Rp5.500
16 DISCONTINUE
SUB: 76421-60G00-6GS		 HOOK, COAT HANGER (GRAY) 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
